92 H-S81-HS Installation & Operation Manual — P/N LS10114-000HI-E:A 2/24/2015

Parts of the H-S81-HS System Termination modules

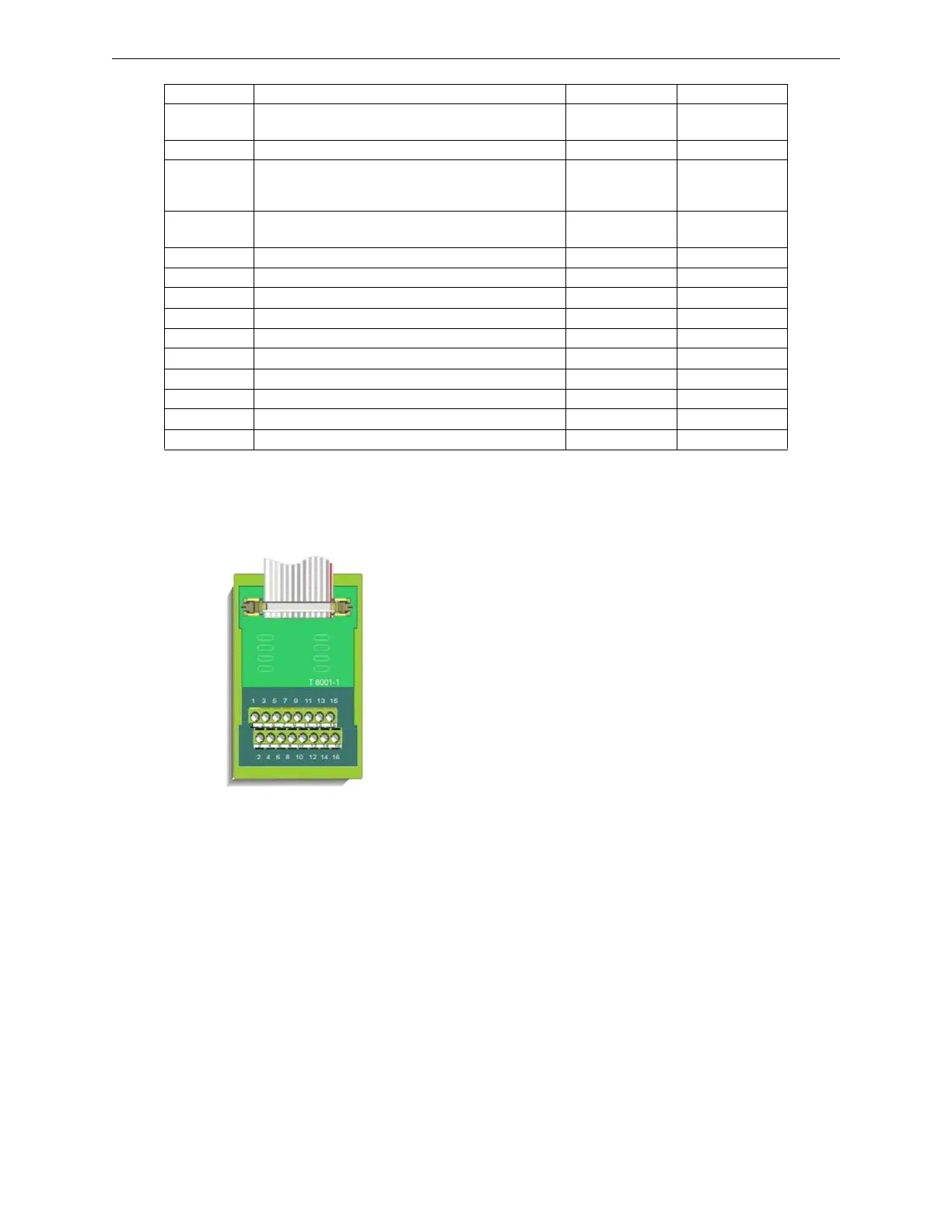

2.5.1 S81-T8001-1

Description

16-terminal termination module. It is used with S81-E2001-1 type buses

to terminate the following modules: S81-F3002-1, S81-F5002-1, S81-

F5003-1

Technical Features

S81-F4003-2 Module with 8 x 4-20mA analog inputs Not available S81-CCT3R1

S81-F5001-1 Module with 8 x 500mA monitored outputs S81-T8006-1

S81-T8003-1

S81-CCT3

S81-F5001-2 Module with 8 x 500mA monitored outputs Not available S81-CCT3R

S81-F5002-1 Module with 16 x 250mA non monitored outputs S81-T8007-1

S81-T8007-2

S81-T8001-1

S81-CCT1

S81-T8007-1

S81-T8007-2

S81-F5003-1 Module with 8 x 250mA monitored outputs for sounders S81-T8001-1

S81-T8008-1

S81-CCT1

S81-T8008-1

S81-F5004-1 Module with 4 x 2A monitored outputs for solenoids Not available S81-CCT4

S81-F5004-2 Module with 4 x 2A monitored outputs for solenoids Not available S81-CCT4R

S81-F6001-1 Module for fire extinguishing systems Not available Not available

S81-F6002-1 Logic module Not available Not available

S81-F7002-1 Loop control module with ESP protocol S81-T8003-1 S81-CCT4

S81-F7006-1 Modbus RTU Master/Slave module S81-T8003-1 S81-CCT6

S81-F7007-1 Loop control module with SSP protocol S81-T8003-1 S81-CCT4

S81-F7008-1 Control modules for weighing modules S81-T8003-1 S81-CCT6

S81-F7009-1 Loop control module with XP95/Discovery protocol S81-T8003-1 S81-CCT4

S81-F7010-1 Loop control module with System Sensor protocol S81-T8003-1 S81-CCT4

1 Combined with the S81-T8005-1 termination module

2 Combined with the S81-T8001-1 termination module

• Number of terminals: 16

• Assembly: on DIN bar

• Dimensions: W 57 x H 77 x D 50 mm
