Honeywell UDC2800 - Page 65

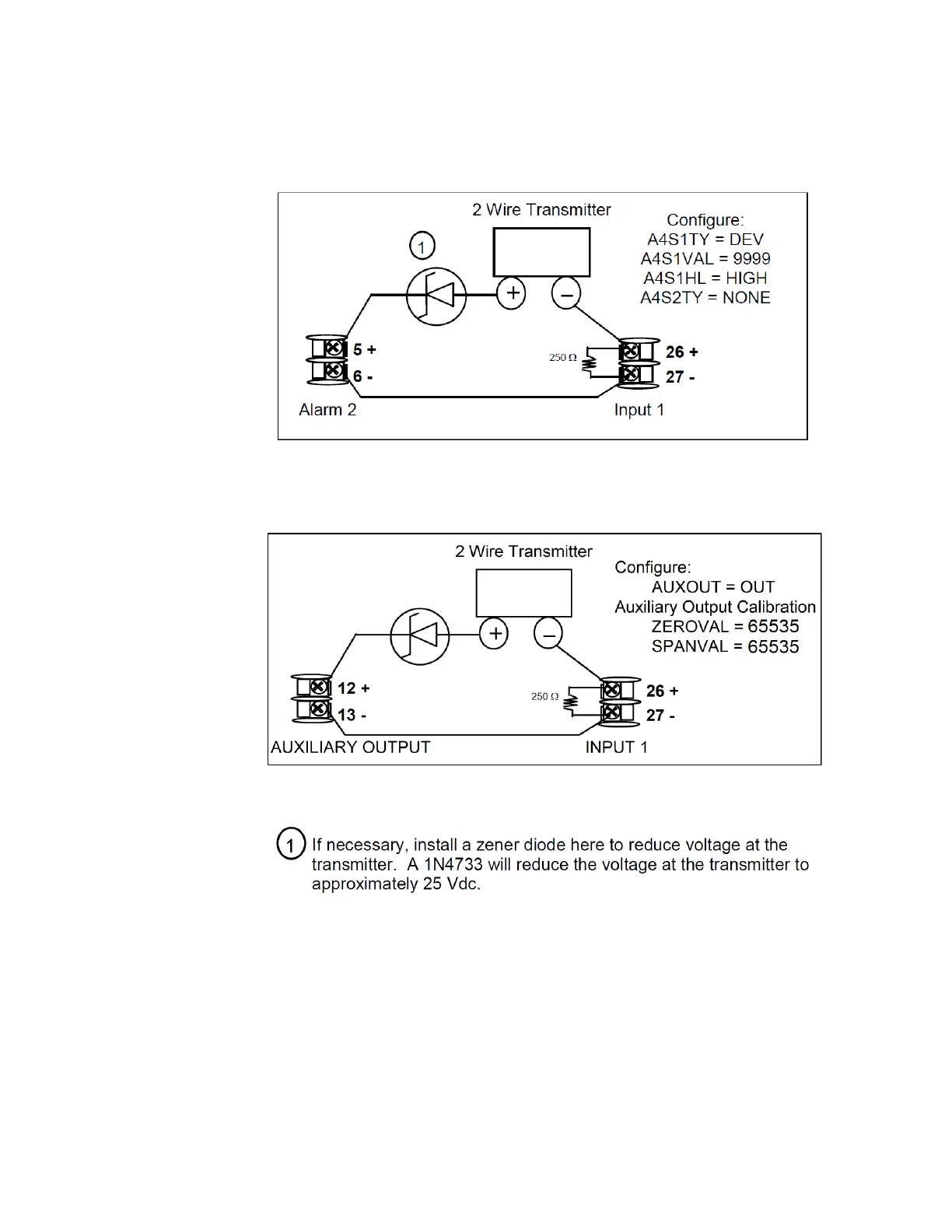

Figure 3-16: Transmitter Power for 4-20 mA — 2 wire Transmitter
Using Open Collector Alarm 2 A2S1TY Deviation Output
Figure 3-17: Transmitter Power for 4-20 mA — 2 Wire Transmitter
Using Auxiliary Output
65
Chapter 3 - Installation
