Keysight N9038A Service Guide

500 Keysight N9038A MXE Service Guide
Replaceable Parts
Hardware

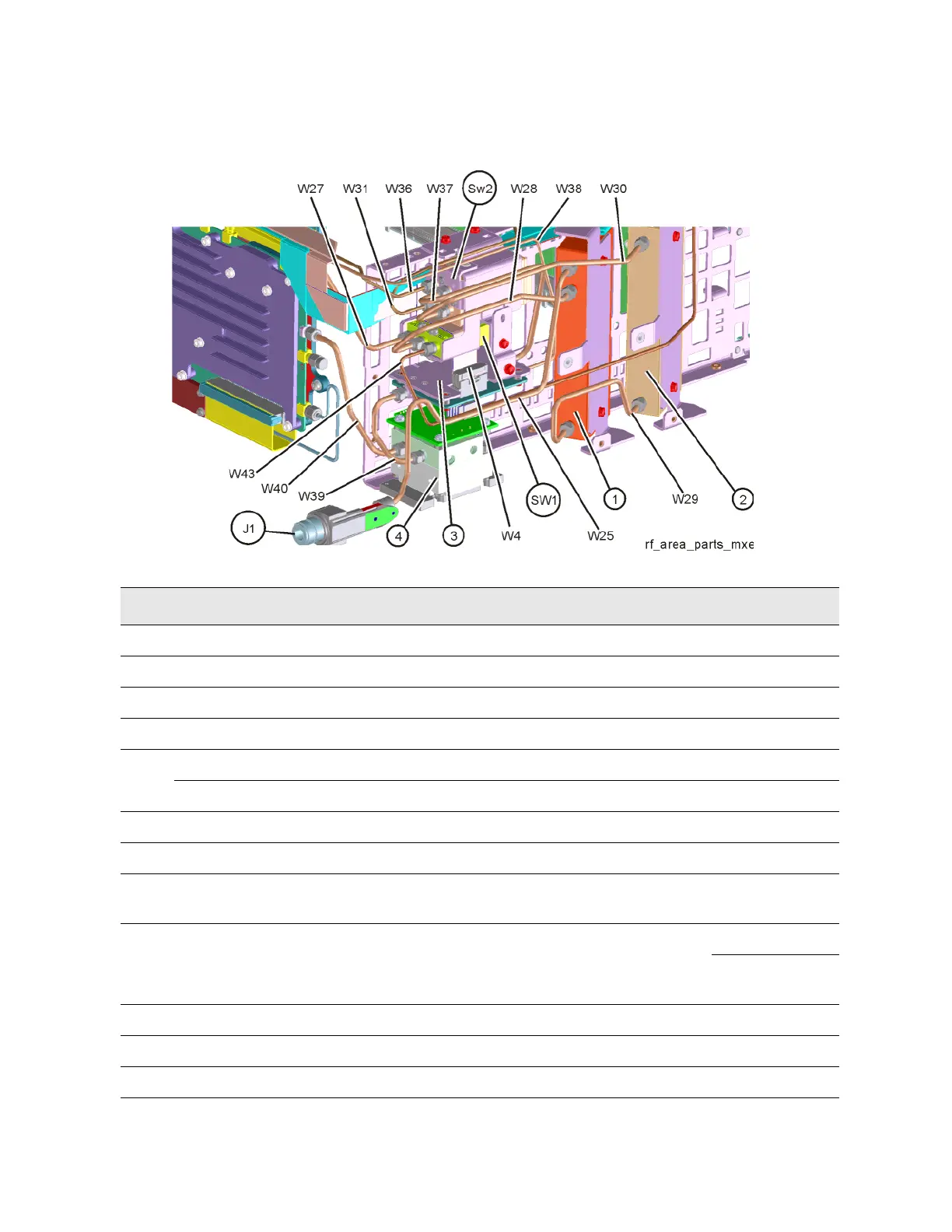

Figure 17-6 RF Area - Option 503, 508, & 526
Item Description Part Number
1 A9 RF Attenuator 33360-60008
2 A10 RF Attenuator 33321-60083
3 A11 RF Switch/High Band Preamp Assembly E4410-60170
4 A12 YIG Tuned Filter (YTF) 5087-7382
J1 Type-N Input Connector Assembly (Standard) N9038-60021
3.5 mm Input Connector Assembly (Option C35) N9038-60019
SW1 Cal Switch, SPDT Unterminated Latching, 3-Port N1810-60077
SW2 Transfer Switch, DC-26.5 GHz, 4-Port 87222-60026
W4 Cable, Ribbon, Front End Control (A15) J700 to RF Switch/High Band Preamp
(A11) J4
E4410-60160
W25 Cable, Semi-Rigid, RF Input 1 (J1) to Atten A (A9) Port 1
Standard
Option C35
N9038-21302
N9038-21312
W27 Cable, Semi-Rigid, Limiter Assy (A23) J103 to Coaxial Switch (SW1) Port 1 N9038-21301
W28 Cable, Semi-Rigid, Coaxial Switch (SW1) Port C to Atten A (A9) Port 2 N9038-21303
W29 Cable, Semi-Rigid, Atten A (A9) Port 3 to Atten B (A10) Port 2 N9020-20025
