Keysight N9038A MXE Service Guide 513
Replaceable Parts
Hardware

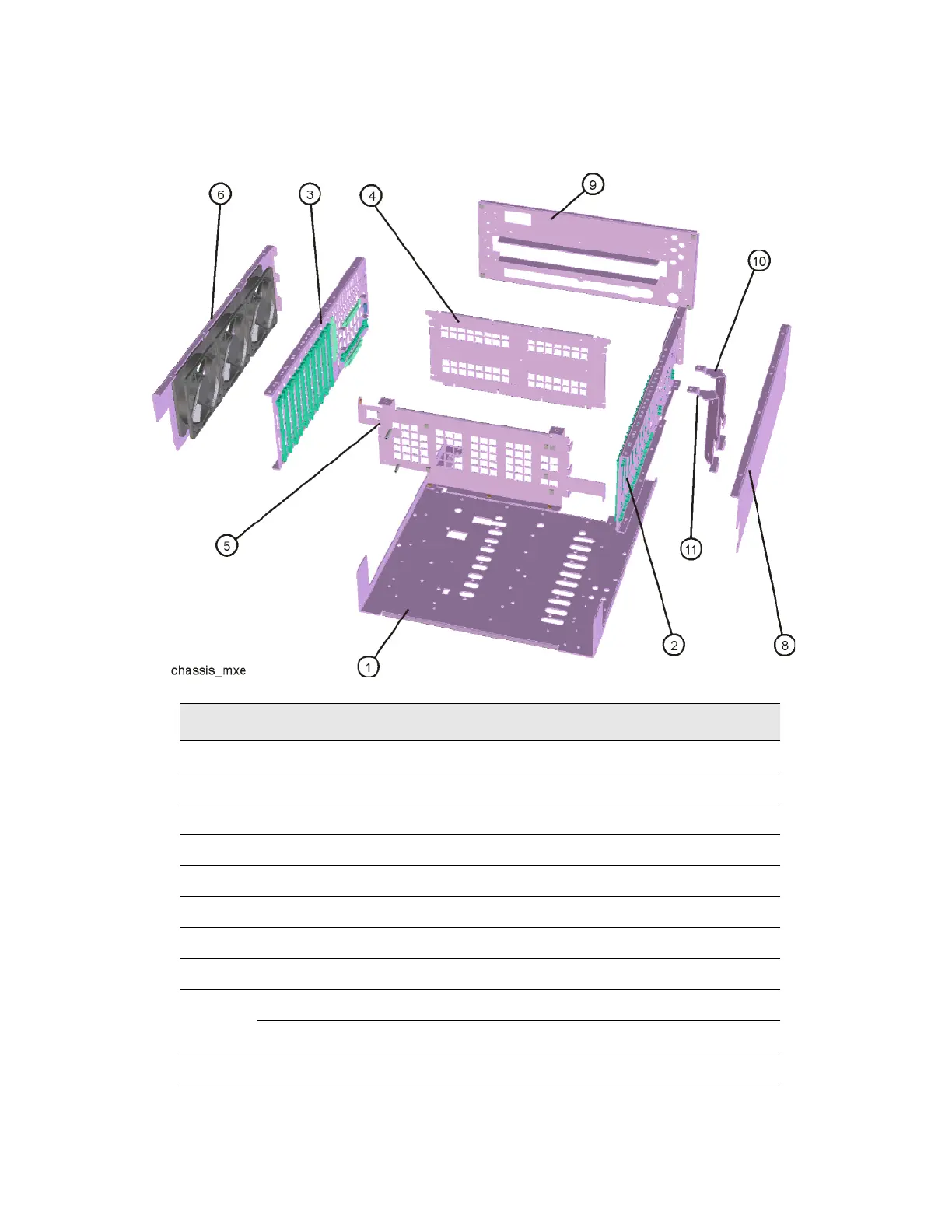

Figure 17-17 Chassis
Item Description Part Number
1 MP1 Chassis Base N9038-00015
2 MP4 Chassis Side, Right (inner) W1312-00116
3 MP2 Chassis Side, Left (inner) W1312-00117
4 MP7 Chassis, Midplane Bracket W1312-00048
5 MP8 Chassis, Front Bracket N9038-00003
6 MP3 Chassis Side, Left (outer) - Fan Bracket W1312-00118
7 MP5 Chassis Side, Right (outer) N9020-00014
8 MP6 Rear Panel N9038-00100
9 MP19 Bracket, Attenuator A (Option 503, 508, & 526) E4449-00103
MP19 Bracket, Attenuator A and B (Option 544) N9038-01202
10 MP20 Bracket, Attenuator B (Option 503, 508, & 526) E4449-00103
