512 Keysight N9038A MXE Service Guide
Replaceable Parts
Hardware

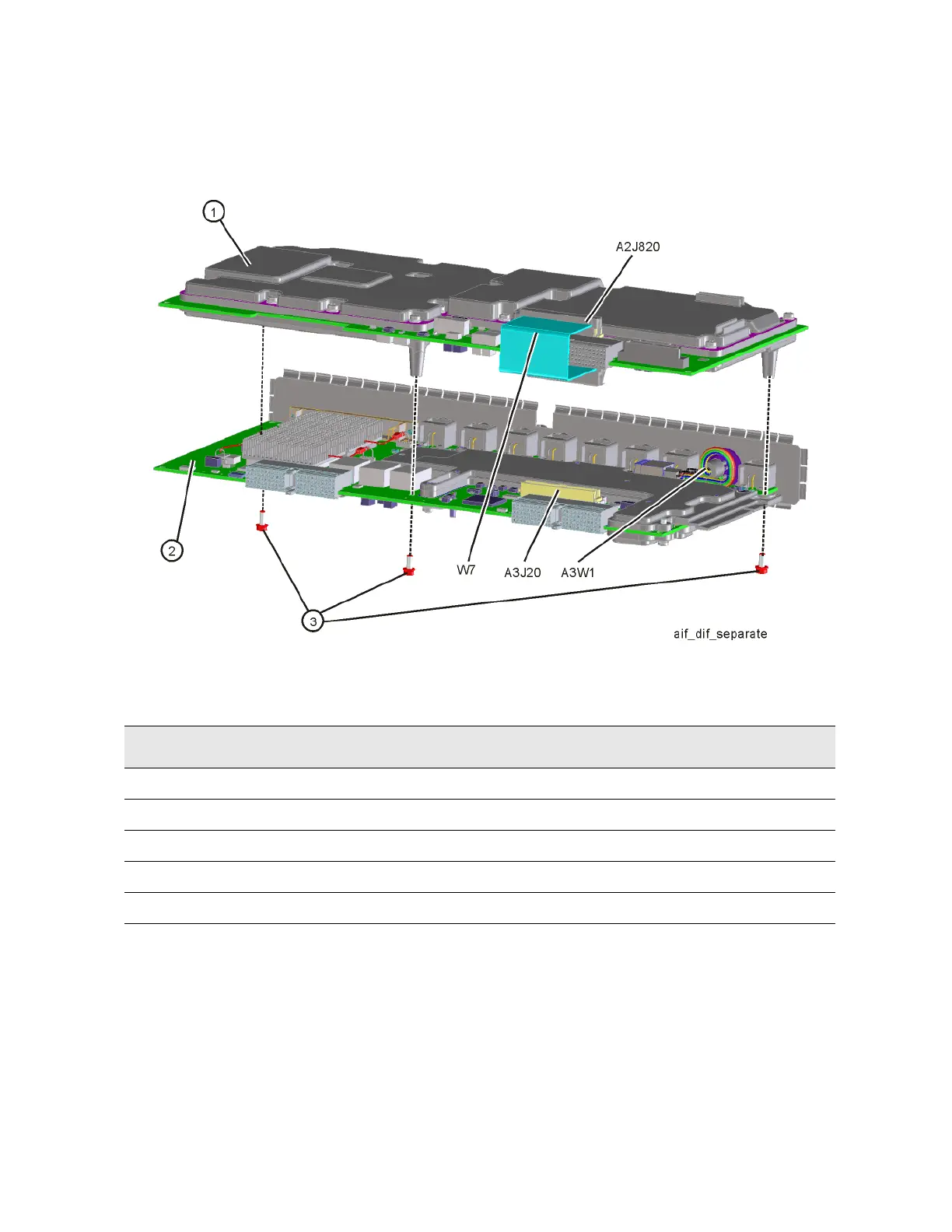

Figure 17-16 AIF/DIF Assemblies
Item Description
Part Number
a
1 A2 Analog IF Assembly N9020-60011
2 A3 Digital IF Assembly N9038-60116
3Screw, M3 X 0.5 (8 mm) 0515-0372
W7 Cable, Ribbon, Digital IF (A3) J100 to Analog IF (A2) J820 E4410-60162
A3W1 Cable Assembly, Wire Harness, Smart Noise Source N9020-60090
a. Most current part numbers shown. See Table 17-1 for complete list of part numbers for older
instruments.
To Next Page
