Keysight N9038A Service Guide

526 Keysight N9038A MXE Service Guide
Replaceable Parts
Hardware

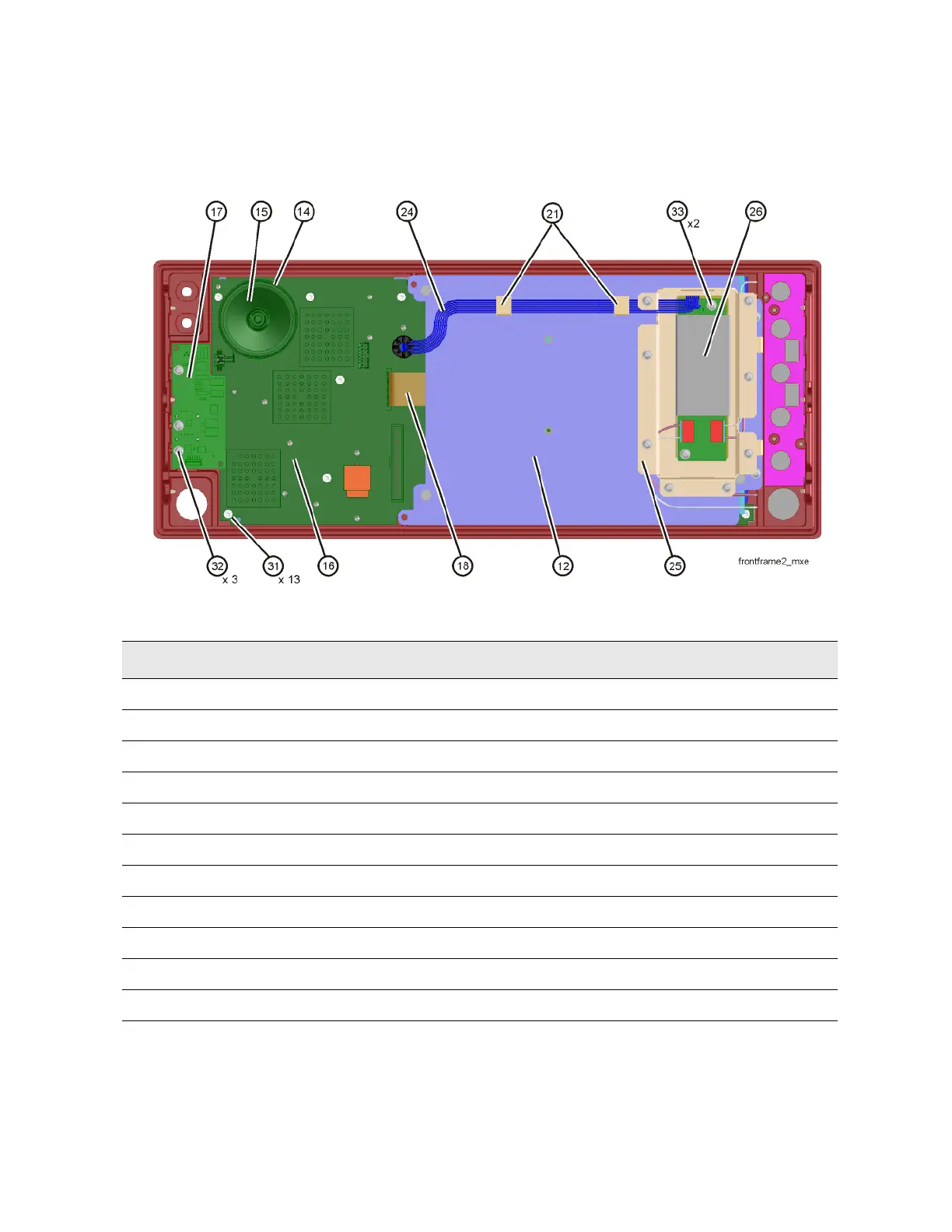

Figure 17-28 Front Frame Parts (shields off) - CCFL Backlight
Item Description Part Number
12 A1MP14 Display Bracket W1312-00115
14 A1A2MP2 Speaker Foam N9038-40088
15 A1A2MP1 Speaker 9164-0453
16 A1A2 Front Panel Interface Board W1312-63092
17 A1A5 Front Panel Daughter Board N9038-63005
18 A1W1 Flex Circuit, Front Panel Interface to LCD W1312-60010
21 A1MP10-13 Cable Clamp 1400-1439
24 A1W2 Cable Assembly, Wire Harness, Front Panel Interface to Backlight Power Supply W1312-60113
25 A1MP17 Shield, Inverter Assembly, Bottom N9020-00011
26 A1A4 Display Backlight Power Supply 0950-4635
31 Screw M3 X 0.5 (5 mm) 0515-1521
