Replaceable Parts
Hardware

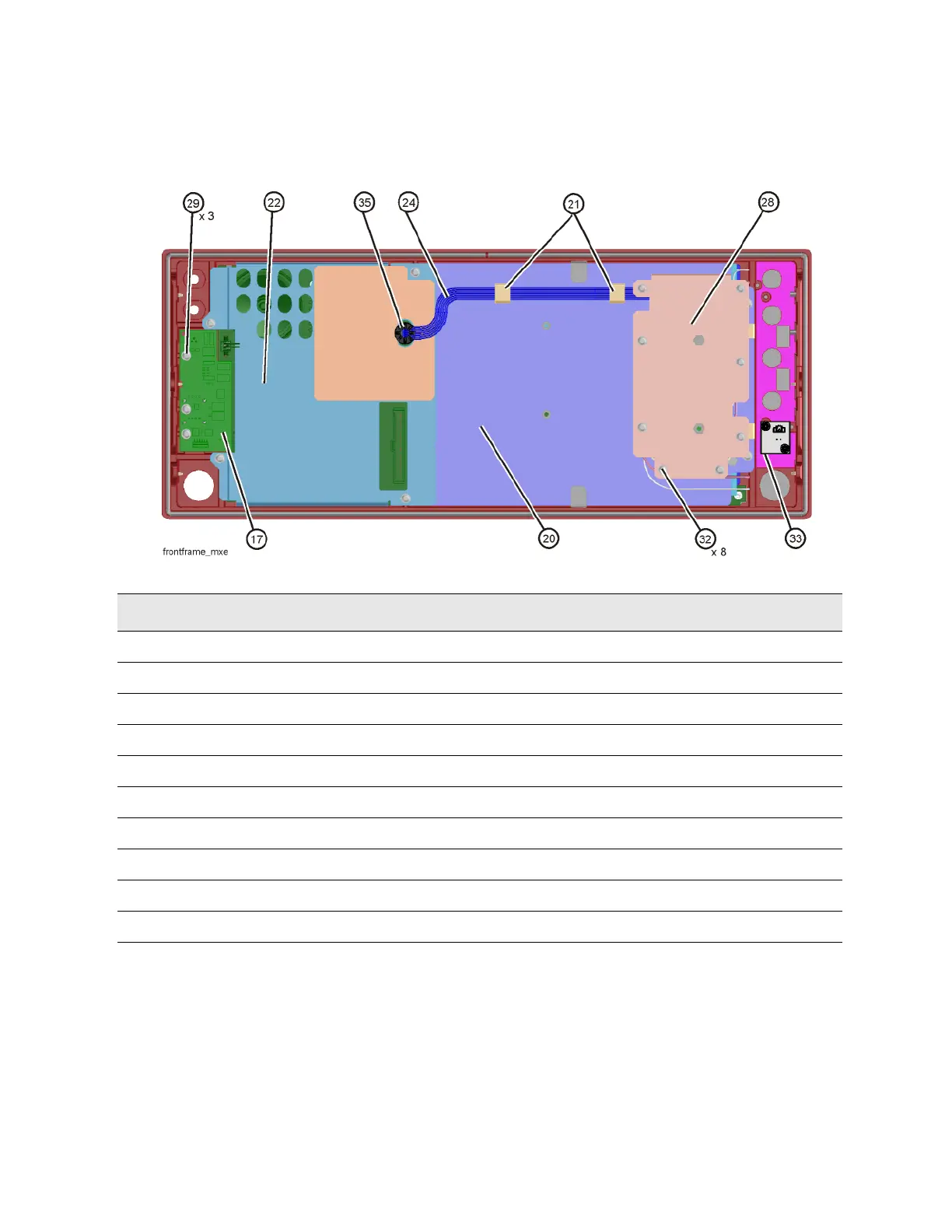

Figure 17-27 Front Frame Parts - CCFL Backlight
Item Description Part Number
17 A1A5 Front Panel Daughter Board N9038-63005
20 A1MP14 Display Bracket W1312-00115
21 A1MP10-13 Cable Clamp 1400-1439
22 A1MP19 Shield, Front Panel Interface N9020-00051
24 A1W2 Cable Assembly, Wire Harness, Front Panel Interface to Backlight Power Supply W1312-60113
28 A1MP16 Shield, Inverter Assembly, Top N9020-00010
29 Screw M3 X 0.5 (8 mm) 0515-0372
32 Screw M3 X 0.5 (8 mm) 0515-0372
33 A1A6 Input 2 LED Board N9038-63006
35 A1MP6 Grommet, A1W2 0400-0333
