Kodiak 100 Series User Manual

Pilot’s Operating Handbook
7-15
DO NOT USE FOR FLIGHT OPERATIONS
Section 7
AIRPLANE & SYSTEMS DESCRIPTIONS
100 SERIES
Systems

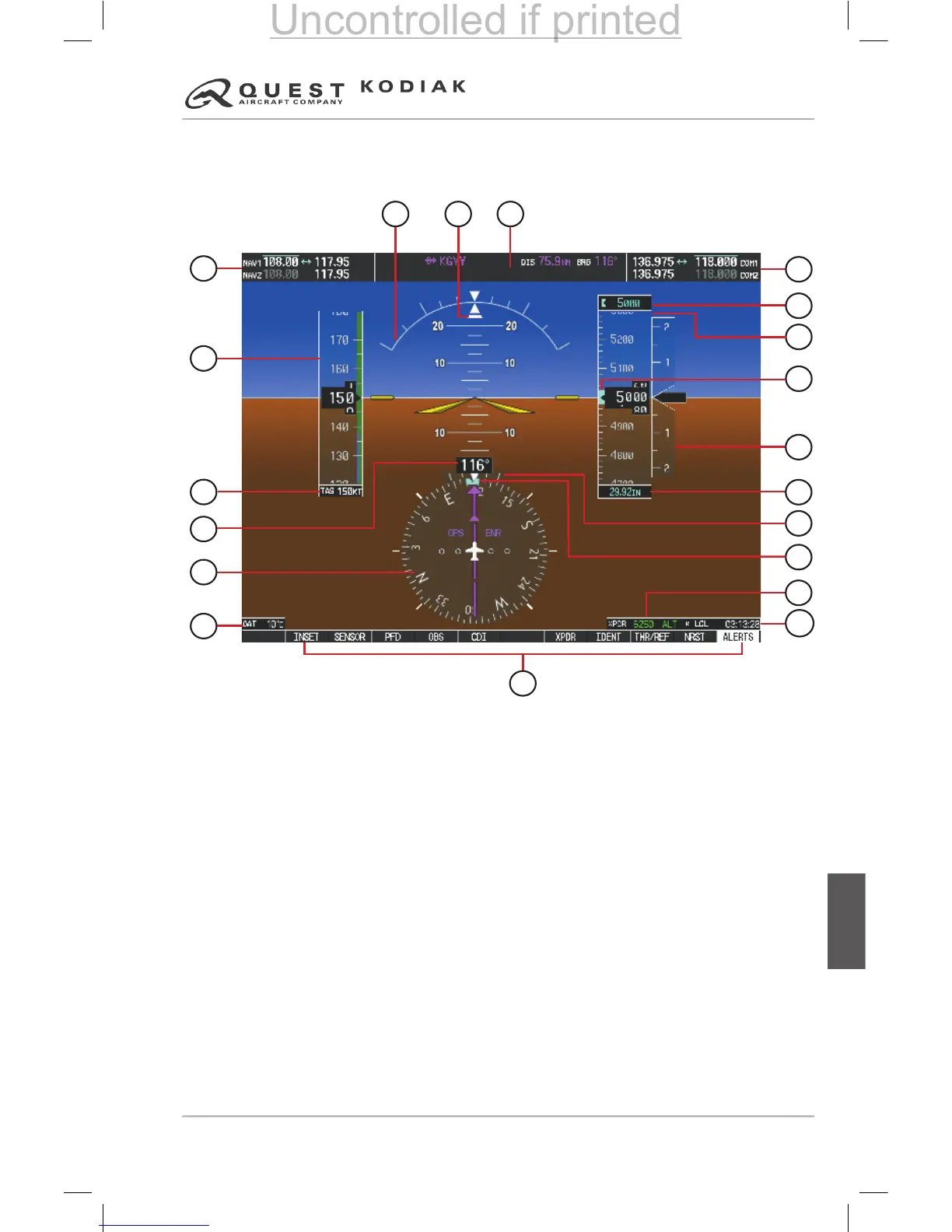

Figure 7-6 – G1000 Primary Flight Display (Default)
3
16
4
11
15
7
6
20
13
18
19
12
14
17
8
9
2
1
10
5
1. NAV Frequency Box
2. Airspeed Indicator
3. True Airspeed
4. Current Heading
5. Horizontal Situation Indicator (HSI)
6. Outside Air Temperature (OAT)
7. Softkeys
8. System Time
9. Transponder Data Box
10. Heading Bug
11. Turn Rate Indicator
12. Barometric Altimeter Setting
13. Vertical Speed Indicator (VSI)
14. Reference Altitude Bug
15. Altimeter
16. Reference Altitude
17. COM Frequency Box
18. Navigation Status Box
19. Slip/Skid Indicator
20. Attitude Indicator
For more information on the G1000 displays and operations, refer to the
Garmin G1000 Cockpit Reference Guide (190-00645-XX) and the Garmin
G1000 Pilot’s Guide (190-00590-XX) for the Quest KODIAK 100.
Uncontrolled if printed

Kodiak 100 Series Specifications

General

Manufacturer	Daher
Engine	Pratt & Whitney Canada PT6A-34
Service Ceiling	25, 000 feet
Seating Capacity	10
Crew	1-2
Range	1, 132 nautical miles
Type	Utility aircraft
Length	34 feet 2 inches
Wingspan	45 feet
Max takeoff weight	7, 255 pounds
Power Output	750 shp
Cabin Width	4 feet 6 inches
