Kodiak 100 Series User Manual

Pilot’s Operating Handbook
7-16
DO NOT USE FOR FLIGHT OPERATIONS
Section 7
AIRPLANE & SYSTEMS DESCRIPTIONS
100 SERIES
Systems
6
1
2
8
7
9
5
10
4
3
11
12
13
NOTE: The selected heading and selected course windows (2 and 9)
close after being shown for 3 seconds.

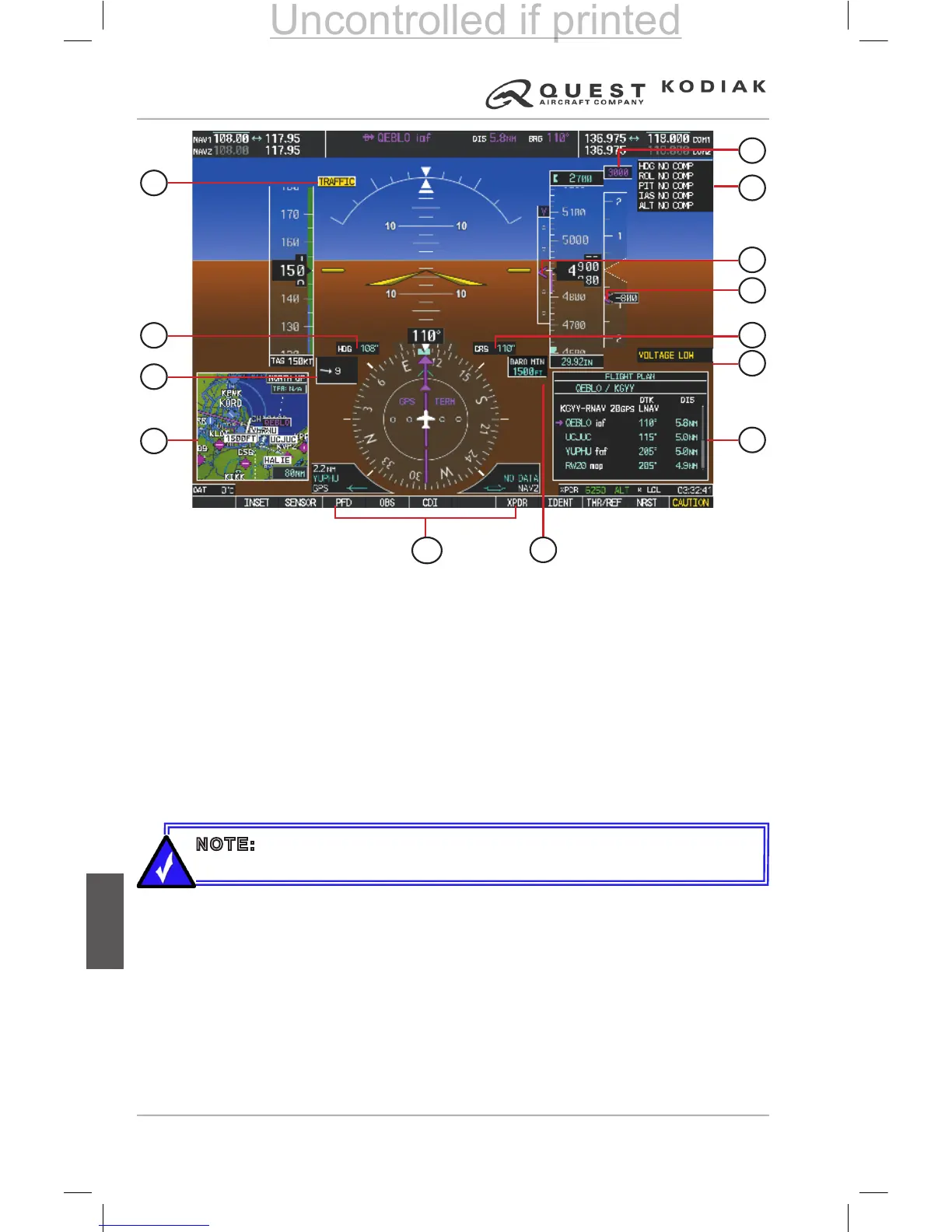

Figure 7-7 – G1000 Primary Flight Display (Additional Information)
1. Trafc Annunciation
2. Selected Heading
3. Wind Data Box
4. Inset Map
5. Bearing Information Windows
6. Minimum Descent Altitude/
Decision Height
7. Flight Plan Window
8. Annunciation Window
9. Selected Course
10. Required Vertical Speed
Indicator
11. Vertical Deviation Indication
12. Comparator Window
13. VNV Target Altitude
Uncontrolled if printed

Kodiak 100 Series Specifications

General

Manufacturer	Daher
Engine	Pratt & Whitney Canada PT6A-34
Service Ceiling	25, 000 feet
Seating Capacity	10
Crew	1-2
Range	1, 132 nautical miles
Type	Utility aircraft
Length	34 feet 2 inches
Wingspan	45 feet
Max takeoff weight	7, 255 pounds
Power Output	750 shp
Cabin Width	4 feet 6 inches
