Pilot’s Operating Handbook
7-144
DO NOT USE FOR FLIGHT OPERATIONS
Section 7
AIRPLANE & SYSTEMS DESCRIPTIONS
100 SERIES
Systems
Trafc Information Service (TIS) Annunciations
Trafc Map Page Annunciation Description
NO DATA
Data is not being received from the transponder*
DATA FAILED
Data is being received from the transponder, but
a failure is detected in the data stream*
FAILED
The transponder has failed*
UNAVAILABLE
TIS is unavailable or out of range
* Contact a service center or Garmin dealer for corrective action

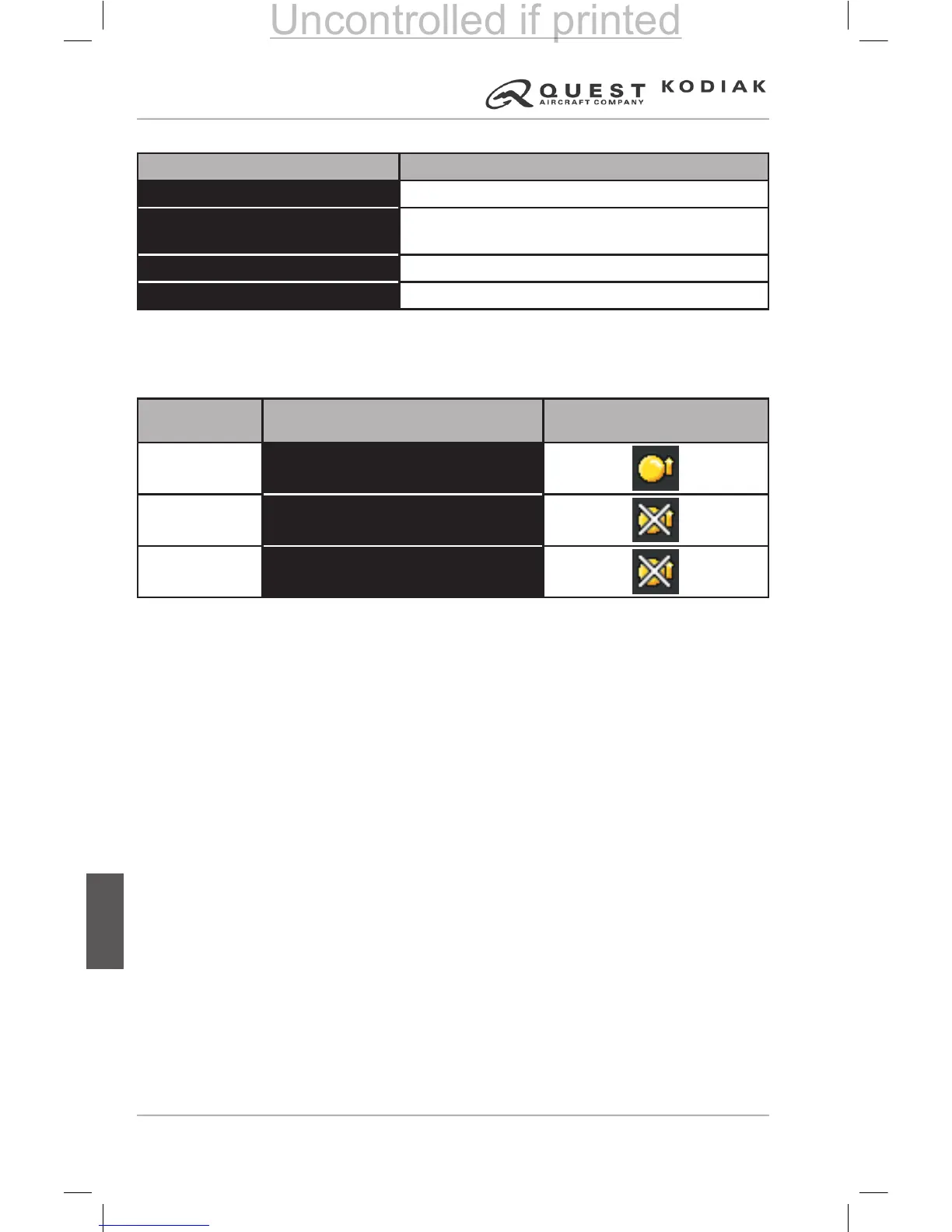

Figure 7-97 – TIS System Annunciations
Mode
Trafc Mode Annunciation
(Trafc Map Page)
Trafc Display Enabled Icon
(Other Maps)
TIS Operating
OPERATING
TIS Standby
STANDBY
(also shown in white in center of page)
TIS Failed
FAIL
Figure 7-98 – TIS System Status Annunciations
