260

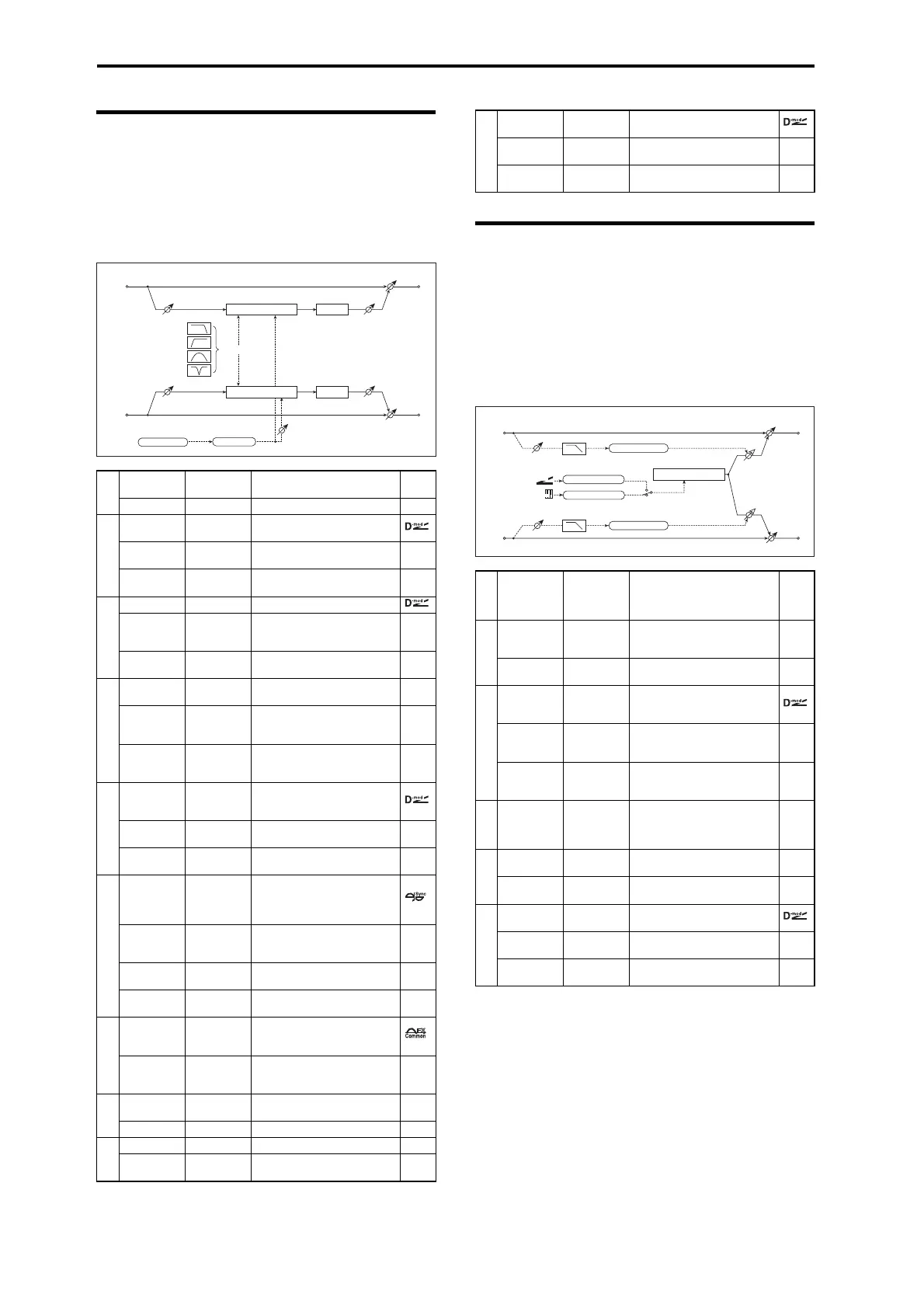

015: Multi Mode Filter (Stereo
Multi Mode Filter)
This is a multi‐mode filter with four types; low pass, high
pass, band pass, and band reject. You can use LFO or
dynamic modulation to vary the cutoff frequency or
resonance.
016: St. Sub Oscillator (Stereo
Sub Oscillator)
This effect adds very low frequencies to the input signal. It is
very useful when simulating a roaring drum sound or
emphasizing powerful low range. This effect is different
from the equalizer in that you can add very low range
harmonics. You can also adjust the oscillator frequency to
match a particular note number, for use as an octaver.
a: OSC Mode
b: Note Interval
b: Note Fine
The OSC Mode parameter selects the oscillator operation
mode. When Note (Key Follow) is selected, the oscillator’s
frequency is determined based on the note number,
allowing you to use it as an octaver. The Note Interval
parameter sets the pitch offset from the original note
number by semitone steps. The Note Fine parameter allows
you to fine‐tune in steps of cents.
d: Envelope Pre LPF
This parameter sets the upper limit of the frequency range to
which very low harmonics are added. Adjust this parameter
a
Type
LPF, HP F, B P F,
BRF
Selects the type of filter
Trim 0...100 Sets the input level
b
Cutoff 0...100
Sets the cutoff frequency (center
frequency)
Src Off...Tempo
Selects the modulation source of
the cutoff
Amt –100...+100
Sets the modulation amount of
the cutoff
c
Resonance 0...100 Sets the resonance amount
Src Off...Tempo
Selects the source that will
modulate the amount of
resonance
Amt –100...+100
Sets the amount by which the
resonance will be modulated
d
LFO
Waveform
Triangle, Sine Selects the LFO Waveform
Phase [deg] –180...+180
Sets the LFO phase difference
between the left and right
p.259
Depth 0...100
Sets the depth to which the LFO
will modulate the cutoff
frequency
e
LFO
Frequency
[Hz]
0.02...20.00 Sets the speed of the LFO p.259
Src Off...Tempo
Selects a modulation source for
LFO speed
Amt
–20.00...
+20.00
Sets the modulation amount of
LFO speed
f
MIDI Sync Off, On
When this is on, the LFO speed is
set by BPM, Base Note, and
Times, instead of Frequency
p.257
BPM
MIDI,
40.00...
300.00
MIDI syncs to the system tempo;
40–300 sets the tempo manually
for this individual effect p.257
Base Note ...
Selects the type of notes that
specify the LFO speed p.257
Times x1...x32
Sets the number of notes that
specify the LFO speed p.257
g
LFO Type
Individual,
Common1,
Common2
Selects either (individual) LFO,
Common FX LFO1, or Common
LFO2 p.257
Common
LFO Offset
[deg]
–180...+180
Sets the phase offset when Type
= Common 1 or Common 2
p.257
h
Drive SW Off, On
Switches distortion on/off within
the filter
Output Level 0...100 Sets the output level
i
Drive Gain 0...100 Sets the distortion amount
Low Boost 0...100
Sets the amount of low-range
boost
Left
Right
Wet / Dry
Wet / Dry
Stereo In - Stereo Out
Multimode Filter Driver
Driver
Trim Output
OutputTrim
LFO Phase
LFO: Tri / Sine
LFO Shape
LPF
HPF
BPF
BRF
Filter Type
Multimode Filter
j
Wet/Dry
Dry, 1 : 99...
99 : 1, Wet
Sets the balance between the
effect and the dry input
Src Off...Tempo
Selects a modulation source for
Wet/Dry
Amt –100...+100
Sets the modulation amount for
Wet/Dry
a OSC Mode
Note (Key
Follow), Fixed
Determines whether the oscil-
lator frequency follows the note
number or whether it is fixed
p.260
b
Note Interval –48...0
Sets the pitch difference from
the note number when OSC
Mode=Note (Key Follow) p.260
Note Fine –100...+100
Fine adjustment of the oscillator
frequency p.260
c
Fixed
Frequency
[Hz]
10.0...80.0
Sets the oscillator frequency
when OSC Mode=Fixed
Src Off...Tempo
Selects the modulation source
for the oscillator frequency when
OSC Mode=Fixed
Amt –80...+80
Sets the oscillator frequency
modulation amount when OSC
Mode=Fixed
d
Envelope Pre
LPF
1...100
Sets the upper limit of the
frequency range for which very
low harmonics are added
p.260
e
Envelope
Sens
0...100
Sets the sensitivity with which
very low harmonics are added
Envelope
Shape
–100...+100
Sets the oscillator’s volume
envelope curve
f
Wet/Dry
Dry, 1 : 99...
99 : 1, Wet
Sets the balance between the
effect and the dry input
Src Off...Tempo
Selects a modulation source for
Wet/Dry
Amt –100...+100
Sets the modulation amount for
Wet/Dry
Wet / Dry
Note No.
OSC Mode
Fixed
Note (Key Follow)
Sine Oscillator
Fixed Frequency
Pitch
Note Interval, Fine
Stereo In - Stereo Out
Left
Right
Wet / Dry
Envelope Sens
Envelope Shape
Envelope Shape
D
-mod
Pre LPF
Envelope Sens
Pre LPF
