Program mode
20

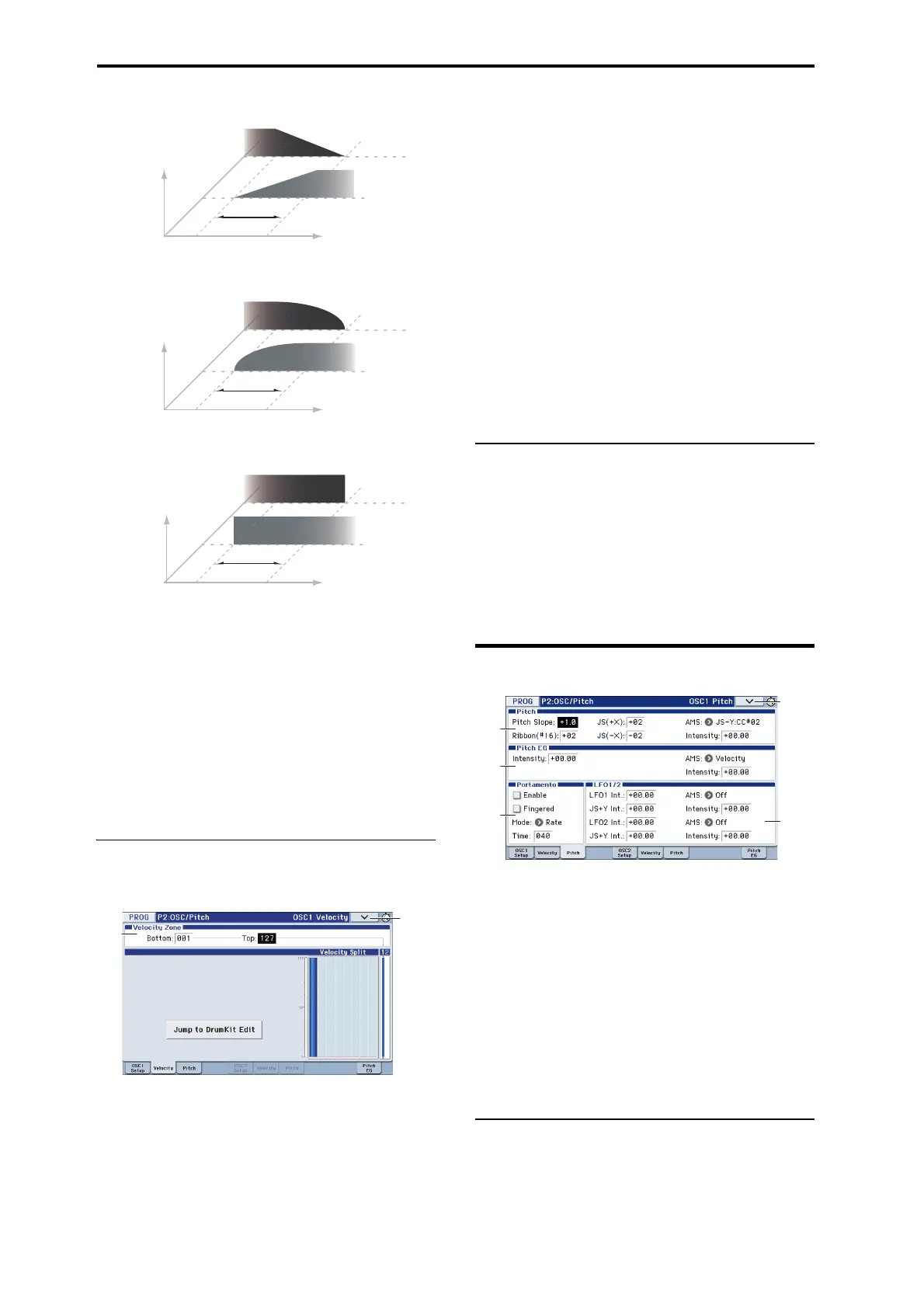

Crossfade Curves
Velocity Split Zone
This specifies the velocity zone for each of the oscillator's
eight multisamples. The meter shows the note‐on velocity
value.
Velocity Split
This shows the velocity zones for the oscillator’s eight
multisamples and for each oscillator.
The meter at the left indicates the note‐on velocity. This
allows you to verify the multisamples and oscillators that
will sound at each velocity (See “0–1e: Velocity Meter” on
page 5.).
2–2c: OSC1 Velocity
“Oscillator Mode” Drums, Double Drums
Velocity can be used to switch between the drum kits
sounded by oscillators 1 and 2. Here you can specify the
velocity zone for oscillator 1. The status of the settings will
be indicated in the graph on the right side of the screen. This
lets you edit settings while comparing them with the
velocity split graph.
Bottom [001...127]
This sets the lowest velocity at which the Oscillator 1 will
sound.
Top [001...127]
This sets the highest velocity at which the Oscillator 1 will
sound.
The OSC1 Top velocity must be greater than the OSC1
Bottom velocity.
Note: You can also set the note value and velocity value by
holding down the edit cell or the ENTER button and playing
a note on the keyboard (see OG p.10).
Velocity Split
This shows the velocity zone for the oscillator.
The meter on the left shows the note‐on velocity values for
the global MIDI channel. This lets you verify the
multisamples that will sound at each velocity (See “0–1e:
Velocity Meter” on page 5.).
Jump to Drum kit Edit Page button
See “Jump to Drum kit Edit Page button” on page 19.
V
2–2: Menu Command
•0: Write Program see p. 64
•1: Exclusive Solo see p. 64
•2: Auto Song Setup see p. 65
•3: Copy Oscillator see p. 65
•4: Swap Oscillator see p. 65
For more information, please see “Program: Menu
Command” on page 64.
2–3: OSC1 Pitch
This page contains all of the settings for Oscillator 1’s pitch
modulation. For example, you can:
• Specify pitch bend controlled by the joystick X (or an
incoming pitch bend message) set to independent Bend
Up and Bend Down, or controlled by an incoming
message CC#16 (the ribbon control message etc).
• Use Pitch Slope to control how the pitch changes when
you play up and down the keyboard.
• Assign AMS modulation for pitch.
• Set up initial amounts of pitch modulation from the Pitch
EG and LFO1/2, as well as AMS modulation of LFO and
EG amounts.
• Set up Portamento.
2–3a: Pitch
Pitch Slope [–1.0...+2.0]
Normally, this should be set to the default of +1.0.
Xfade
Power
Xfade
Layer
Linear
Volume
MS1
MS2
Velocity
Volume
MS1
MS2
Velocity
Volume
MS1
MS2
Velocity
Xfade
To Next Page
