304

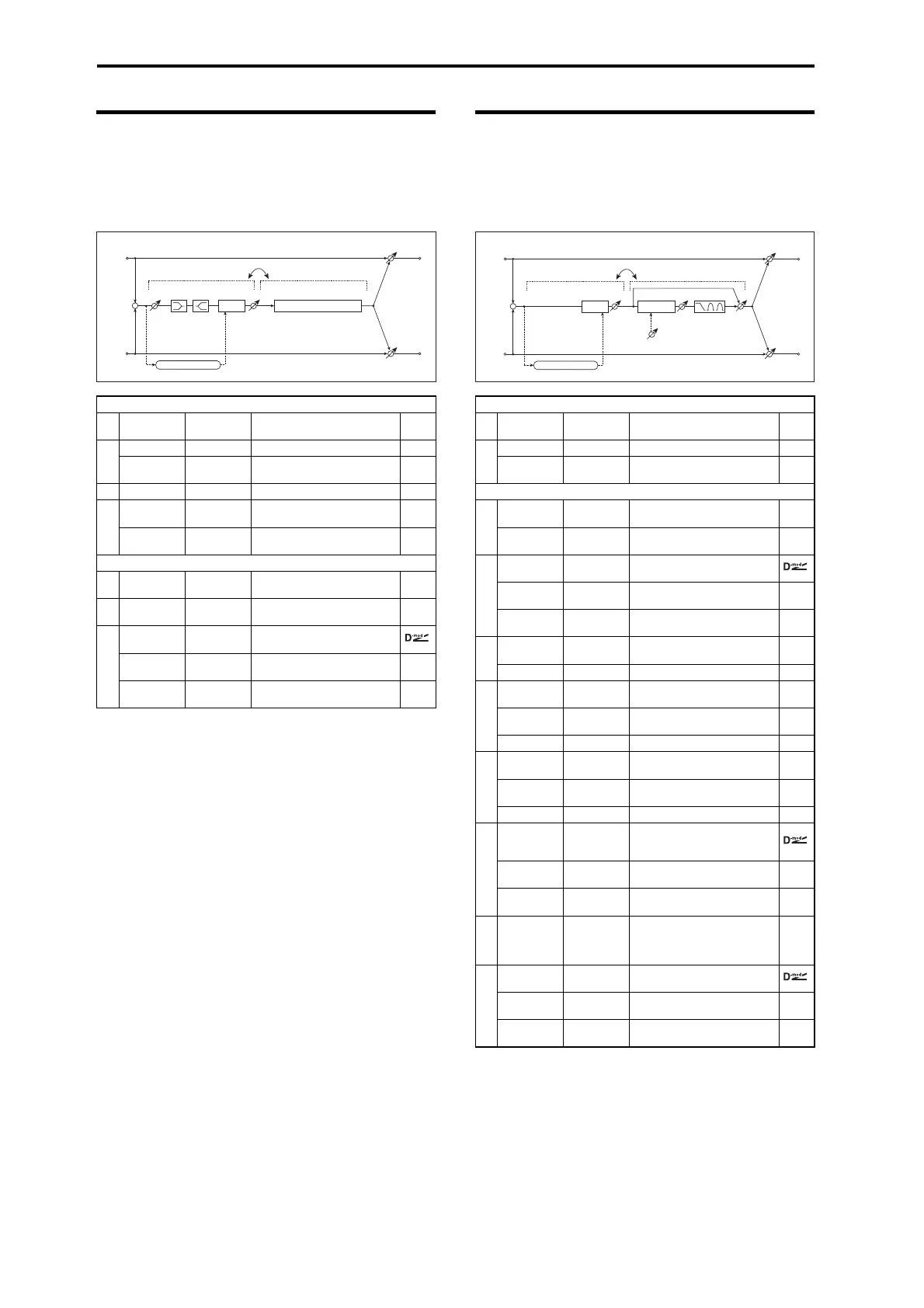

101: Comp - Amp Sim
(Compressor - Amp Simulation)
This effect combines a mono compressor and an amp
simulation. You can change the order of the effects.
102: Comp - OD/HiGain
(Compressor - Overdrive/Hi.Gain)
This effect combines a mono compressor and an overdrive/
high‐gain distortion. You can change the order of the effects.
COMPRESSOR
a
[C]
Sensitivity
1...100 Sets the sensitivity p.251
b
[C]Attack 1...100 Sets the attack level p.251
Output Level 0...100
Sets the compressor output level
p.251
c [C]EQ Trim 0...100 Sets the EQ input level
d
[C]Pre LEQ
Gain [dB]
–15...+15 Sets the gain of Low EQ
Pre HEQ Gain
[dB]
–15...+15 Sets the gain of High EQ
AMP SIM
e
[A]Amplifier
Type
SS, EL84, 6L6
Selects the type of guitar
amplifier
f Routing
Comp
Amp,
Amp
Comp
Switches the order of the
compressor and amp simulation
g
Wet/Dry
Dry, 1 : 99...
99 : 1, Wet
Sets the balance between the
effect and the dry input
Src Off...Tempo
Selects a modulation source for
Wet/Dry
Amt –100...+100
Sets the modulation amount for
Wet/Dry
Left
Right
Wet / Dry
Wet / Dry
Wet: Mono In - Mono Out / Dry: Stereo In - Stereo Out
+
Compressor
Routing
Amp Simulation
Amp Simulation Filter
LEQ HEQ
EQ Trim
Output Level
Envelope - Control
Comp
COMPRESSOR
a
[C]
Sensitivity
1...100 Sets the sensitivity p.251
b
[C]Attack 1...100 Sets the attack level p.251
Output Level 0...100
Sets the compressor output level
p.251
OD/HI-GAIN
c
[O]
Drive Mode
Overdrive, Hi-
Gain
Switches between overdrive and
high-gain distortion
Drive 1...100
Sets the degree of distortion
p.263
d
[O]Output
Level
0...50
Sets the overdrive output level
p.263
Src Off...Tempo
Selects the modulation source
for the overdrive output level
Amt –50...+50
Sets the modulation amount of
the overdrive output level
e
[O]Low
Cutoff [Hz]
20...1.00k
Sets the center frequency for
Low EQ (shelving type)
Gain [dB] –18...+18 Sets the gain of Low EQ
f
[O]Mid1
Cutoff [Hz]
300...10.00k
Sets the center frequency for
Mid/High EQ 1 (peaking type)
Q 0.5...10.0
Sets the band width of Mid/High
EQ 1 p.255
Gain [dB] –18...+18 Sets the gain of Mid/High EQ 1
g
[O]Mid2
Cutoff [Hz]
500...20.00k
Sets the center frequency for
Mid/High EQ 2 (peaking type)
Q 0.5...10.0
Sets the band width of Mid/High
EQ 2 p.255
Gain [dB] –18...+18 Sets the gain of Mid/High EQ 2
h
[O]Wet/Dry
Dry,
1 : 99...99 : 1,
Wet
Sets the overdrive effect balance
Src Off...Tempo
Selects the Wet/Dry modulation
source for the overdrive
Amt –100...+100
Sets the Wet/Dry modulation
amount for the overdrive
i Routing
Comp
OD/
HG,
OD/HG
Comp
Switches the order of the
compressor and overdrive
j
Wet/Dry
Dry, 1 : 99...
99 : 1, Wet
Sets the balance between the
effect and the dry input
Src Off...Tempo
Selects a modulation source for
Wet/Dry
Amt –100...+100
Sets the modulation amount for
Wet/Dry
Left
Right
Wet / Dry
Wet / Dry
Wet: Mono In - Mono Out / Dry: Stereo In - Stereo Out
+
Routing
Overdrive / Hi-Gain
3 Band PEQ
Output Level
Mode: Overdrive / Hi-Gain
Drive
Driver
Compressor
Output Level
Envelope - Control
Comp
Wet / Dry
