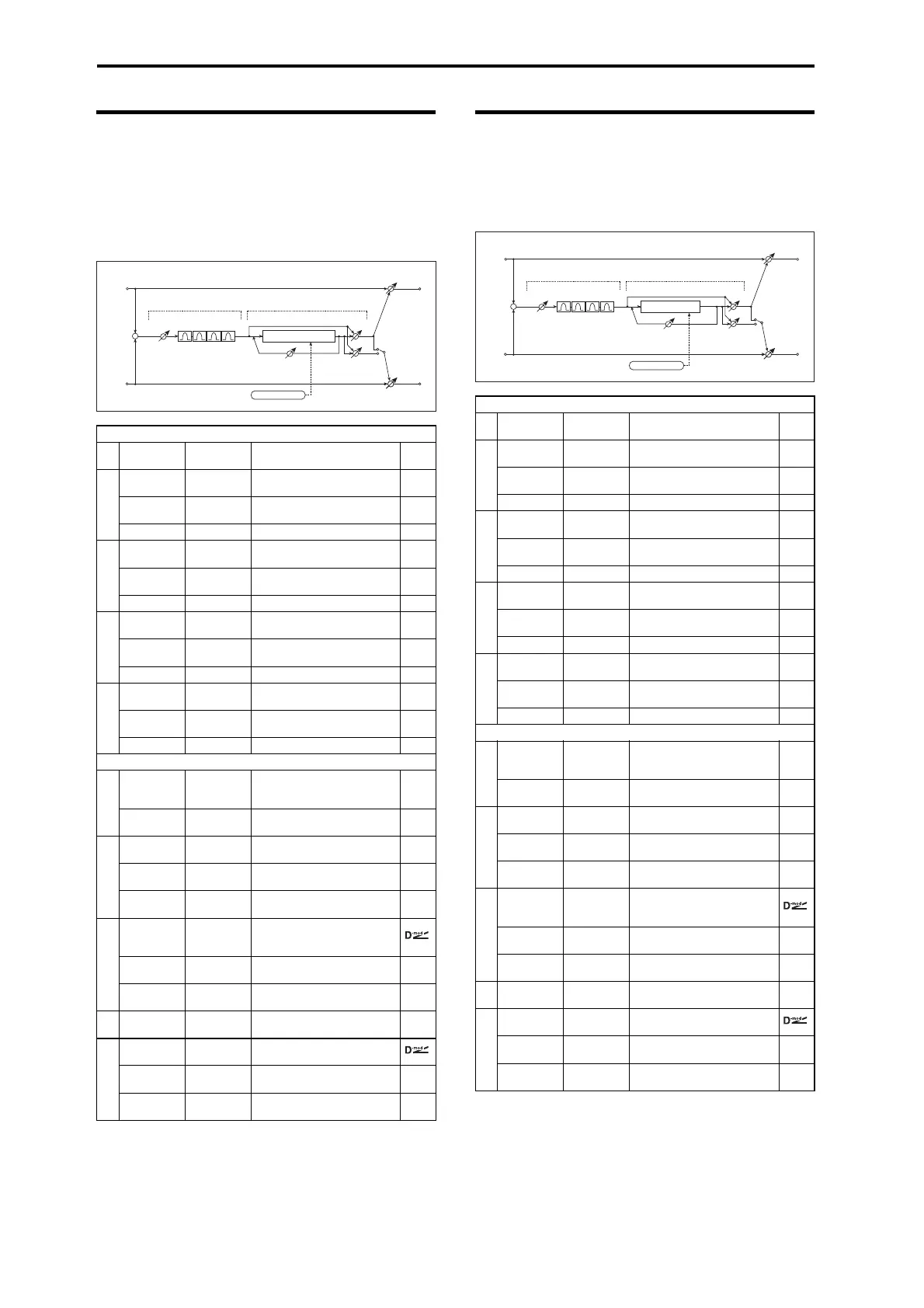

097: P4EQ - Cho/Flng
(Parametric 4-Band EQ -
Chorus/Flanger)
This effect combines a mono four‐band parametric equalizer
and a chorus/flanger.
i: [F]Output Mode
When Wet Invert is selected, the right channel phase of the
chorus/flanger effect sound is inverted. This creates pseudo‐
stereo effects and adds spread.
However, if a mono‐input type effect is connected after this
effect, the left and right sounds may cancel each other,
eliminating the chorus/flanger effects.
098: P4EQ - Phaser
(Parametric 4-
Band EQ - Phaser)
This effect combines a mono four‐band parametric equalizer
and a phaser.
P4EQ
a [E]Trim 0...100
Sets the parametric EQ input
level
b
[E]B1 Cutoff
[Hz]
20...1.00k
Sets the center frequency of
Band 1
Q 0.5...10.0
Sets the bandwidth of Band 1
p.255
Gain [dB] –18...+18 Sets the gain of Band 1
c
[E]B2 Cutoff
[Hz]
50...5.00k
Sets the center frequency of
Band 2
Q 0.5...10.0
Sets the bandwidth of Band 2
p.255
Gain [dB] –18...+18 Sets the gain of Band 2
d
[E]B3 Cutoff
[Hz]
300...10.00k
Sets the center frequency of
Band 3
Q 0.5...10.0
Sets the bandwidth of Band 3
p.255
Gain [dB] –18...+18 Sets the gain of Band 3
e
[E]B4 Cutoff
[Hz]
500...20.00k
Sets the center frequency of
Band 4
Q 0.5...10.0
Sets the bandwidth of Band 4
p.255
Gain [dB] –18...+18 Sets the gain of Band 4
CHORUS/FLANGER
f
[F]LFO
Frequency
[Hz]
0.02...20.00 Sets the speed of the LFO
LFO
Waveform
Triangle, Sine Selects the LFO Waveform
g
[F]Delay Time
[msec]
0.0...1350.0 Sets the delay time
Depth 0...100
Sets the depth of LFO
modulation
Feedback –100...+100
Sets the feedback amount
p.272
h
[F]Cho/Flng
Wet/Dry
–Wet...
–1 : 99, Dry,
1 : 99...Wet
Sets the effect balance of the
chorus/flanger
p.259, p.272
Src Off...Tempo
Selects the Wet/Dry modulation
source for the chorus/flanger
Amt –100...+100
Sets the Wet/Dry modulation
amount for the chorus/flanger
i
[F]Output
Mode
Normal,
Wet Invert
Selects the output mode for the
chorus/flanger p.302
j
Wet/Dry
Dry, 1 : 99...
99 : 1, Wet
Sets the balance between the
effect and the dry input
Src Off...Tempo
Selects a modulation source for
Wet/Dry
Amt –100...+100
Sets the modulation amount for
Wet/Dry
Left
Right
Wet / Dry
Wet: Mono In - Stereo Out / Dry: Stereo In - Stereo Out
Trim
+
Parametric 4Band EQ
Chorus/Flanger
Wet / Dry
Chorus/Flanger
Feedback
LFO: Tri / Sine
Cho/Flng Wet / Dry
Normal
Wet Invert
Output Mode
+
–
P4EQ
a [E]Trim 0...100
Sets the parametric EQ input
level
b
[E]B1 Cutoff
[Hz]
20...1.00k
Sets the center frequency of
Band 1
Q 0.5...10.0
Sets the bandwidth of Band 1
p.255
Gain [dB] –18...+18 Sets the gain of Band 1
c
[E]B2 Cutoff
[Hz]
50...5.00k
Sets the center frequency of
Band 2
Q 0.5...10.0
Sets the bandwidth of Band 2
p.255
Gain [dB] –18...+18 Sets the gain of Band 2
d
[E]B3 Cutoff
[Hz]
300...10.00k
Sets the center frequency of
Band 3
Q 0.5...10.0
Sets the bandwidth of Band 3
p.255
Gain [dB] –18...+18 Sets the gain of Band 3
e
[E]B4 Cutoff
[Hz]
500...20.00k
Sets the center frequency of
Band 4
Q 0.5...10.0
Sets the bandwidth of Band 4
p.255
Gain [dB] –18...+18 Sets the gain of Band 4
PHASER
f
[P]LFO
Frequency
[Hz]
0.02...20.00 Sets the speed of the LFO
LFO
Waveform
Triangle, Sine Selects the LFO Waveform
g
[P]Manual 0...100
Sets the frequency to which the
effect is applied
Depth 0...100
Sets the depth of LFO
modulation
Resonance –100...+100
Sets the resonance amount
p.273
h
[P]Phaser
Wet/Dry
–Wet...
–1 : 99, Dry,
1 : 99...Wet
Sets the phaser effect balance
p.259, p.273
Src Off...Tempo
Selects the Wet/Dry modulation
source for the phaser
Amt –100...+100
Sets the Wet/Dry modulation
amount for the phaser
i
[P]Output
Mode
Normal,
Wet Invert
Selects the phaser output mode
p.305
j
Wet/Dry
Dry, 1 : 99...
99 : 1, Wet
Sets the balance between the
effect and the dry input
Src Off...Tempo
Selects a modulation source for
Wet/Dry
Amt –100...+100
Sets the modulation amount for
Wet/Dry
Left
Right
Wet / Dry
Wet / Dry
Wet: Mono In - Stereo Out / Dry: Stereo In - Stereo Out
Trim
+
Parametric 4Band EQ Phaser
Phaser
Resonance
LFO: Tri / Sine
Phaser Wet / Dry
Normal
Wet Invert
Output Mode
–
+
