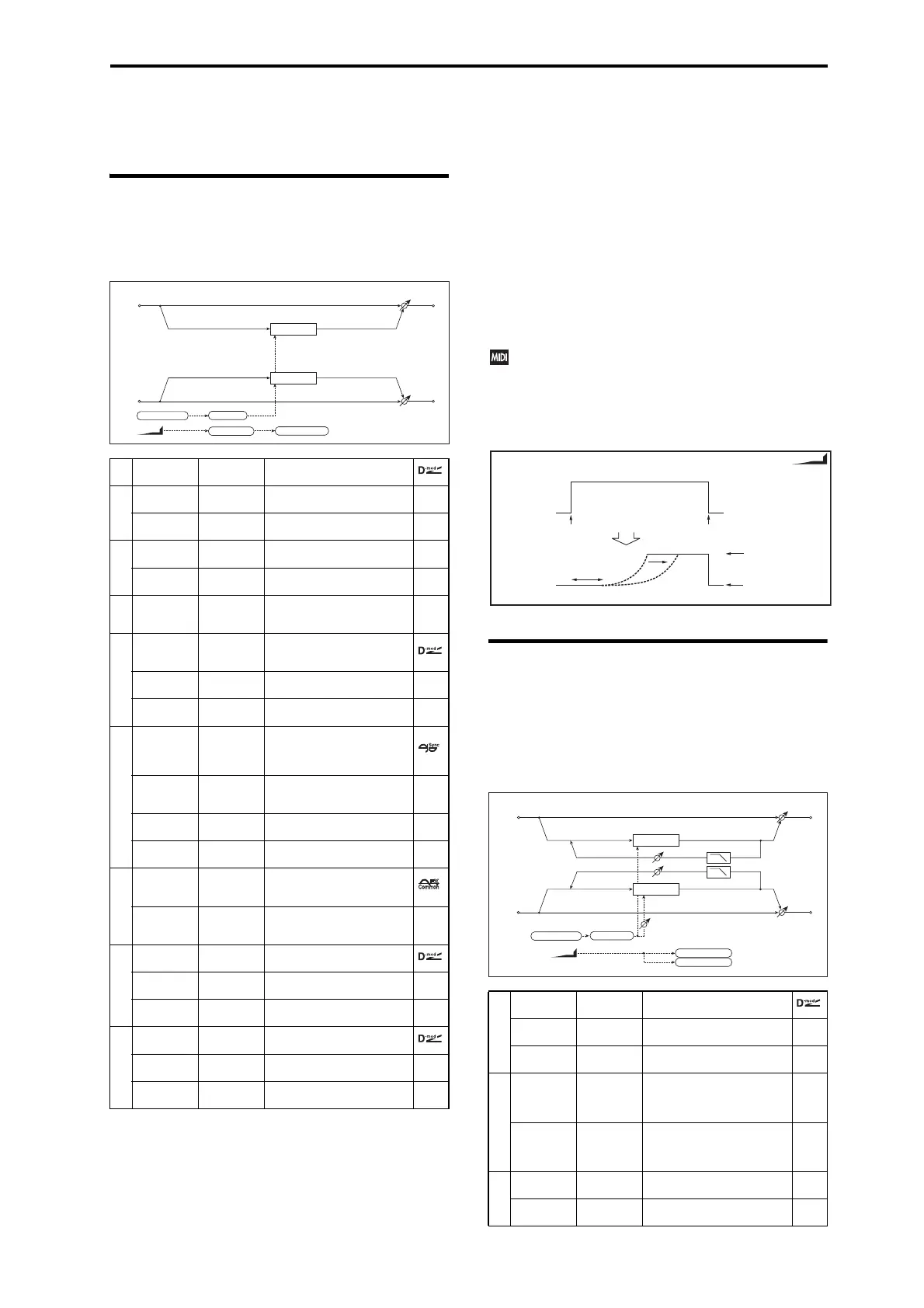

Modulation and Pitch Shift (Mod./P.Shift) 049: Stereo Vibrato
277
Modulation and Pitch Shift (Mod./P.Shift)
049: Stereo Vibrato
This effect causes the pitch of the input signal to shimmer.
Using the AutoFade allows you to increase or decrease the
shimmering speed.
a: AUTOFADE Src
b: Fade-In Delay [msec]
b: Fade-In Rate
d: LFO Frequency Mod
When LFO Frequency Mod is set to AUTOFADE, you can
use the modulation source selected in AUTOFADE Src as a
trigger to automatically fade in the modulation amount.
When MIDI Sync is set to On, you cannot use this.
The Fade-In Rate parameter specifies the rate of fade‐in. The
Fade-In Delay parameter determines the time from
AutoFade modulation source On until the fade‐in starts.
The following is an example of fade-in where the LFO
speed is increased from “1.0Hz” to “4.0Hz” when a note-on
message is received.
AUTOFADE Src=Gate1, LFO Frequency Mod=AUTOFADE,
LFO Frequency [Hz]=1.0, Amt=3.0
The effect is off when a value for the dynamic
modulation source specified for the AUTOFADE Src
parameter is smaller than 64, and the effect is on when
the value is 64 or higher. The AutoFade function is
triggered when the value changes from 63 or smaller to
64 or higher.
050: St. Auto Fade Mod.
(Stereo
Auto Fade Modulation)
This stereo chorus/flanger effect enables you to control the
LFO speed and effect balance using auto fade, and you can
spread the sound by offsetting the phase of the left and right
LFOs from each other.
a
AUTOFADE
Src
Off...Tempo
Selects the modulation source
that starts AutoFade p.277
b
Fade-In Delay
[msec]
00...2000
Sets the fade-in delay time
p.277
Fade-In Rate 1...100
Sets the rate of fade-in
p.277
c
LFO
Waveform
Triangle, Sine Selects the LFO Waveform
LFO Shape –100...+100
Changes the curvature of the
LFO Waveform p.259
d
LFO
Frequency
Mod
D-mod,
AUTOFADE
Switches between D-mod and
AUTOFADE for the LFO
frequency modulation p.277
e
LFO
Frequency
[Hz]
0.02...20.00 Sets the speed of the LFO
Src Off...Tempo
Selects a modulation source for
LFO speed
Amt
–20.00...
+20.00
Sets the modulation amount of
LFO speed
f
MIDI Sync Off, On
When this is on, the LFO speed is
set by BPM, Base Note, and
Times, instead of Frequency
p.257
BPM
MIDI,
40.00...
300.00
MIDI syncs to the system tempo;
40–300 sets the tempo manually
for this individual effect p.257
Base Note ...
Selects the type of notes that
specify the LFO speed p.257
Times x1...x32
Sets the number of notes that
specify the LFO speed p.257
g
LFO Type
Individual,
Common1,
Common2
Selects either (individual) LFO,
Common FX LFO1, or Common
LFO2 p.257
Common
LFO Offset
[deg]
–180...+180
Sets the phase offset when Type
= Common 1 or Common 2
p.257
h
Depth 0...100
Sets the depth of LFO
modulation
Src Off...Tempo
Selects the modulation source of
the LFO modulation depth
Amt –100...+100
Sets the modulation amount of
the LFO modulation depth
i
Wet/Dry
Dry, 1 : 99...
99 : 1, Wet
Sets the balance between the
effect and the dry input
Src Off...Tempo
Selects a modulation source for
Wet/Dry
Amt –100...+100
Sets the modulation amount for
Wet/Dry
Vibrato
Vibrato
Left
Right
Wet / Dry
Wet / Dry
Stereo In - Stereo Out
LFO: Tri / Sine LFO Shape
Fade-In Delay LFO Frequency
AutoFade
a
AUTOFADE
Src
Off...Tempo
Selects the modulation source
that starts AutoFade p.277
Fade-In Delay
[msec]
00...2000
Sets the fade-in delay time
p.277
Rate 1...100
Sets the rate of fade-in
p.277
b
LFO
Frequency
Mod
D-mod,
AUTOFADE
Switches between D-mod and
AUTOFADE for the LFO
frequency modulation
p.277
Wet/Dry Mod
D-mod,
AUTOFADE
Switches between D-mod and
AUTOFADE for the effect balance
modulation
p.277
c
LFO
Waveform
Triangle, Sine Selects the LFO Waveform
LFO Shape –100...+100
Changes the curvature of the
LFO Waveform p.258
AUTOFADE
AutoFade
Note On
All Note O
Fade-In Rate
Source=Gate1
LFO Freq. Mod=AUTOFADE
LFO Frequency[Hz]=1.0
Amount=+3.0
LFO Frequency
=1.0+3.0=4.0Hz
LFO Frequency
=1.0Hz
Gate1 Signal
AUTOFADE
Fade-In Dealy
AutoFade
LFO Frequency
Wet / Dry
Delay
Delay
Left
Right
Feedback
LFO Shape
LFO Phase
LFO: Tri / Sine
Wet / Dry
Wet / Dry
High Damp
Stereo In - Stereo Out
