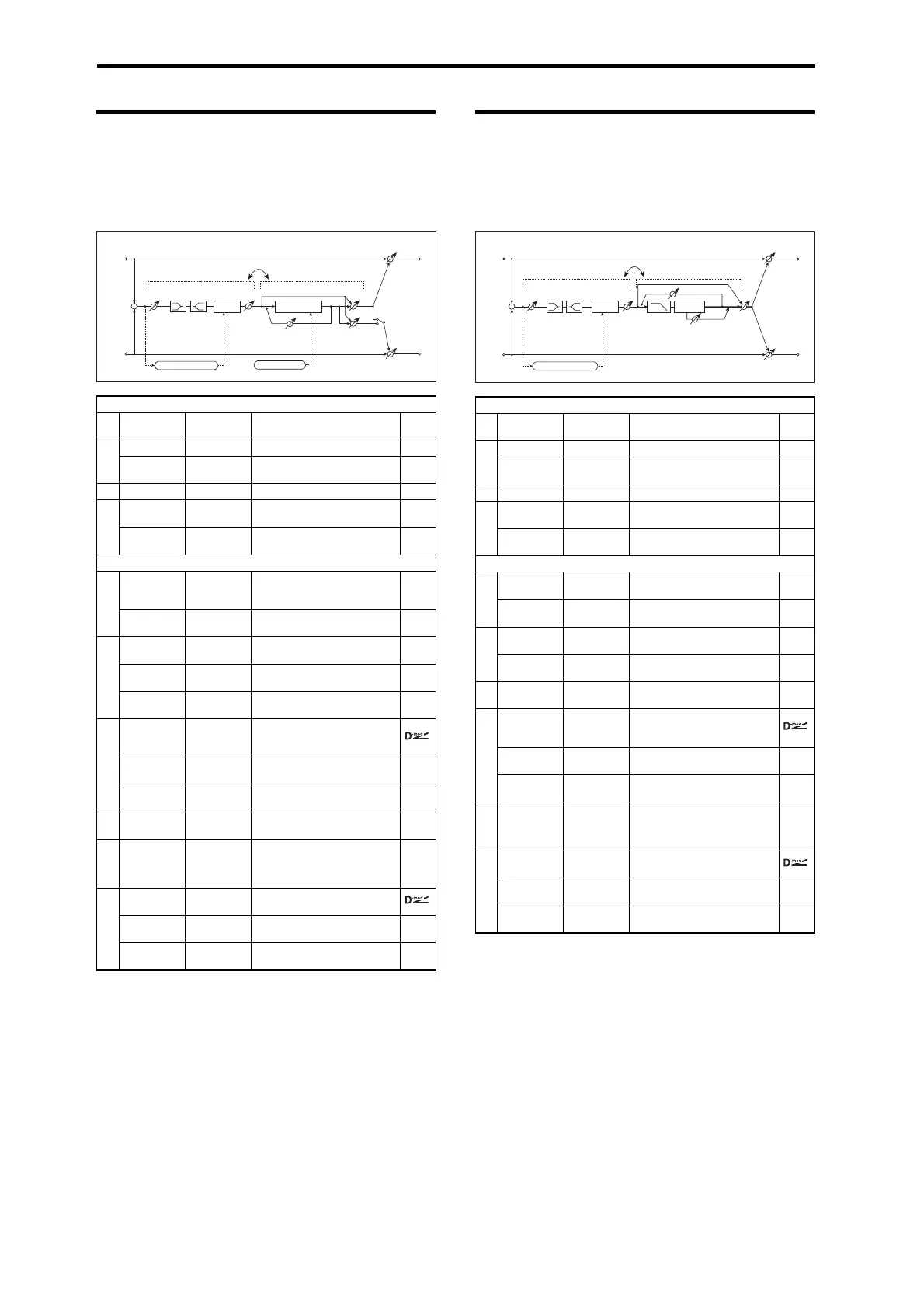

105: Comp - Phaser
(Compressor - Phaser)
This effect combines a mono compressor and a phaser. You
can change the order of the effects.
106: Comp - Mt. Delay
(Compressor - Multitap Delay)
This effect combines a mono compressor and a multitap
delay. You can change the order of the effects.
COMPRESSOR
a
[C]
Sensitivity
1...100 Sets the sensitivity p.251
b
[C]Attack 1...100 Sets the attack level p.251
Output Level 0...100
Sets the compressor output level
p.251
c [C]EQ Trim 0...100 Sets the EQ input level
d
[C]Pre LEQ
Gain [dB]
–15...+15 Sets the gain of Low EQ
Pre HEQ Gain
[dB]
–15...+15 Sets the gain of High EQ
PHASER
e
[P]LFO
Frequency
[Hz]
0.02...20.00 Sets the speed of the LFO
LFO
Waveform
Triangle, Sine Selects the LFO Waveform
f
[P]Manual 0...100
Sets the frequency to which the
effect is applied
Depth 0...100
Sets the depth of LFO
modulation
Resonance –100...+100
Sets the resonance amount
p.273
g
[P]Phaser
Wet/Dry
–Wet...
–1 : 99, Dry,
1 : 99...Wet
Sets the phaser effect balance
p.259, p.273
Src Off...Tempo
Selects the Wet/Dry modulation
source for the phaser
Amt –100...+100
Sets the Wet/Dry modulation
amount for the phaser
h
[F]Output
Mode
Normal,
Wet Invert
Selects the phaser output mode
p.302
i Routing
Comp
Phaser,
Phaser
Comp
Switches the order of the
compressor and phaser
p.305
j
Wet/Dry
Dry, 1 : 99...
99 : 1, Wet
Sets the balance between the
effect and the dry input
Src Off...Tempo
Selects a modulation source for
Wet/Dry
Amt –100...+100
Sets the modulation amount for
Wet/Dry
Left
Right
Wet / Dry
Wet / Dry
Wet: Mono In - Stereo Out / Dry: Stereo In - Stereo Out
+
Routing
Compressor
LEQ HEQ
EQ Trim
Comp
Output Level
Envelope - Control
Phaser
Phaser
Resonance
LFO: Tri / Sine
Phaser Wet / Dry
Normal
Wet Invert
Output Mode
–
+
COMPRESSOR
a
[C]
Sensitivity
1...100 Sets the sensitivity p.251
b
[C]Attack 1...100 Sets the attack level p.251
Output Level 0...100
Sets the compressor output level
p.251
c [C]EQ Trim 0...100 Sets the EQ input level
d
[C]Pre LEQ
Gain [dB]
–15...+15 Sets the gain of Low EQ
Pre HEQ Gain
[dB]
–15...+15 Sets the gain of High EQ
MULTITAP DELAY
e
[D]Tap1 Time
[msec]
0.0...1360.0 Sets the Tap1 delay time
Tap1 Level 0...100
Sets the Tap1 output level
p.290
f
[D]Tap2 Time
[msec]
0.0...1360.0 Sets the Tap2 delay time
Feedback
(Tap2)
–100...+100 Sets the Tap2 feedback amount
g
[D]High
Damp [%]
0...100
Sets the damping amount in the
high range p.289
h
[D]Mt.Delay
Wet/Dry
Dry,
1 : 99...99 : 1,
Wet
Sets the multitap delay effect
balance
Src Off...Tempo
Selects the Wet/Dry modulation
source for the multitap delay
Amt –100...+100
Sets the Wet/Dry modulation
amount for the multitap delay
i Routing
Comp
Mt.Delay,
Mt.Delay
Comp
Switches the order of the
compressor and multitap delay
j
Wet/Dry
Dry, 1 : 99...
99 : 1, Wet
Sets the balance between the
effect and the dry input
Src Off...Tempo
Selects a modulation source for
Wet/Dry
Amt –100...+100
Sets the modulation amount for
Wet/Dry
Left
Right
Wet / Dry
Wet / Dry
Wet: Mono In - Mono Out / Dry: Stereo In - Stereo Out
+
Routing
Compressor
LEQ HEQ
EQ Trim
Output Level
Envelope - Control
Multitap Delay
Feedback
High Damp
Delay
(2)
(1)
Mt.Dly Wet / Dry
Comp
To Next Page
