Initial operation 6
Mounting the bale ejector 6.7
Comprima V 180
Original Operating Instructions 150001053_00_en 53
21
RPG000-097

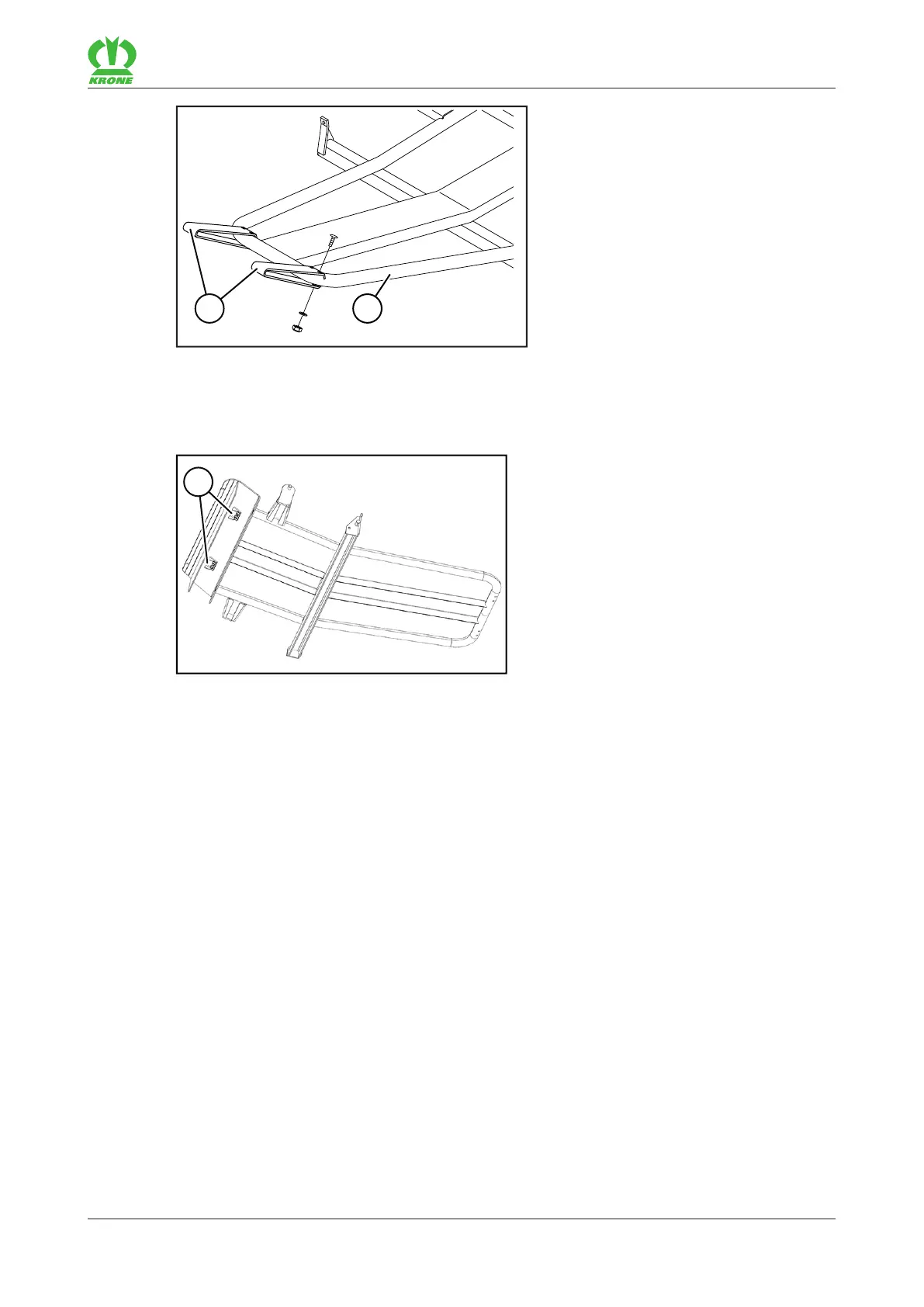

 Mount the spacer (1) with the round-head screws, discs and nuts on the bale ejector (2).
For "single axis" version
1
RP000-501
The under side of the bale ejector is shown.
 Mount 2support plates (1) with screws and washers on the under side of the bale ejector.
