6 Initial operation
6.7 Mounting the bale ejector
52
Comprima V 180
Original Operating Instructions 150001053_00_en
X
2
3
4
5
6
1
1
7
8
1
RPG000-098

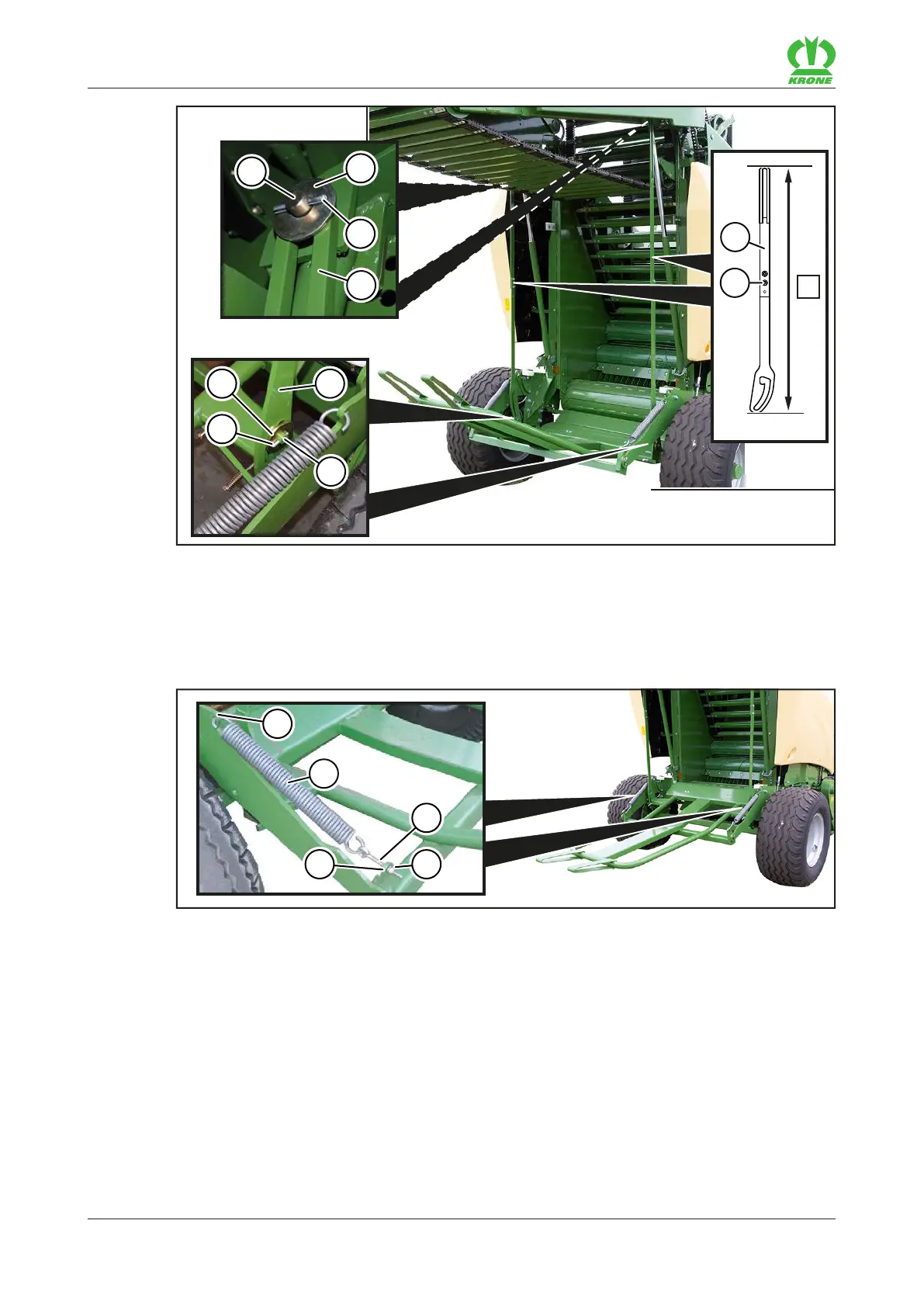

 Set the linkage (1) with the hole pattern (8) to the dimension X=2.567mm.
 Push the linkage (1) on the left and right on the stud bolt (7) of the frame and secure with a
disc (5) and clamping sleeve (6).
 Push the linkage (1) on the left and right on the stud bolt (2) of the tailgate and secure with a
disc (3) and clamping sleeve (4).
1
5
3
4
2
RP000-498
 Hook the tension spring (2) into the link (1) on the mounting plate.
 Hook the eye bolt (3) into the tension spring (2) and guide it through the bore hole (5).
 Secure with the disc and nut (4).
 Tighten the nut (4) until the bale ejector swings safely into the basic setting after depositing
the round bale.
