Operation 8
Operating the support jack 8.6
Comprima V 180
Original Operating Instructions 150001053_00_en 71

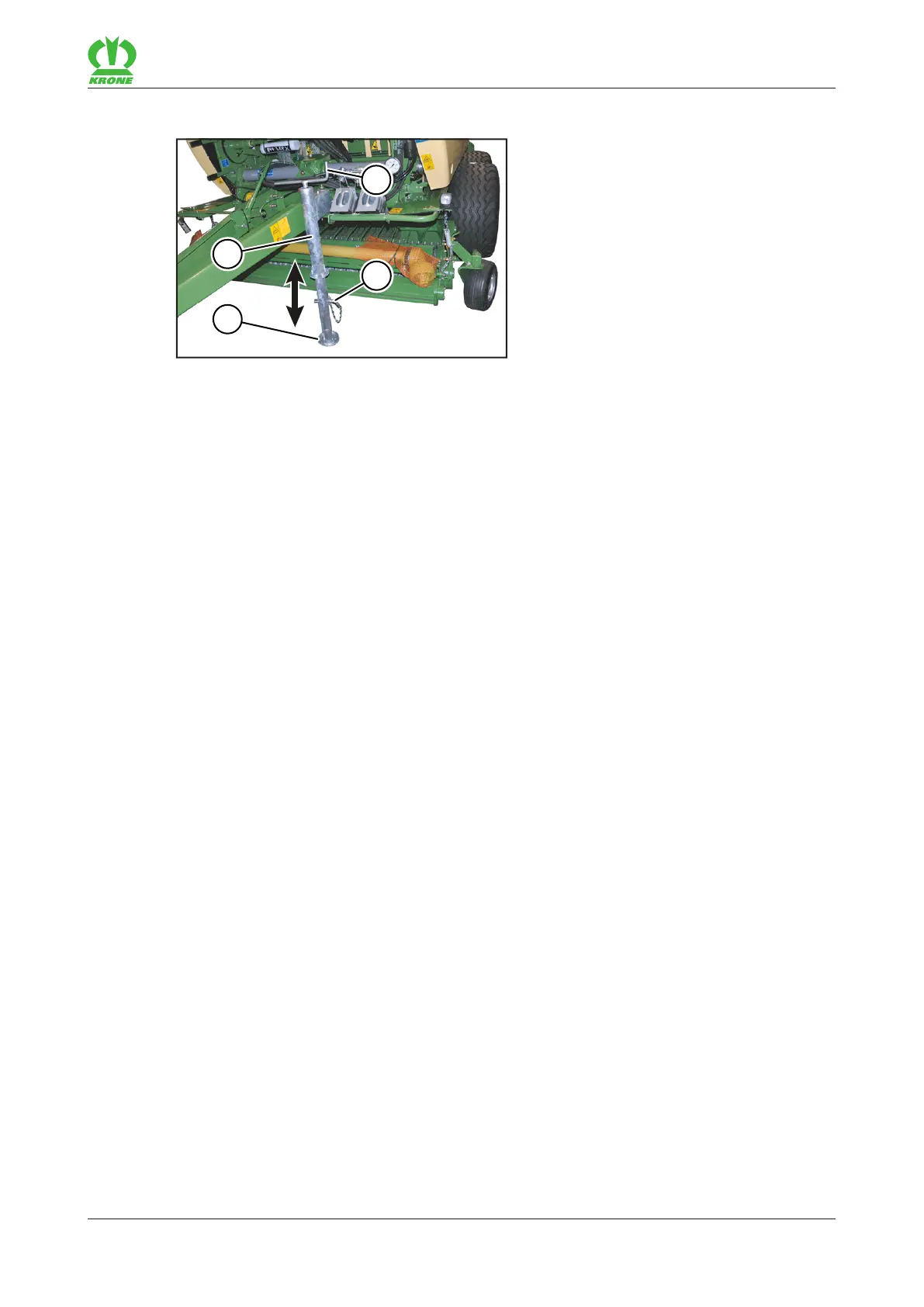

For version with "Mechanical support jack"
1
2
3
4
RPG000-063
Moving support jack into support position
 Turn the crank handle(1) several revolutions anti-clockwise.
WARNING!Crush hazard due to the support jack! Keep hands and feet out of the danger
zone of the support jack.
 Pull out the securing pin(4), extend the parking support(2) and secure the position using
the securing pin(4).
 Turn the support jack(2) anti-clockwise firmly down onto the ground using the crank
handle(1) until the drawbar is relieved.
Moving support jack into transport position
 Turn the crank handle(1) several revolutions clockwise until the support plate(3) is relieved.
WARNING!Crush hazard due to the support jack! Keep hands and feet out of the danger
zone of the support jack.
 Pull out the securing pin(4), push in the support jack(2) and secure the position with the
securing pin(4).
 Turn the support jack(2) clockwise all the way up using the crank handle(1).
 Rotate the support plate(3) so that the flat side points towards the pick-up.
