8 Operation
8.6 Operating the support jack
72
Comprima V 180
Original Operating Instructions 150001053_00_en
For version with "Hydraulic support jack"

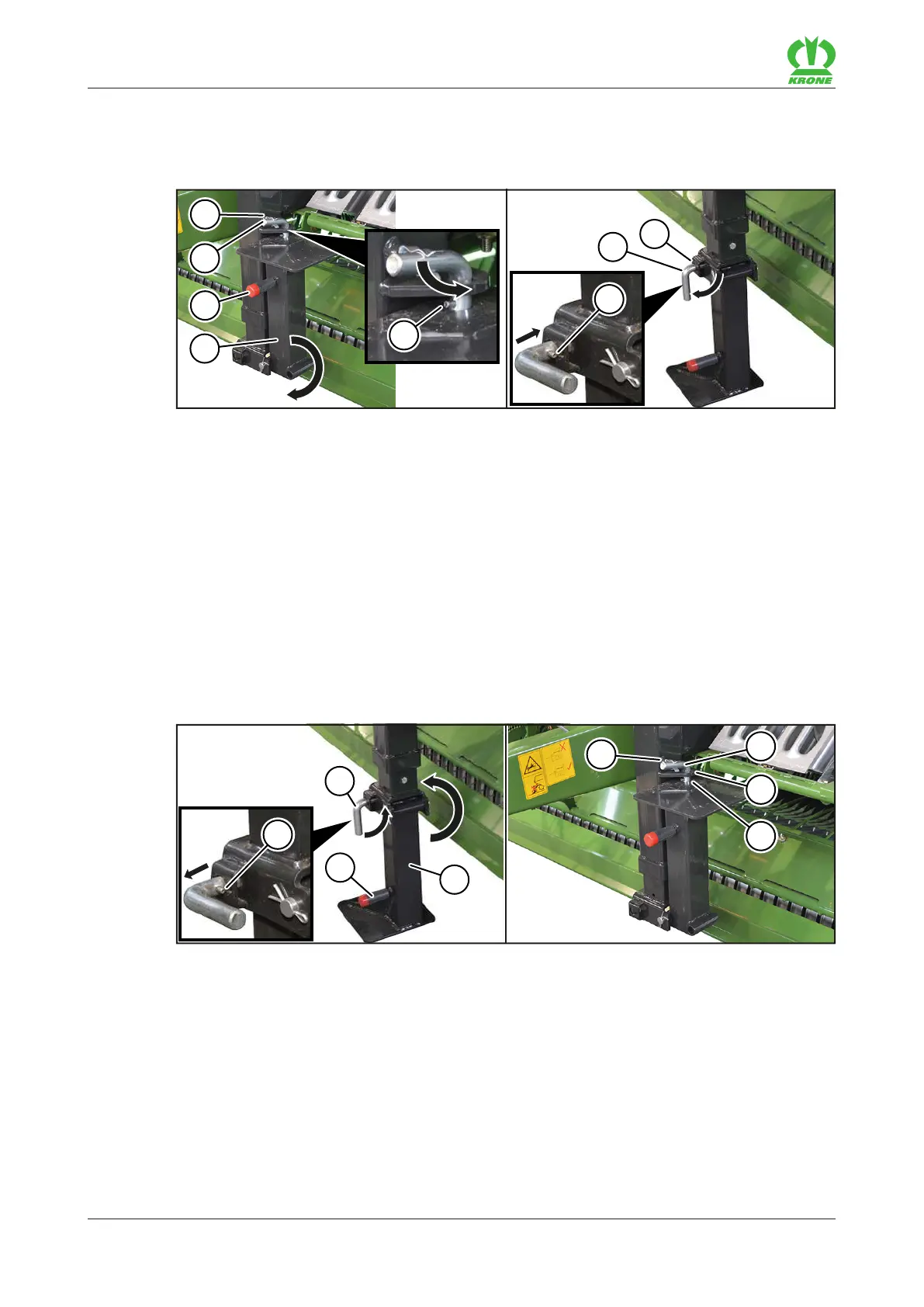

Moving support jack into support position
6
3
1
2
1
3
5
4
RP000-117
 Detach the bolt(1) from the locking spring(2) and turn it by 90° to the right so that the
locking pin(3) is no longer locked.
 Pull out the bolt(1).
WARNING!Crush hazard due to support jack swinging down! Fold the support jack up or
down using the handle(4) only.
 Fold down support jack (5) by 180°.
 Guide the bolt (1) with handle to the right into the opening (6) and turn it by 90° to the left so
that the locking pin (3) locks.
 Actuate the double-acting control unit (green, 5-) until the support jack(5) is firmly on the
ground and the drawbar eye is relieved.
Moving support jack into transport position
3
1
5
7
1
6
2
4
RP000-116
 Actuate the double-acting control unit (green, 5+) until the support jack(3) has been
retracted.
 Turn the bolt(1) by 90° to the right so that the locking pin(2) is no longer locked.
 Pull out the bolt(1).
 Fold up the lower part of the support jack(3) by 180°.
WARNING!Crush hazard due to support jack swinging down! Swivel the support jack up
or down using the handle(4) only.
 Insert the bolt(1) through the boreholes(5,6) and secure it in the locking spring(7).
