11/8/00 System 824 Views 6-5
to one of the secondary parameters which are being mea-
sured concurrently.
The
SLM
view display consists of eight major components:
•Display label
• Selected detector
• Current SPL reading
• Selectable L
eq
reading
• Weighting
• Elapsed time
• Status
• SPL history graph
The following is a brief description of each of these compo-
nents:
Display label
- The Display label identifies the display. The
example above shows the SLM view for the SLM+RTA
Instrument ID.
Selected detector -
The selection determines which detec-
tor’s data (e.g. Fast, Slow, Impl) is to be displayed.
Current SPL reading
- Displays the current SPL reading
(as does the level of the moving bar on the far right of the
SPL history graph). The frequency weighting for SPL can be

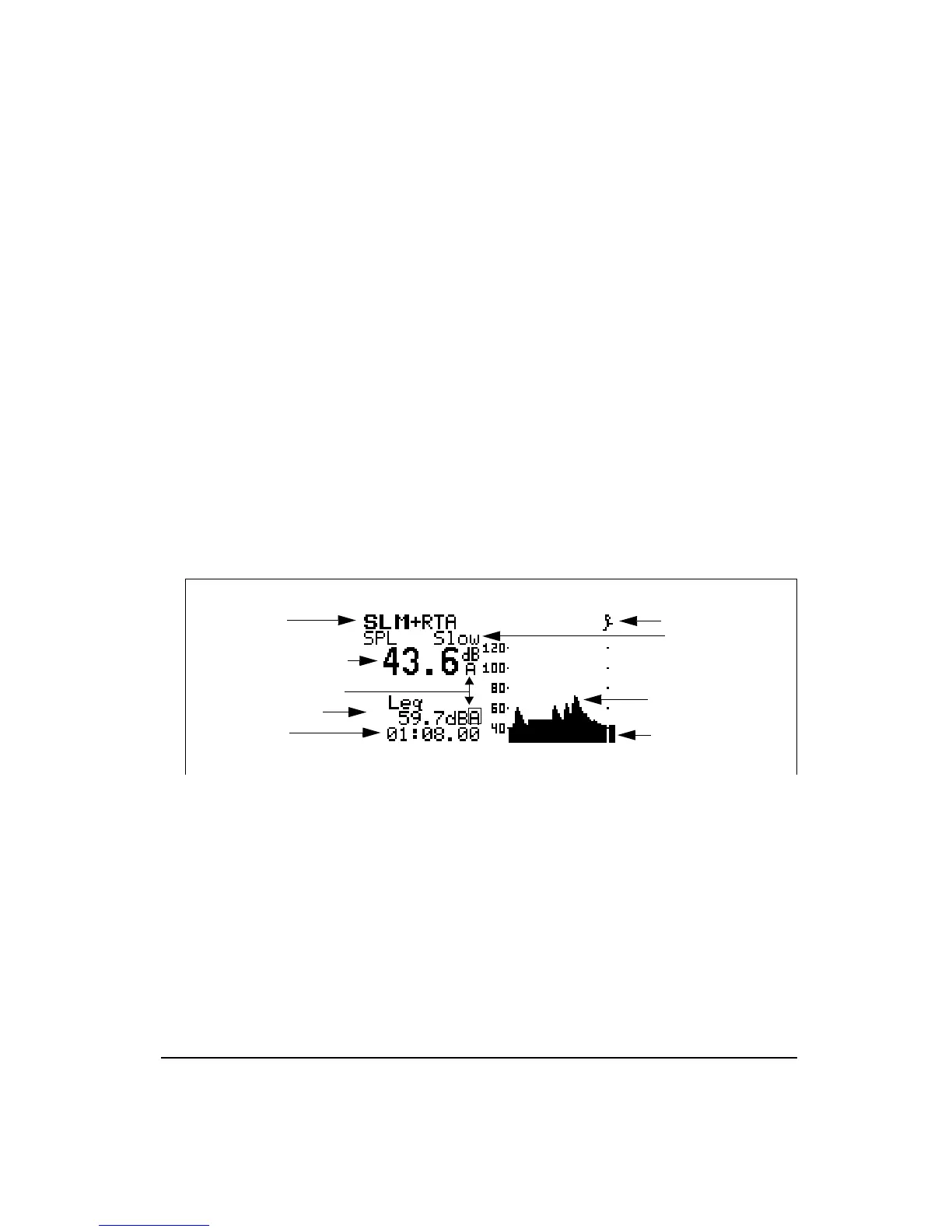

Display label
Current SPL reading
Selectable reading
Status
1 sec Leq history
Elapsed time
detector displayed
Weighting displayed
Current SPL
graph
