11/8/00 System 824 Views 6-29
Current/Overall SLM Display-c
(Min/Max)
The
Current/Overall-c SLM
or
Min/Max
display consists of
three major components:
•Display label
• Current/Overall Lmax reading
• Current/Overall Lmin reading

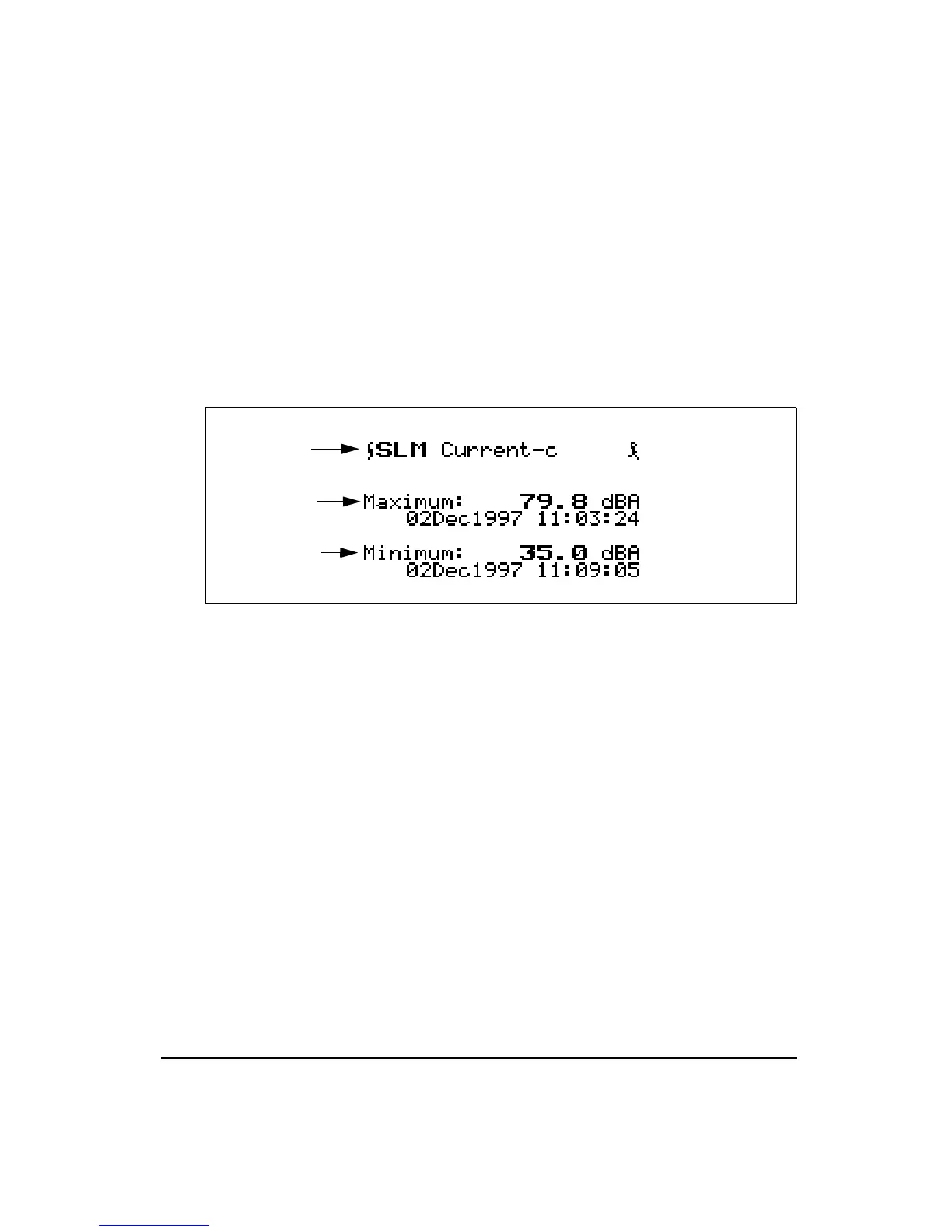

The
SLM Current-c
or
Min/Max
display is shown below:
The following explains each of the display’s components:
Display label
- This shows the current display (for example,
“
SLM Current-c
”). The display represents both Current and
Overall-c display.
Current / Overall Lmax reading
- Displays Lmax or maxi-
mum level that occurred, and the date and time when it
occurred.
Current / Overall Lmin reading
- Displays Lmin or mini-
mum level that occurred, and the date and time when it
occurred.
Current/Overall SLM Display-d
(Peaks)
The
Current / Overall-d SLM
or
Peaks
Display consists of
three major components:
•Display label
• Current / Overall Flat Weighted Peak
• Current / Overall C - Weighted Peak
Display label
Current/Overall
Current/Overall
Lmax reading
Lmin reading
