6-28 824 Reference Manual 11/8/00
Current/Overall SLM Display-b
(Times)
The
Current / Overall-b SLM
or
Times
display consists of
four major components:
• Display label
• Start date / time
• Elapsed time
• End date / time

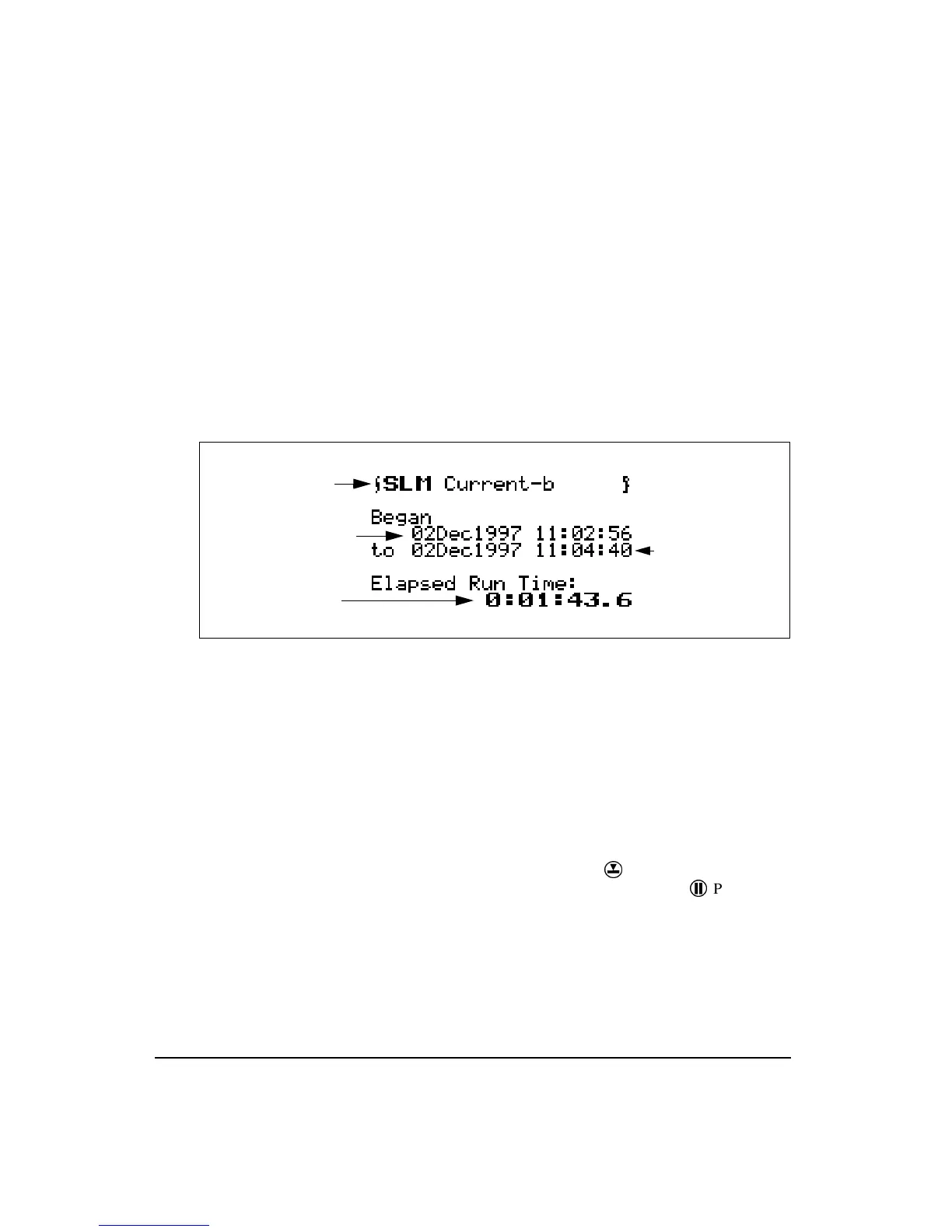

The
SLM Current-b o
r
Times
display is shown below:
The following explains each of the display’s components:
Display label
- This shows the current display (for example,
“SLM Current-b”
). The display represents both Current-b
and Overall-b display.
Start date/time
- Date and time the current/overall measure-
ment began.
Elapsed time
- The Elapsed Time displays the length of
time the current or overall measurements have been running.
It will restart at zero when the
R
Reset key is pressed (Cur-
rent SLM only). It will also pause when the
p
Pause key is
pressed and then continue when it is pressed again. The
timer is displayed as hhhhh:mm:ss.s
End date/time
- Date and time the current/overall measure-
ment ended (or current time if still running).
Display label
Start date/time
End date / time
Elapsed time
