1-14 824 Reference Manual 11/8/00
Using the NiMH Battery Pack
To use a NiMH battery pack with the System 824, unscrew
the battery cover at the back of the System 824 by hand or
using a flat blade screwdriver. If alkaline batteries were pre-
viously used, remove the Terminal Assembly (Figure 1-8).
Insert the battery pack so that the positive terminal is ori-
ented down and to the right, as shown in Figure 1-7.

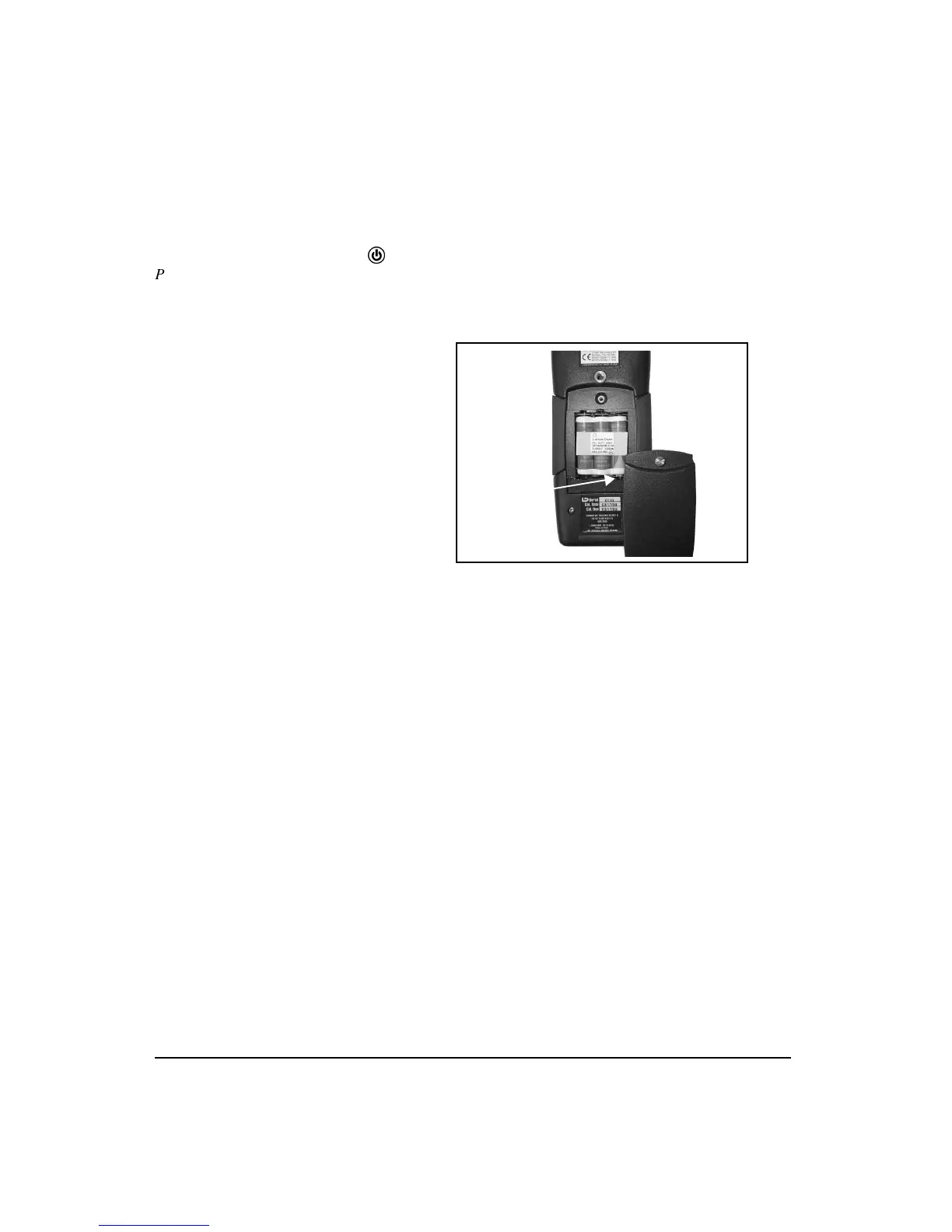

Figure 1-7
Battery compartment and cover with NiMH battery
pack installed. (Note location of positive terminal.)
Using Alkaline Batteries
Use Duracell MN 1500 (1.5 volt,
2,850 mAH) alkaline battery or
equivalent. You may also use the
Duracell Ultra
or Energizer Tita-
nium
next generation batteries
which will give you 40% more run
time.
To use alkaline batteries, remove the battery cover, and if
installed, remove depleted alkaline batteries (or NiMH bat-
tery pack). If not already installed, insert a battery Terminal
Assembly (AM814.06) so that it is positioned as shown in
Figure 1-8. Insert three AA alkaline batteries so that polari-
ties match those indicated in the battery compartment and
secure the battery cover.
Positive
Terminal
For additional battery information,
refer to the sections entitled “
v
Power Key” and “Power Settings”
in Chapter 3. For detailed informa-
tion on charging NiMH batteries,
refer to the section entitled “Power
Monitor” in Chapter 3.
If power is supplied with the AC
Power adapter, the NiMH or alkaline
batteries do not require removal and
will power the unit if the AC power
adapter fails.
Battery compartment and cover with
NiMH battery pack installed. (Note
location of positive terminal.)Bat-
tery compartment and cover with
NiMH battery pack installed. (Note
location of positive terminal.)
