SLM Check Menu Options (SSA and LOG)
The Check menu’s Controls and Set-
tings items correspond to those
described earlier in the Settings
Descriptions section of this chapter.
The SLM display check menus for the SSA and LOG instru-
ment are identical. Following is a chart of the Check Menu
settings.

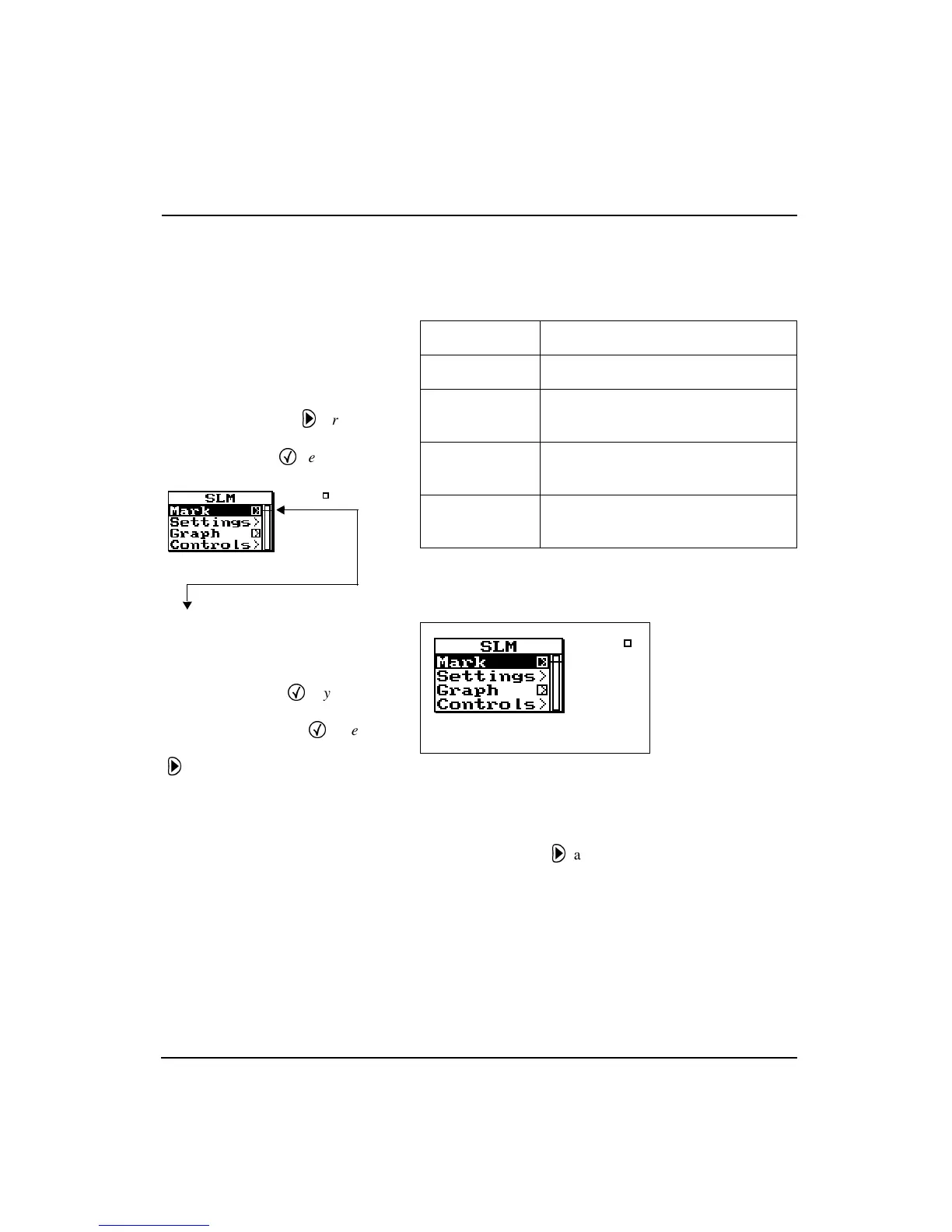

The following screen appears when accessing the Check
menu from the SLM view.
Mark Display
Pressing the right
r
arrow key when “Mark” is high-
lighted puts you in the “Mark” display. The following screen
appears:
Menu Items Purpose
Mark Puts a marker in the time history
Settings Modifies the SLM settings for the
selected instrument
Graph Changes the scaling of the instru-
ment’s SLM history graph
Controls Modifies the Control menu for the
selected instrument
Pressing the right
r
arrow key
takes you to a different place than
pressing the check
c
key. See exam-
ple below:
A box with an arrow next to a menu
item indicates that you use the right-
r
arrow key to access another display
or menu. The check
c
key takes you
to a different place. An empty box
indicates that a check
c
takes you
to the same place as the right
r
arrow key.
