NOTE: See page 7-32 through 7-33 for a
detailed description of the Excd Time
History settings.
The
Excd Time History
display consists of seven major
components:
• Display Label
• Current Record
• Level at cursor
• Time at cursor
• Current sample
• Total number of samples
• Total number of Excd records
• Graph of Exceedance Time History
The
Excd Time History

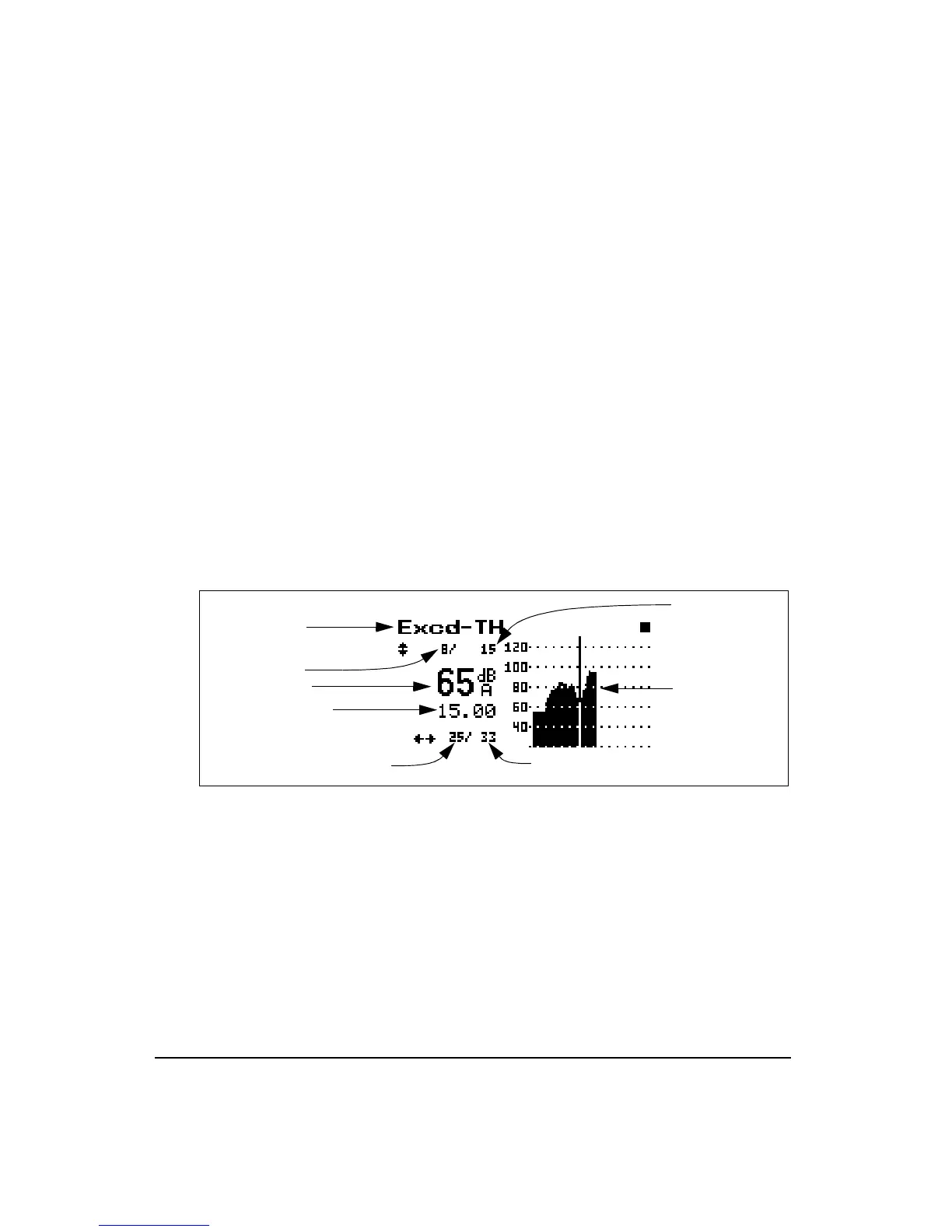

display is shown below:
The following explains each of the display’s components:
Display Label
- This shows the current display (for exam-
ple, “
Excd-TH
”)
Current Record
- The “Excd-TH” display shows each
exceedance record in the order that it occurred. This number
shows that you are viewing this particular exceedance
record.
Level at Cursor
- Shows the level in dB at the point in time
indicated by the cursor.
Display label
Current record
Total number of samples
Current sample
Total number of
Excd records
Level at cursor
Time at cursor
Graph of Excd
time history
