11/8/00 Using the 824 Utility Software 9-3

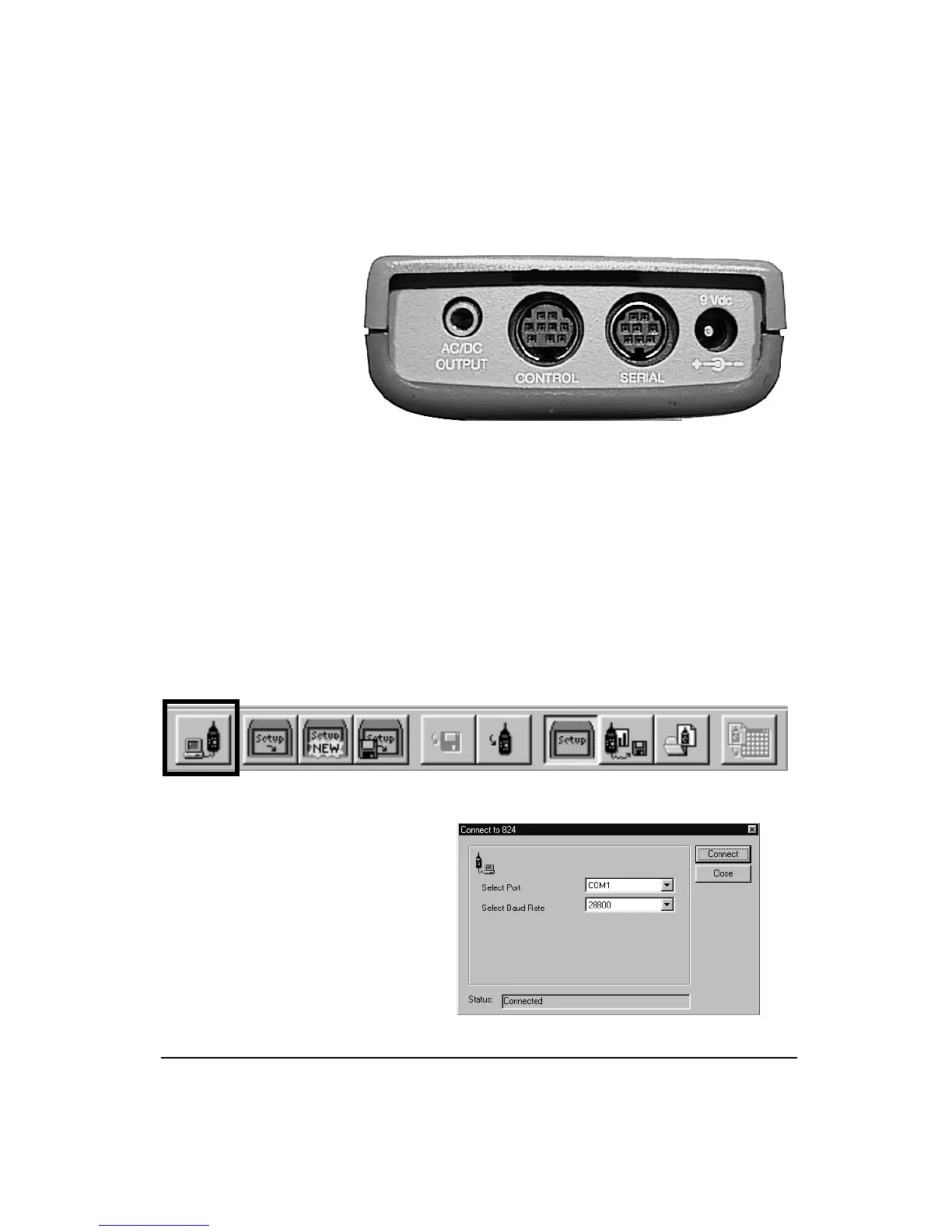

plugs into the Serial port of the 824 and the 9-pin connector
plugs into a serial port on your computer.
You do not need to be connected to
the 824 in order to translate files
which have already been down-
loaded.
Before any functions can be performed on the 824, you must
connect the 824 to the 824 Utility software. To connect to
the 824:
Step 1
Attach the CBL006 to the 824 and to the serial
port on the computer as described earlier.
Step 2
Start the 824 Utility program.
NOTE: The 824 will power on when it
senses anything on the serial connector.
You may notice the 824 powering on
automatically before you press the power
button.
Step 3
Power on the 824.
Step 4
Press the Connect button on the tool bar.
Step 5
The connect dialog box will appear.
