Larson Davis System 824 User Manual

11/8/00 Introduction 1-11
mic
Preamplifier
0-50 dB gain
Flat, A-Wt C-Wt or 10kHz Flat, A-Wt
C-Wt or 10kHz
Analog to Digital Converter
Digital Signal Processor
AC/DC out
Mux
Frequency Detection
Analog to Digital Converter
External Power
Battery
Temperature
Sensor
Power Supply
Control I/O
Microprocessor
RAM
1/2 to 2 MB
Flash ROM
Real-time clock
and calendar
Serial I/O
Key Pad
Graphic Liquid Crystal Display (LCD) 128x64 with backlight
RS-422/232 transceiver
DC out
AC out
AC out
0-50 dB gain

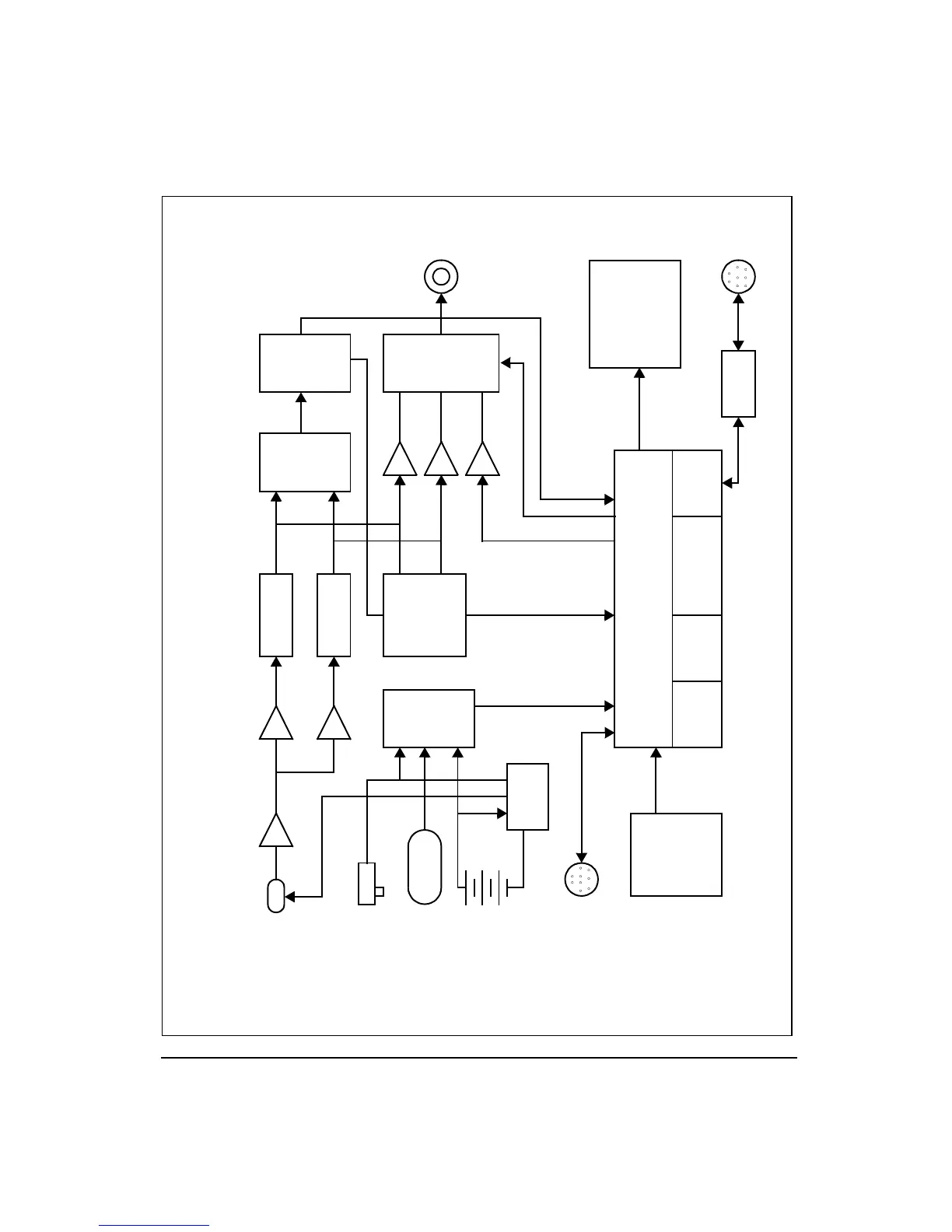

824 System diagram
Serial I/O
Figdfdsafdsa
Sysjklsfdakjl;fasdjl;kasdflj;ksdfal;jkklj;k
l
Figure 1-6
System Diagram
polarization

Larson Davis System 824 Specifications

General

Brand	Larson Davis
Model	System 824
Category	Measuring Instruments
Language	English
