12-10 824 Reference Manual 11/8/00

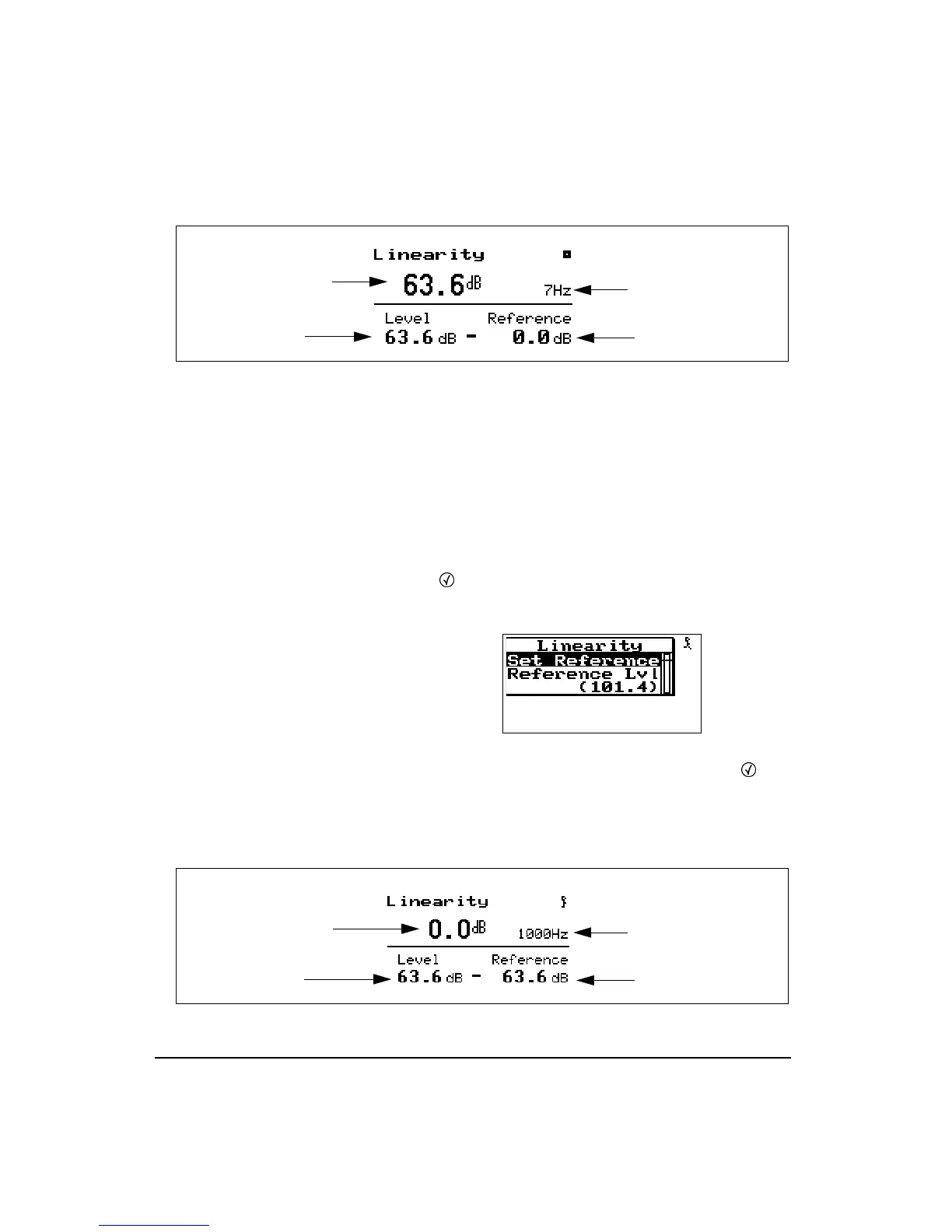

In order to measure the amplitude linearity of your system,
input a signal as a reference amplitude and frequency. You
will see the actual level minus the reference level displayed
in the upper left of your screen as the
Fundamental - refer-
ence
.
The incoming frequency will be shown on the upper
right of the screen as the
Fundamental frequency
. The
Fun-
damental level
always shows the actual dB level coming
into the 824.
To set the incoming signal as the reference, press the check
key
to enter the Linearity check menu.
You may also enter the reference
level numerically by adjusting the
“Reference Lvl” setting.
Highlight “Set Reference” and press the check key
. The
reference level is then set to the current fundamental level
and you will be returned to the Linearity screen.
Fundamental-reference
Fundamental level
Reference level
Fundamental frequency
Fundamental-reference
Fundamental level
Reference level
Fundamental frequency
