XY Display Setup
1. In the menu bar, touch Display; then touch Display Setup... in the drop-down menu.

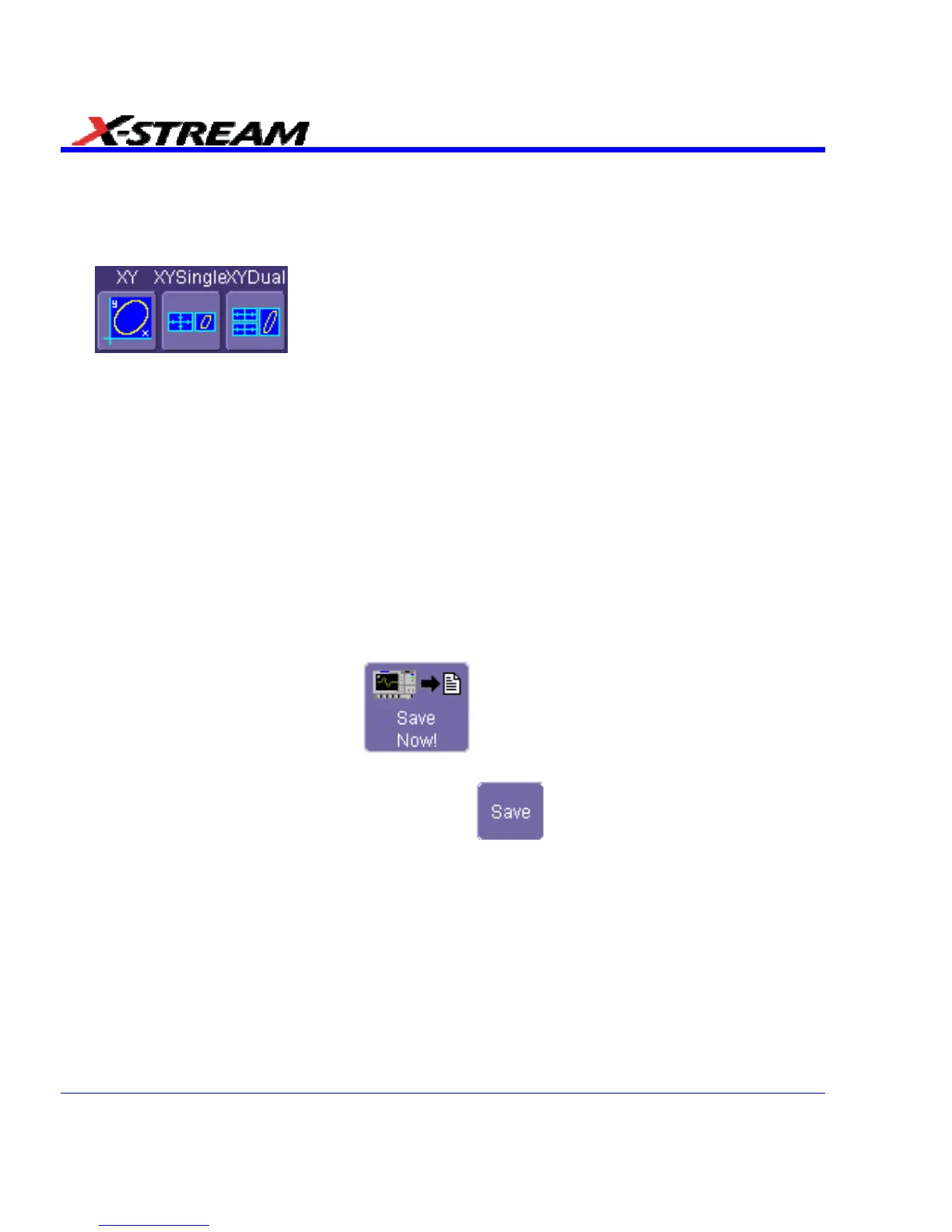

2. Choose an XY display by touching one of the XY display mode buttons
. You have the choice of showing the two waveforms on just the XY
grid, or you can also show the input waveforms on a single or dual grid.
3. Touch inside the Input X and Input Y data entry fields and select your input sources from the
pop-up menus. The inputs can be any combination of channels, math functions, and memory
locations.
SAVE AND RECALL
Saving and Recalling Scope Settings
You can save or recall scope settings to or from hard disk, floppy disk, or LAN location.
Saving Scope Settings
1. In the menu bar, touch File; then touch Save Setup... in the drop-down menu. Or, press the
Save/Recall front panel button, then touch the "Save Setup" tab.
2. To Save To File, touch inside the Save Instrument Settings data entry field and use the
pop-up keyboard to enter the path to the destination folder. Or touch Browse to navigate to
the destination folder. Then touch
below the data entry field. To save to folder
Internal Setups on the scope's hard drive, touch inside a SetupX data entry field and use
the pop-up keyboard to enter a file name. Touch
alongside the data entry field. The
file is deposited in D:\Internal Setups, and the current date is displayed above the field.
