Connecting the Adapters

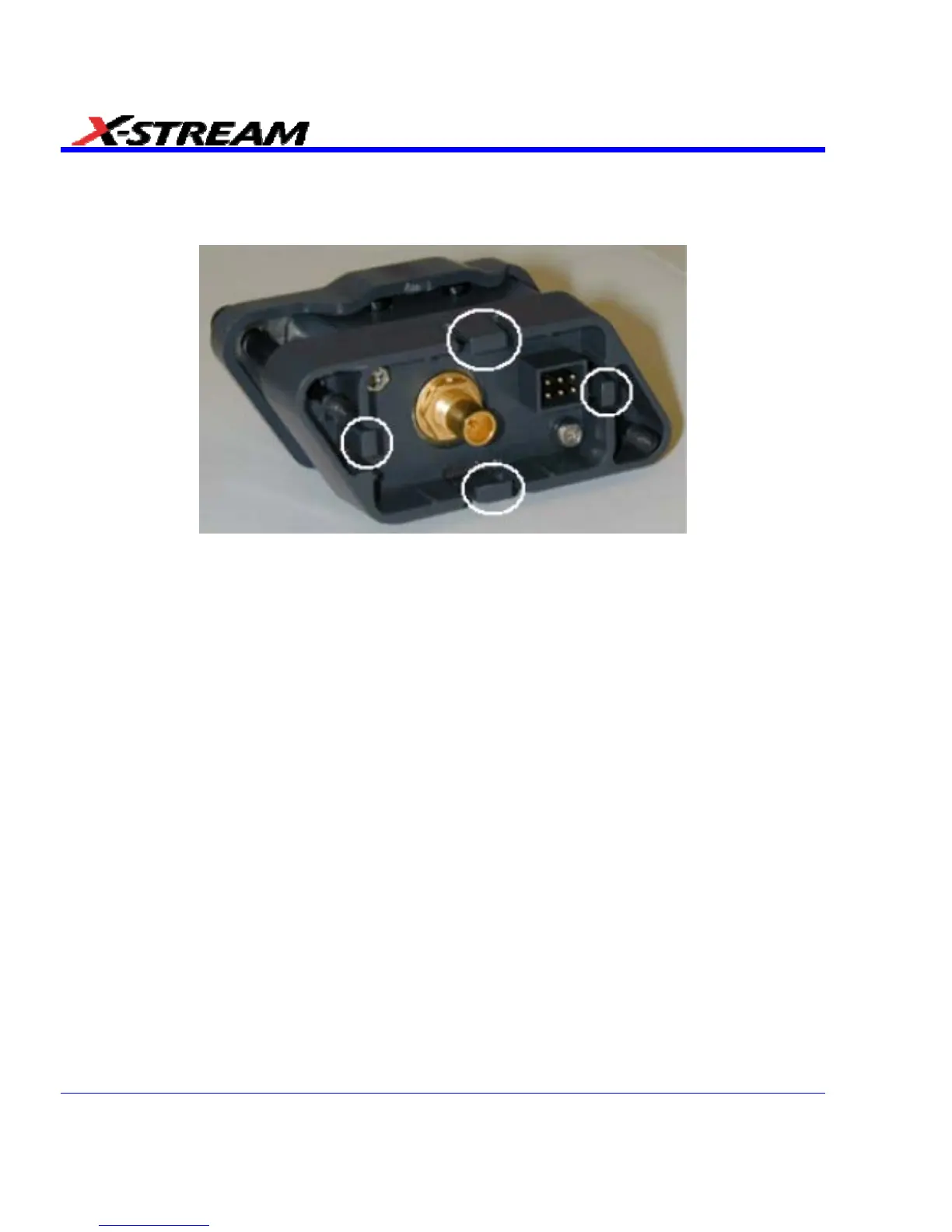

The mating end of the ProLink adapter has four fastening clips, as shown here:
When installing an adapter on the instrument's connector panel, align the male 6-pin connector
with the female connector and push the adapter straight in. There will be some resistance and
you'll hear clicks as the four clips slide into place. Then tighten the captive screws.
When removing an adapter, loosen the two captive screws. Push down on the adapter to unseat
the clips. This will require some force and will be initially noisy, but no damage will result to the
connector, the floating female BMA connector, or the pins, which can be 15 degrees off axis
when being mated or unmated.
58 SDA-OM-E Rev H
