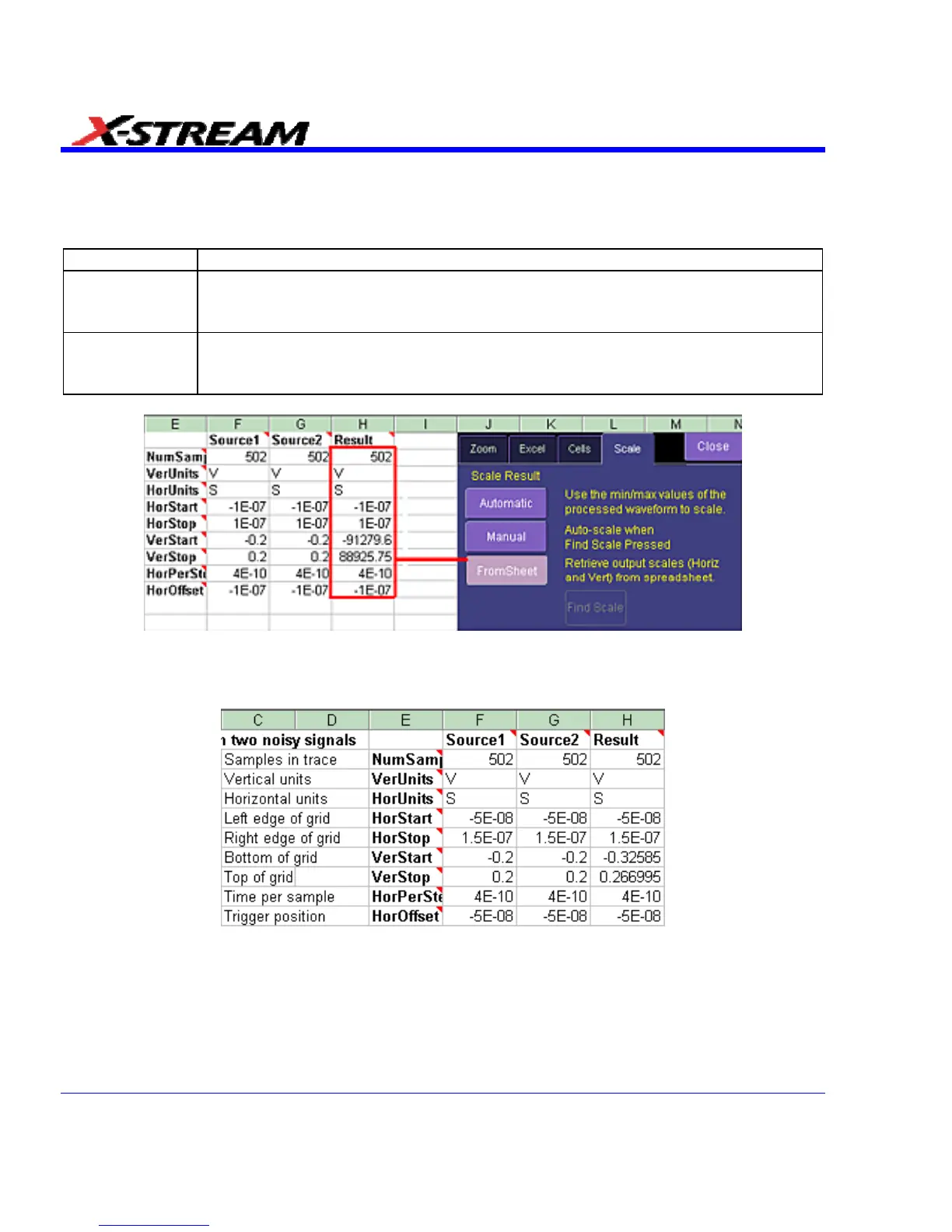

Setting the Vertical Scale
The vertical scale of the output waveform from Excel may be set in three ways:
Automatic
For each acquisition, the instrument fits the waveform into the grid.
Manual
For one acquisition, click Find Scale; the instrument fits the current waveform
into the grid. All subsequent acquisitions will use this scale until you make a
change.
From Sheet
The scale is taken from the specified cells in the Excel sheet, H2 through H10
in the example above, where cell H2 was specified as the top of the data set, as
depicted below.
Trace Descriptors
The next figure explains the meanings of the descriptors for each trace.
Multiple Inputs and Outputs
If you invoke two or more instrument parameter functions or waveform functions that call Excel,
you will find that they all refer to the same spreadsheet by default. Thus, your spreadsheet can
use the data from several waveforms, and you can derive many different combinations of output
parameters and waveforms, including some of each, from your spreadsheet. You only have to be
careful about the positioning of your cell ranges within the sheet so that no conflicts occur.
230 SDA-OM-E Rev H
