Serial Trigge
r Setup

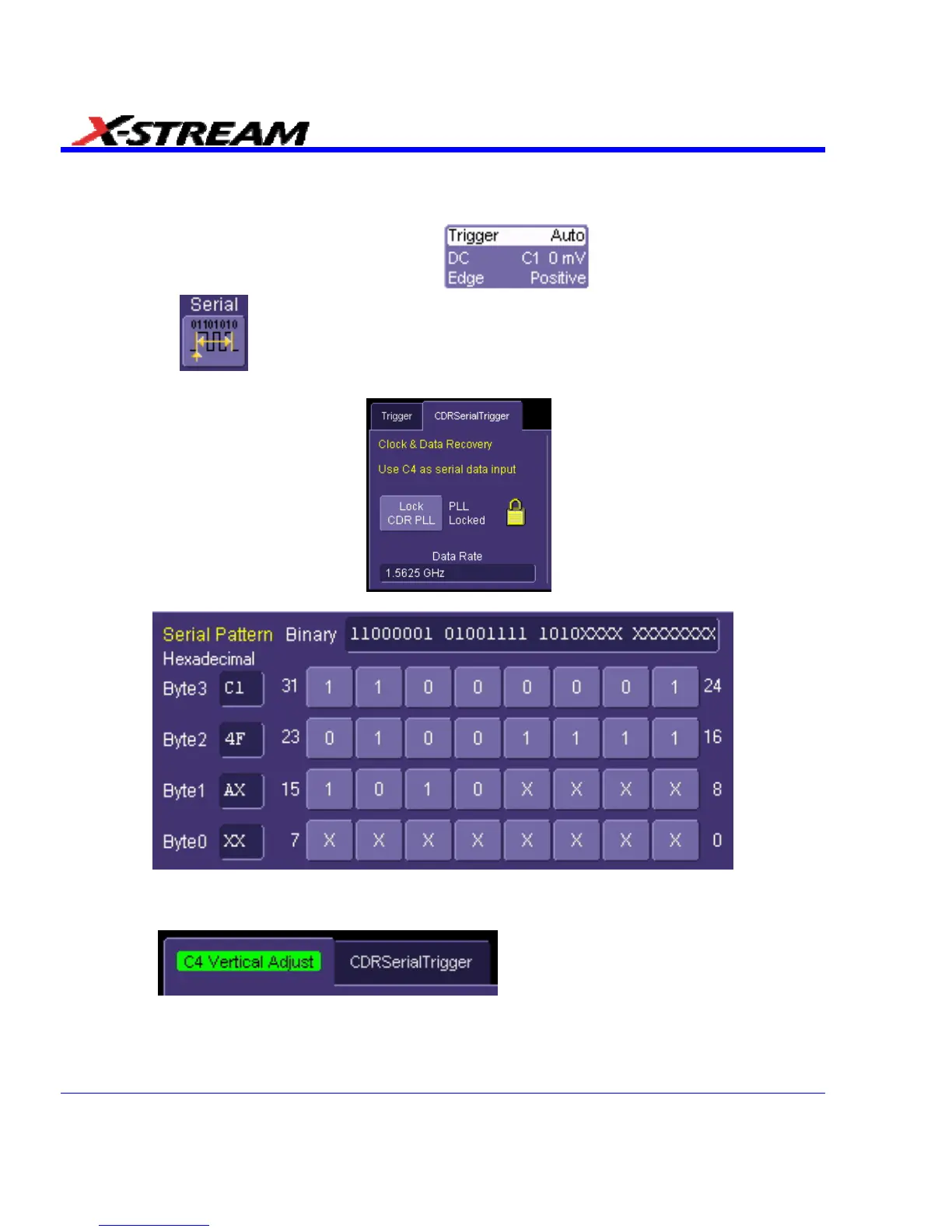

The serial trigger dialog is
accessible from two differe
nt menus.
•
By touching the
Trigger
descrip
tor label
, then the
Serial Trigger
button
, you can access the trigger phase locked loop
and set the data pattern
on which to trigger:
•
It is also accessible from the channel 4 "
Vertical Adjust" dialog:
322
SDA-OM-E Rev
H
321
323
