Creating Y
our Ow
n MA
TLAB Func
tion
The procedure is simple. Create a MATLAB function using any text editor, and sa
ve it as a
MATLAB m-file by giving it a name of the form Filename.m. Call the function using the MATLAB
math editor or the MATLAB parameter editor a

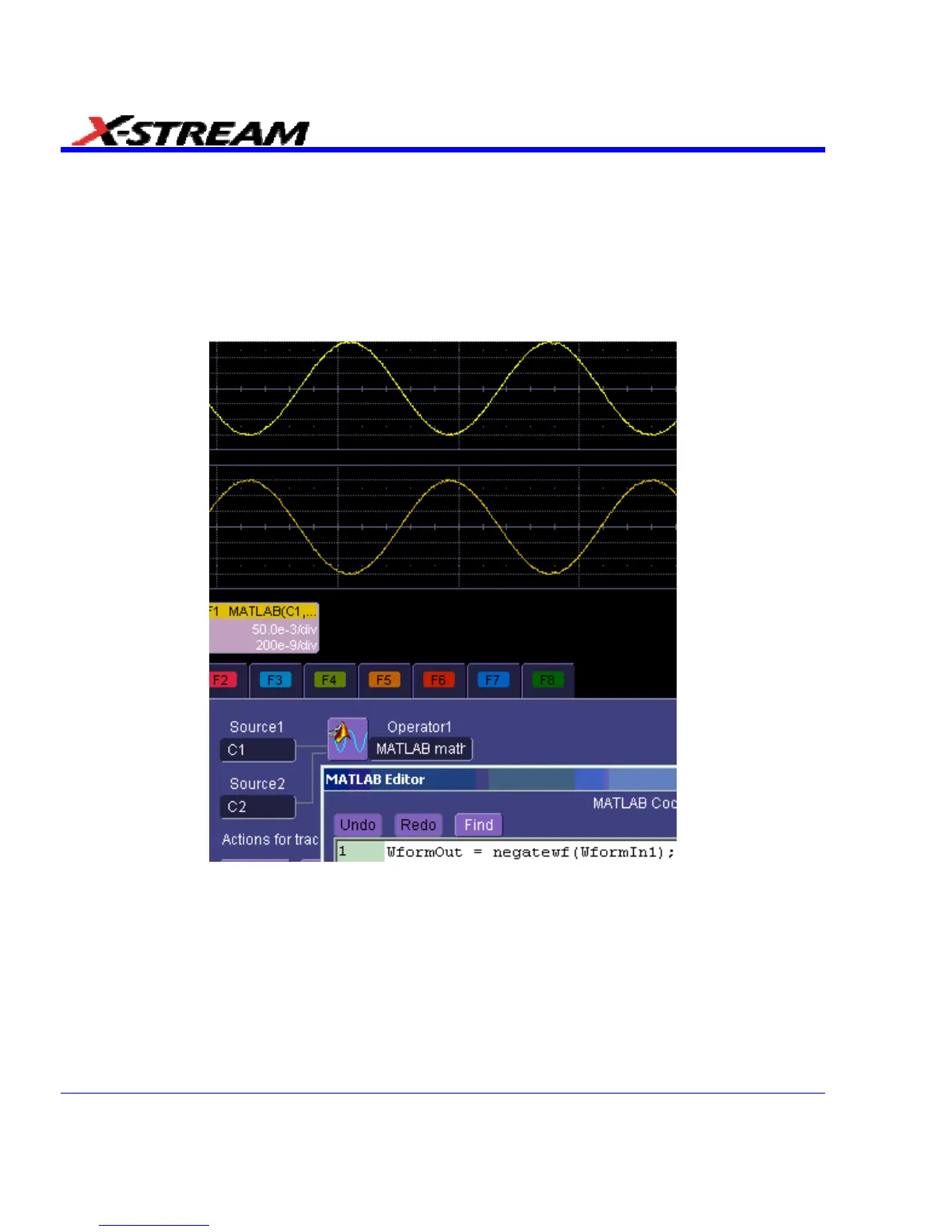

s appropriate. A simple example is shown belo
w.
function out = negatewf(wf1)
% NEGATEWF changes the sign of all the data.
out = -wf1;
280
SDA-OM-E Rev
H
279
281
