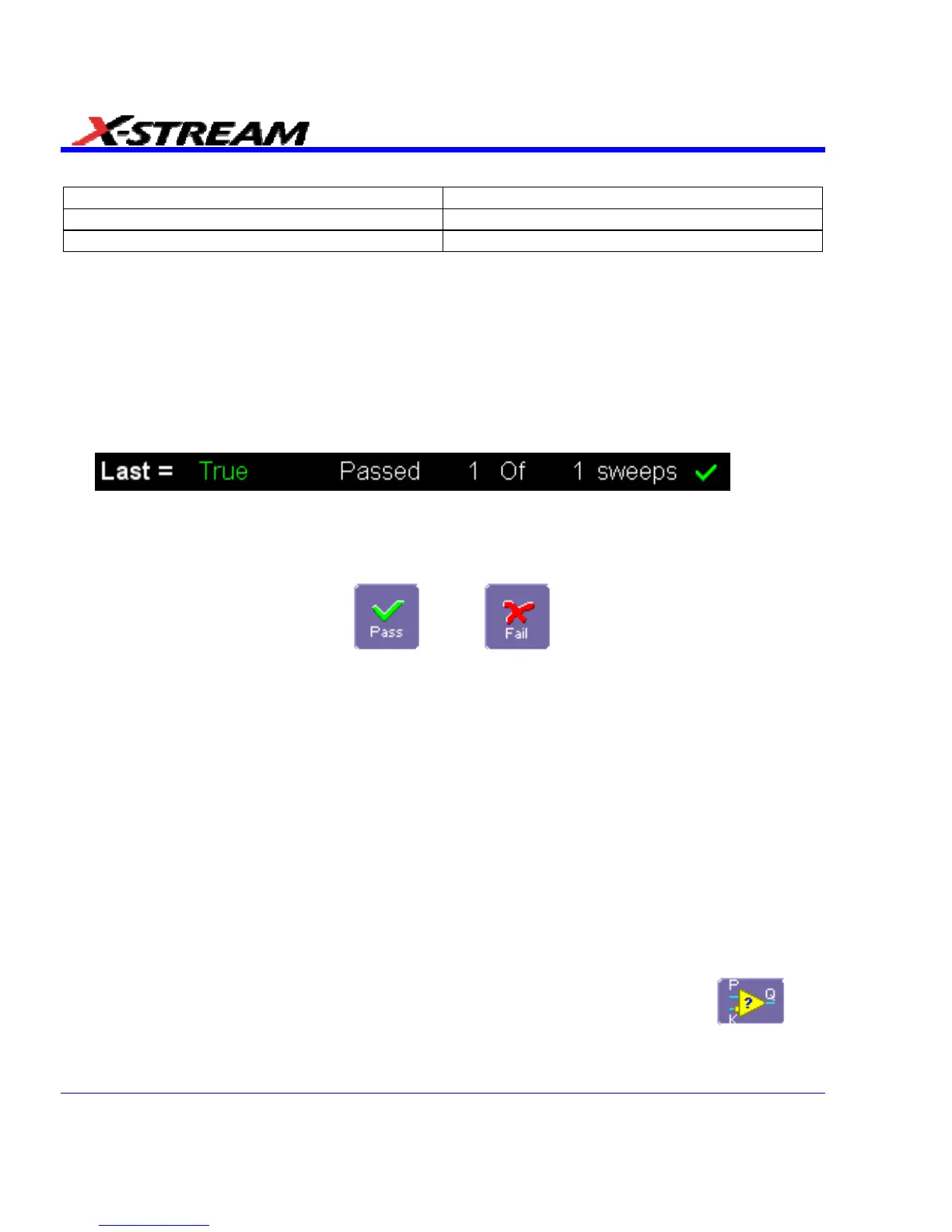

The boolean conditions to determine if your waveform passes are as follows:
All True All False
Any True Any False
All Q1 to Q4 Or All Q5 to Q8 Any Q1 to Q4 And Any Q5 to Q8
Setting Up Pass/Fail Testing
Initial Setup
1. Touch Analysis in the menu bar, then Pass/Fail Setup... in the drop-down menu.
2. Touch the Actions tab.
3. Touch the Enable Actions checkbox. This will cause the actions that you will select to occur
upon your waveform's passing or failing a test.
4. Touch the Summary View to enable a line of text that shows concisely the status of your last
waveform and keeps a running count of how many sweeps have passed:
5. Touch inside the Pass If field, and select a boolean condition from the pop-up menu.
6. If you want to set up the test to end after a finite number of sweeps, touch the Stop Test
checkbox. Then touch inside the After data entry field and enter a value, using the pop-up
numeric keypad.
7. Under "If", touch either the Pass
or Fail button to set the actions to occur
upon your waveform's passing or failing the test.
8. Under "Then", touch the actions you want to occur: stop test, sound alarm, print result, emit
pulse, or save the waveform. If you want to have the results printed and your scope is not
equipped with a printer, be sure that the it is connected to a local or network printer. See
Printing.
9. If you want to save your waveform automatically, touch the Save Setup. This will take you
out of the current dialog and will open the "Save Waveform" dialog. See Saving and Recalling
Waveforms.
10. Test your Pass/Fail conditions by touching the Force Actions Once button. Press the Clear
All button to quickly uncheck all checkboxes if you want to change your selections.
Comparing a Single Parameter
1. Touch Analysis in the menu bar, then Pass/Fail Setup... in the drop-down menu.
2. Touch a Qx tab; a setup dialog for that position will open.
3. Touch inside the Source1 field and select a source from the pop-up menu.
4. Touch inside the Condition field in the main dialog and select ParamCompare
.
206 SDA-OM-E Rev H
