SDA Operator’s Manual
You can also use Sequence mode in remote operation to take full advantage of the instrument's
high data-transfer capability.

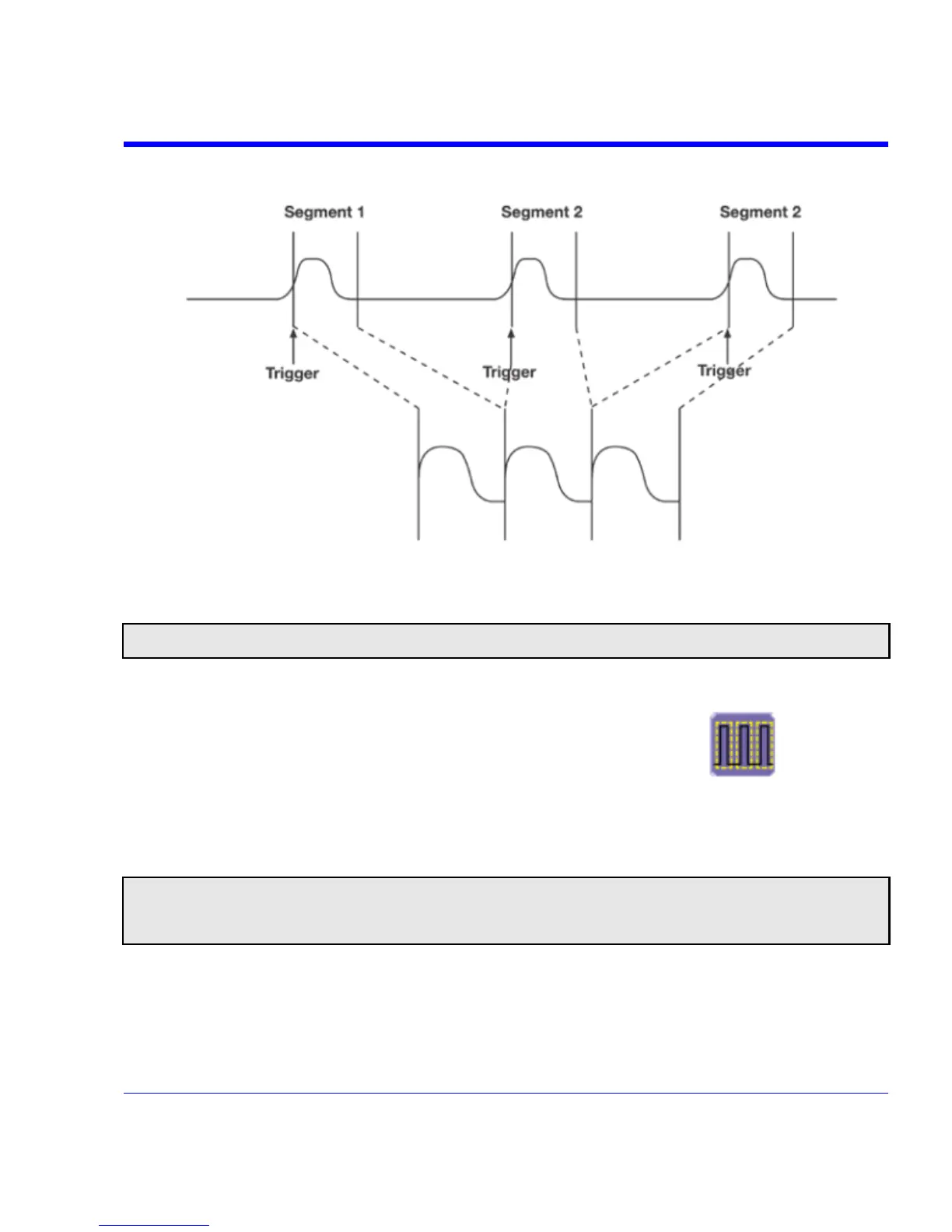

How the instrument captures segments
Sequence Mode Setup
Note: Once a single acquisition has started, you can interrupt the acquisition at any time by pressing the Single front
panel button a second time. In this case, the segments already acquired will be retained in memory.
1. In the menu bar, touch Timebase, then touch Horizontal Setup... in the drop-down menu.
2. Touch the Smart Memory tab, then touch the Sequence mode button
.
3. Under Sequence Options, touch inside the Num Segments data entry field and enter the
number of segments you want to display, using the pop-up keypad.
4. Touch inside the Timeout data entry field and enter a timeout value.
Note: The timeout period accounts for instances when a Num Segments miscount occurs for some reason and the
scope waits indefinitely for an unforthcoming segment. During that time, no scope functions are accessible. By means of a
timeout value, however, the acquisition will be completed, the waveform displayed, and control of the scope returned to
the user after the timeout has elapsed.
5. Touch the Enable Timeout checkbox.
6. In the menu bar, touch Display, then Display Setup... in the drop-down menu.
SDA-OM-E Rev H 63
