Shown (as follows) the TimeBase and Trigger labels are
setup information for horizontal cursors, including the time
between cursors and the frequency.
Trace Annotation

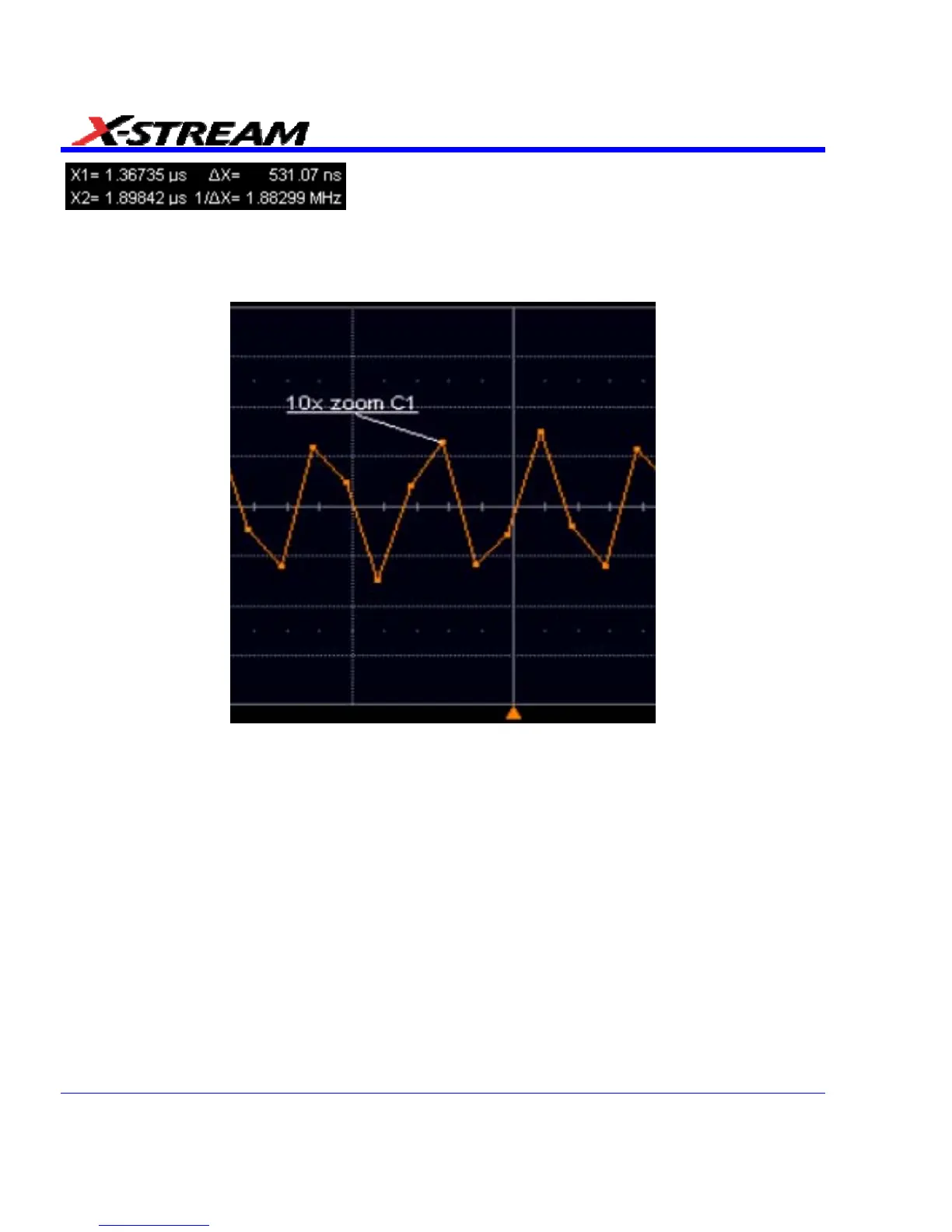

The instrument gives you the ability to add an identifying label, bearing your own text, to a
waveform display:
For each waveform, you can create multiple labels and turn them all on or all off. Also, you can
position them on the waveform by dragging or by specifying an exact horizontal position.
