SDA Operator’s Manual
The instrument does not just provide connectivity with data downloads to other programs. It
provides true customizable interaction with these other programs, and allows you to truly
customize the scope to do the exact job you want it to do. The advantages to this are many:
• You can use the standard processing power of the instrument to do most of your calculations
• You only need to write the function, parameter, display algorithm, etc. that specifically applies
to your need and that the instrument doesn’t contain.
• You can view the final result on the instrument display, and use all of the instrument's tools to
understand the result.
• You can do additional processing on the result by applying either standard instrument
parameters, functions, etc. to the returned result, or even more powerfully, adding chained
customized functions. For example, you can do an Excel calculation on a result with a
MATLAB function applied to it.
Solutions
Engineers do not buy equipment; they buy solutions. But what solutions can be reached from a
set of instrument waveform data? The answer is, in principle, anything that can be logically
derived from those data, given the limitations of signal-to-noise ratio and processing time. Here
are some examples of what can be done with a customized instrument:
• Changing the units of a grid to joules, newtons, amps, etc.
• Creating a new waveform by manipulating the data of one or two input waveforms
• Creating a new waveform without using any of the input data
• Creating a new parameter by manipulating the data of one or two input waveforms
• Changing a vertical scale or a horizontal scale from linear to non-linear
You don’t have to use all the data from the input waveforms: you can select data from one or
more segments, which need not be aligned in the two-input waveforms.
Examples

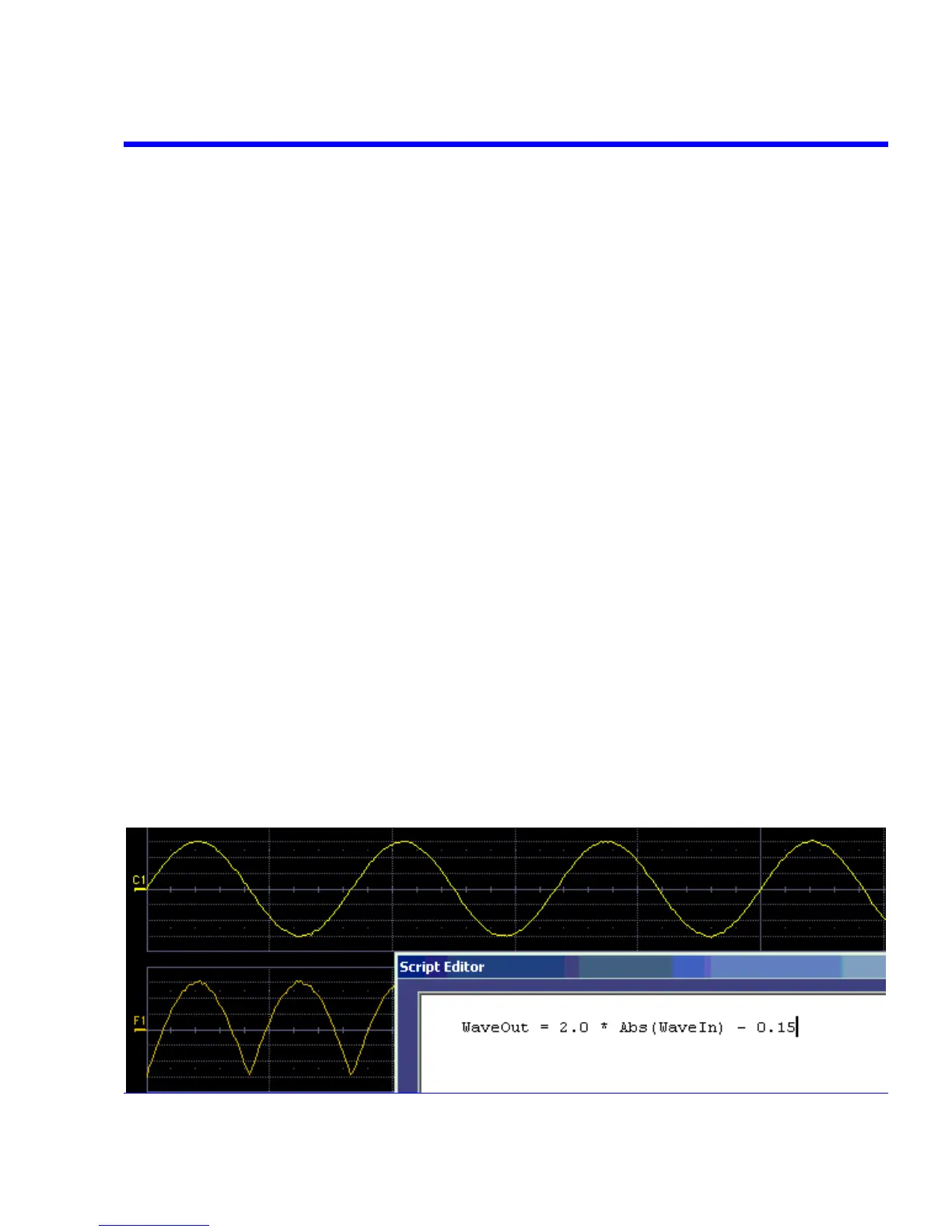

Example 1: Simple math functions using VBScript
SDA-OM-E Rev H 219
