SDA Operator’s Manual
Roll Mode
Roll mode applies only to WavePro 7000 and WaveRunner 6000 series scopes. It is invoked
automatically when the time per division is 500 ms/div or greater. However, you can cancel Roll
Mode and return to Real Time mode at any time.
Roll mode displays, in real time, incoming points in single-shot acquisitions that have a sufficiently
low data rate. The oscilloscope rolls the incoming data continuously across the screen until a
trigger event is detected and the acquisition is complete. The parameters or math functions
connected to each channel are updated every time the roll mode buffer is updated, as if new data
is available. This resets statistics on every step of Roll mode that is valid because of new data.
Note: If the processing time is greater than the acquire time, the data in memory gets overwritten. In this case, the
instrument issues the warning: Channel data is not continuous in ROLL mode!!! and rolling will start over again.
VERTICAL SETTINGS AND CHANNEL CONTROLS

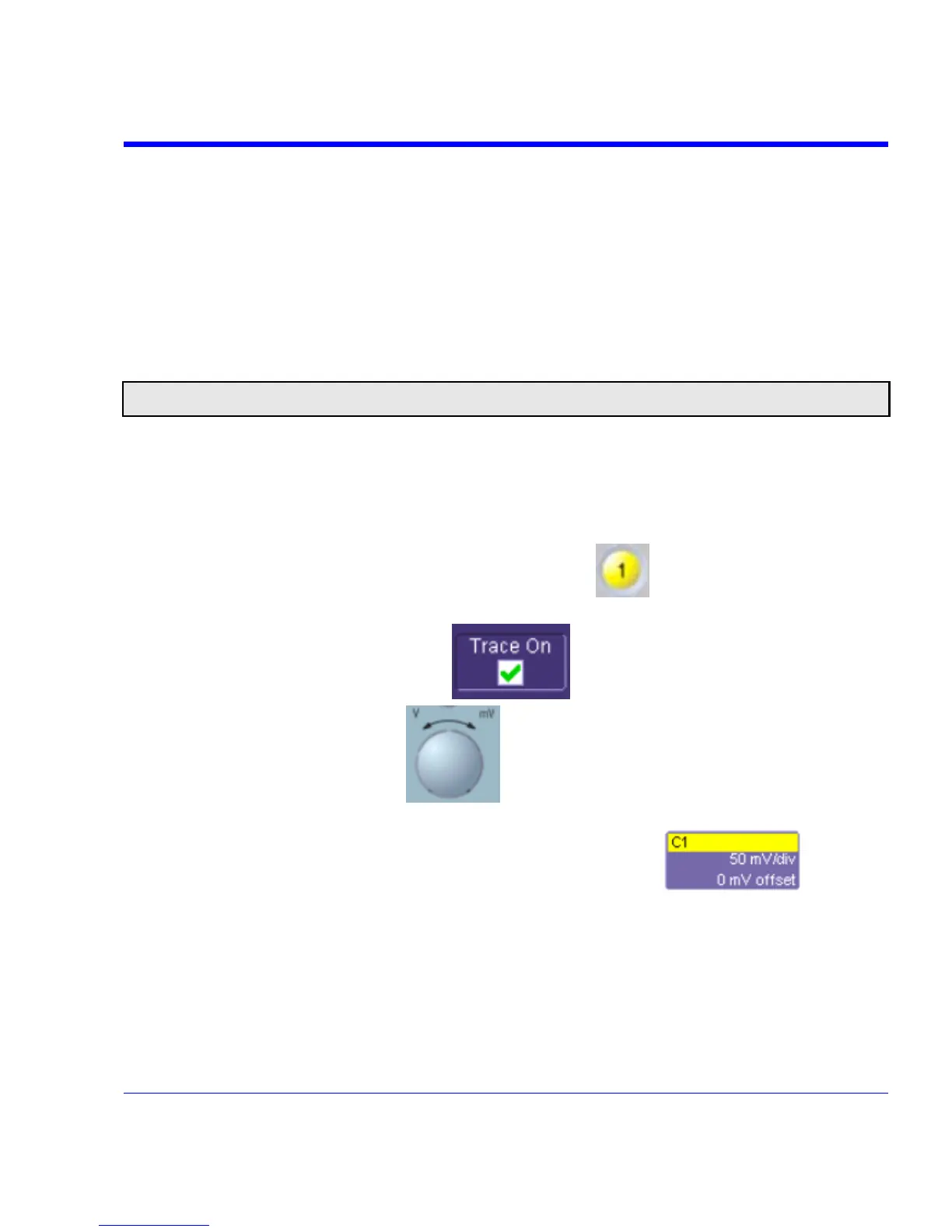

Adjusting Sensitivity and Position
Adjusting Sensitivity
1. Press the appropriate channel push button, for example
to turn on channel 1. Or
touch Vertical in the menu bar, then Channel 1 in the drop-down menu.
2. Touch inside the Trace On checkbox
to display the trace.
3. Turn the volts per division knob
for the selected channel. Or you can touch inside
the Volts/Div field and type in a value using the pop-up keypad, or use the up/down arrows.
4. The voltage that you set is displayed in the trace descriptor label
and in the
Volts/Div field.
SDA-OM-E Rev H 67
