LeCroy SDA - The Relationship between the Inverse Error Function and Total Jitter

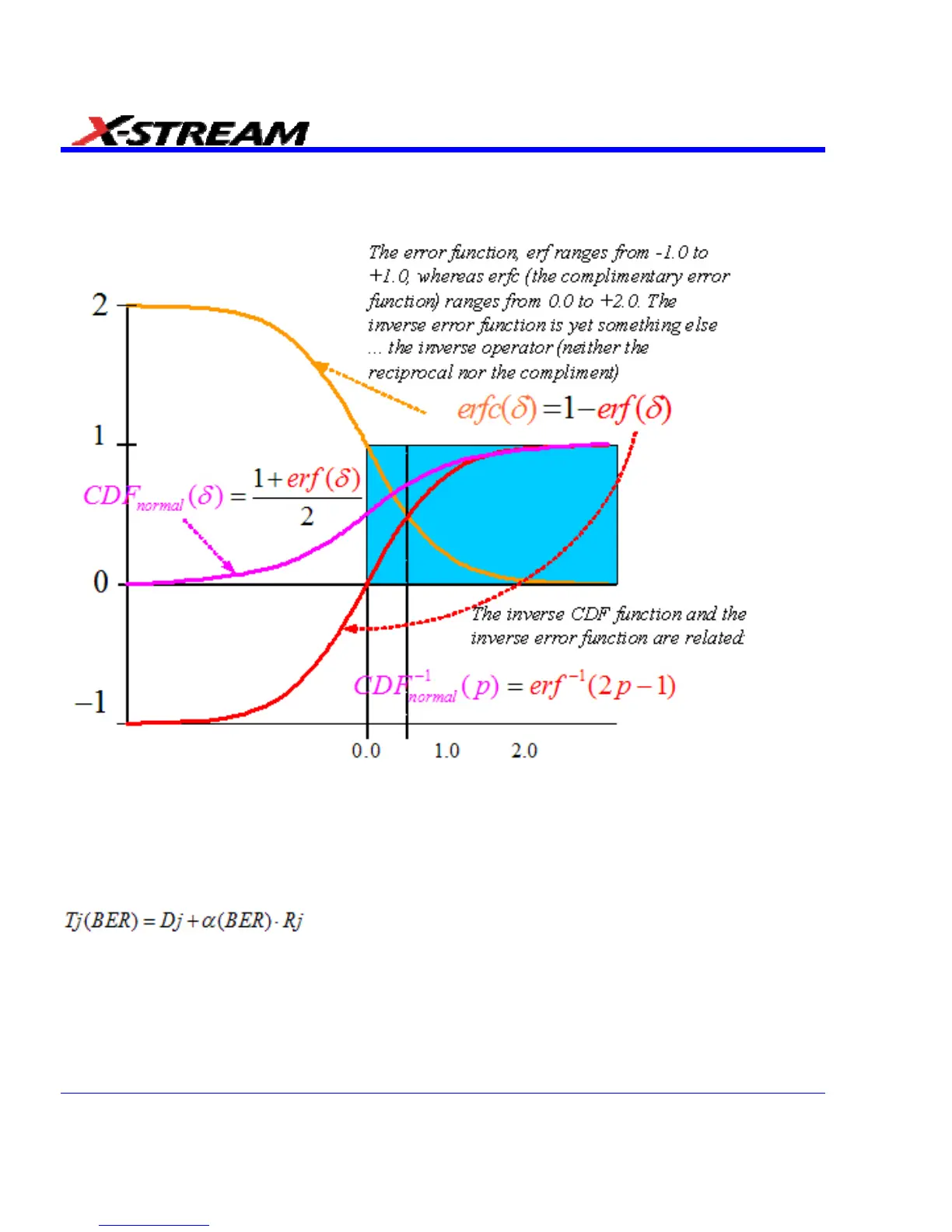

The following figure ca shapes of these functions in perspective. In
particular, rememb se the complementary error function (erfc) with the inverse error
function (erf
-1
).
n help to put the general
er not to confu
The Relationship between the Inverse Error Function and Total Jitter
It is noteworthy that the inverse error function has no closed analytical form. It is also noteworthy
that the heuristic jitter equation is linearly related to this inverse error function. Recall this
equation:
390 SDA-OM-E Rev H
