Another key feature of the Processing Web is that you can preview your waveform at any math or

parameter node in the web. Math previews are thumbnail images of the waveform. For

parameters, the statistic displayed is the value of the last acquisition.

Once you have created a Processing Web setup, you can save and recall it for future use, the

same as for any panel setup.

Using the Web Editor

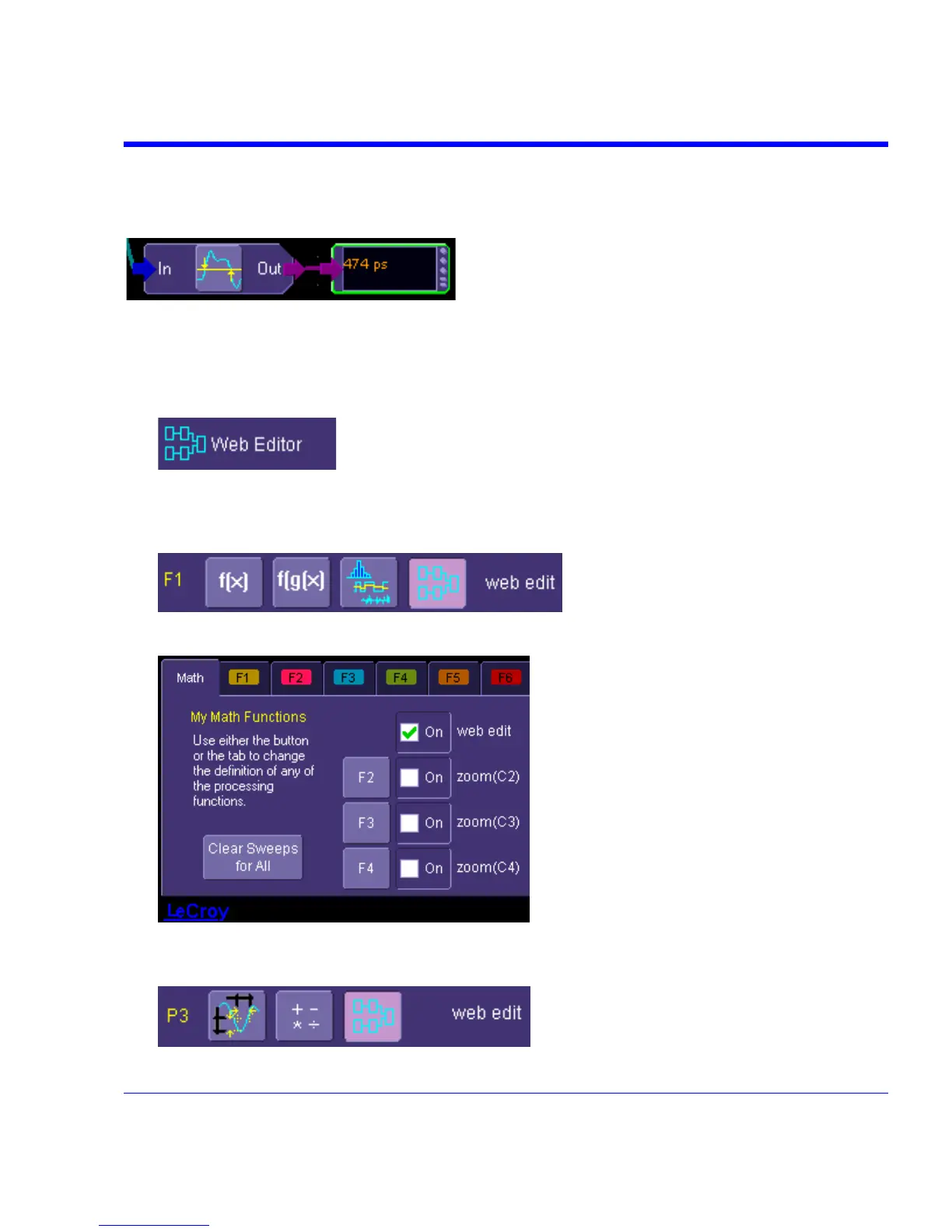

1. In the menu bar, touch Display, then Web Editor in the drop-down menu.

2. Touch the Math tab and select a math location (F1 to Fx [The number of math traces

available depends on the software options loaded on your scope. See Specifications.]) for the

new math function that you are about to create by touching the Web Edit button:

. Once you select a math location for web

editing, it cannot be used for another math function, and will appear as unavailable in the

Math Setup dialog:

However, you can cancel web processing within the "Math Setup" dialog by touching the

single function, double function, or graph button. Touch the Measure tab, then touch the Web

Edit button, if you want to dedicate a parameter location (P1 to Px) for web processing:
