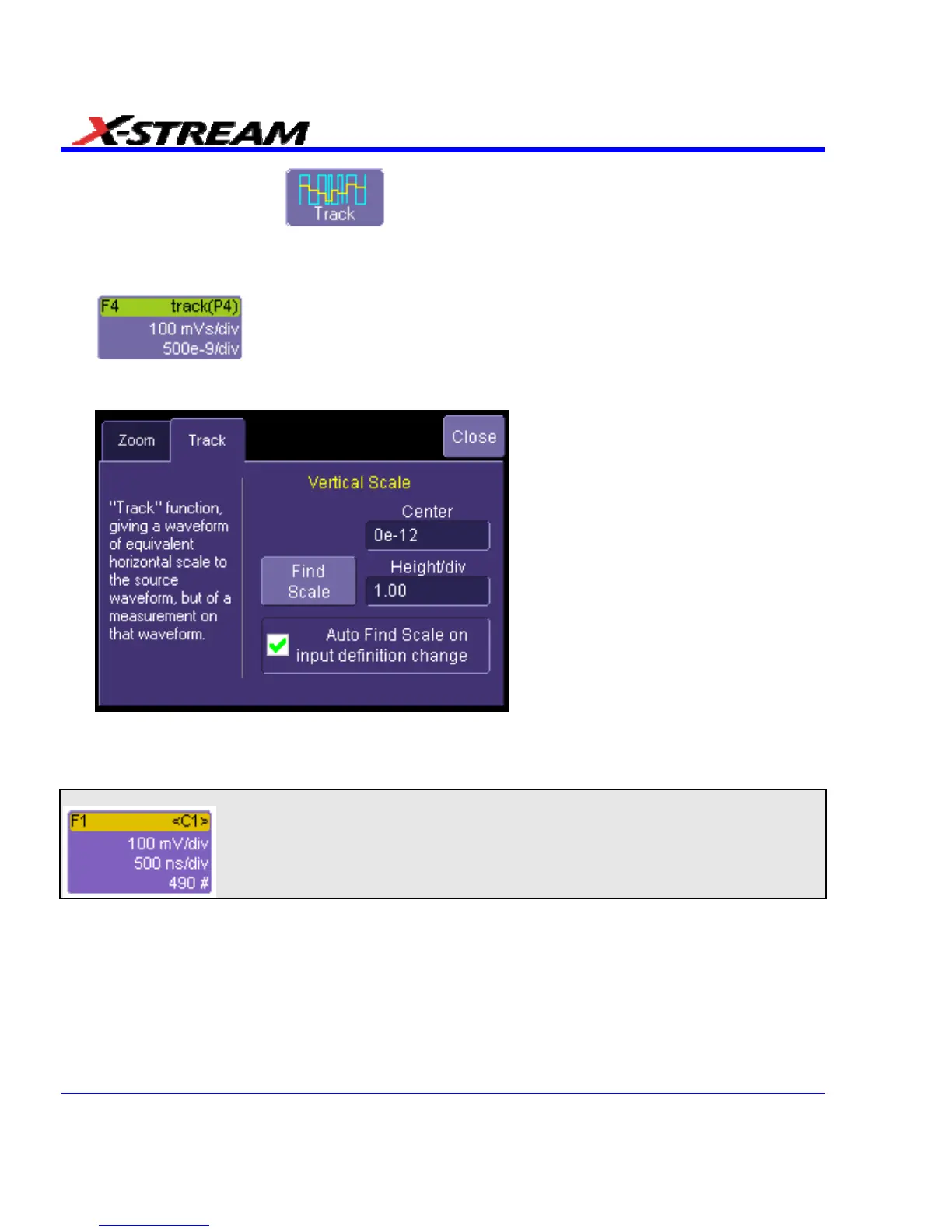

5. Touch the Track button at the bottom of the dialog; then, from the Math
selection for Track menu, select a math function location (F1 to Fx The number of math
traces available depends on the software options loaded on your scope. See specifications.)
to store the Track display. The Track will be displayed along with the trace label
Example Track Trace Label for the math function you selected.
6. Touch the newly displayed Track math function trace label if you want to change any settings
in the Track dialog:
HISTOGRAMS
Creating and Viewing a Histogram
Note: The number of sweeps comprising the histogram will be displayed in the bottom line of the trace descriptor label:
Single Parameter Histogram Setup
From Measure Dialog
1. In the menu bar, touch Measure, then Measure Setup.
2. Touch the My Measure button.
3. Touch one of tabs P1 through Px.
4. Touch inside the Source1 field and select an input waveform from the pop-up menu.
5. Touch inside the Measure field and select a parameter from the pop-up menu.
116 SDA-OM-E Rev H
