Quick Access to Parameter Setup Dialogs

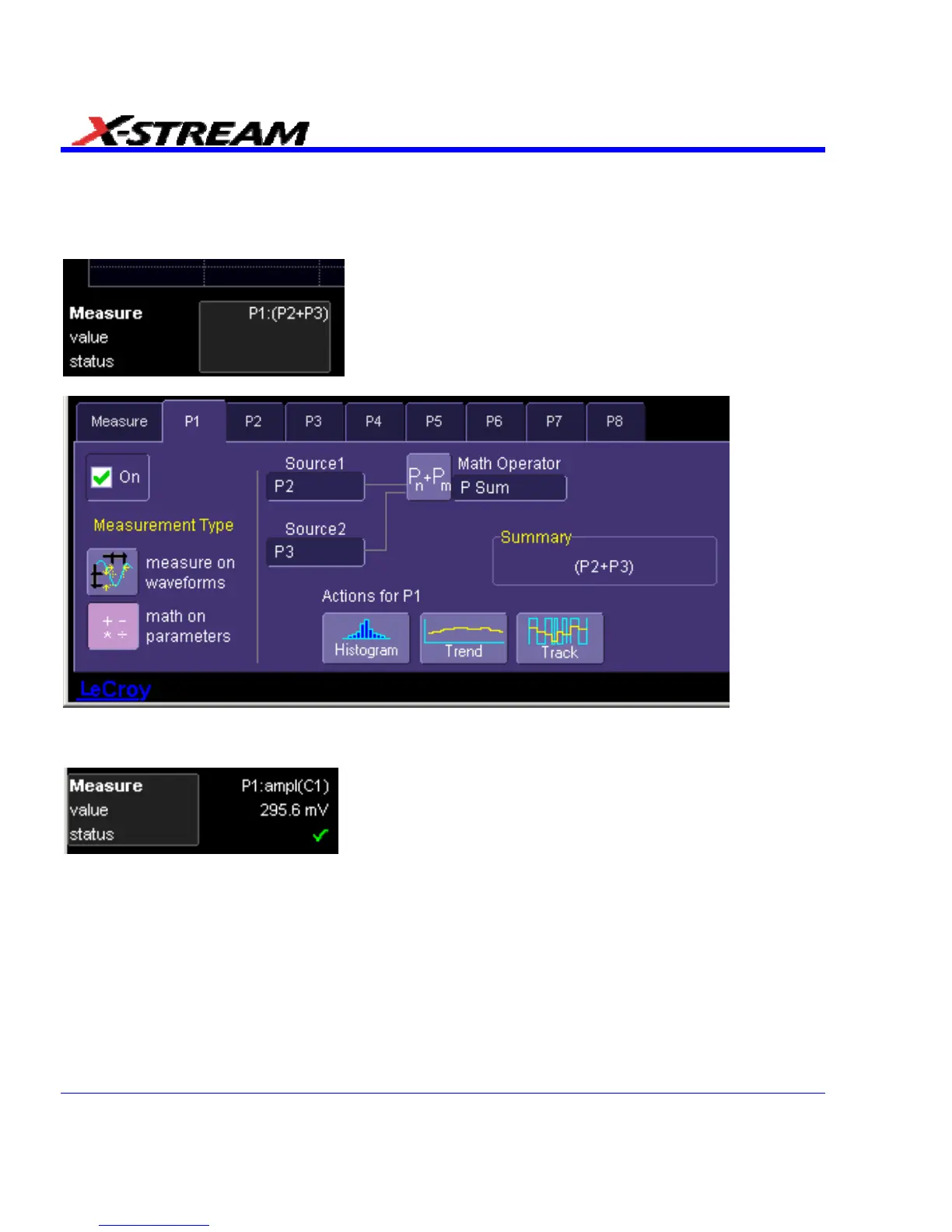

You can quickly gain access to a parameter setup dialog by touching the parameter list box below

the grid. For example, touching within P1 below the grid displays the setup dialog for P1:

Touching the row titles displays the top Measure dialog.

138 SDA-OM-E Rev H
