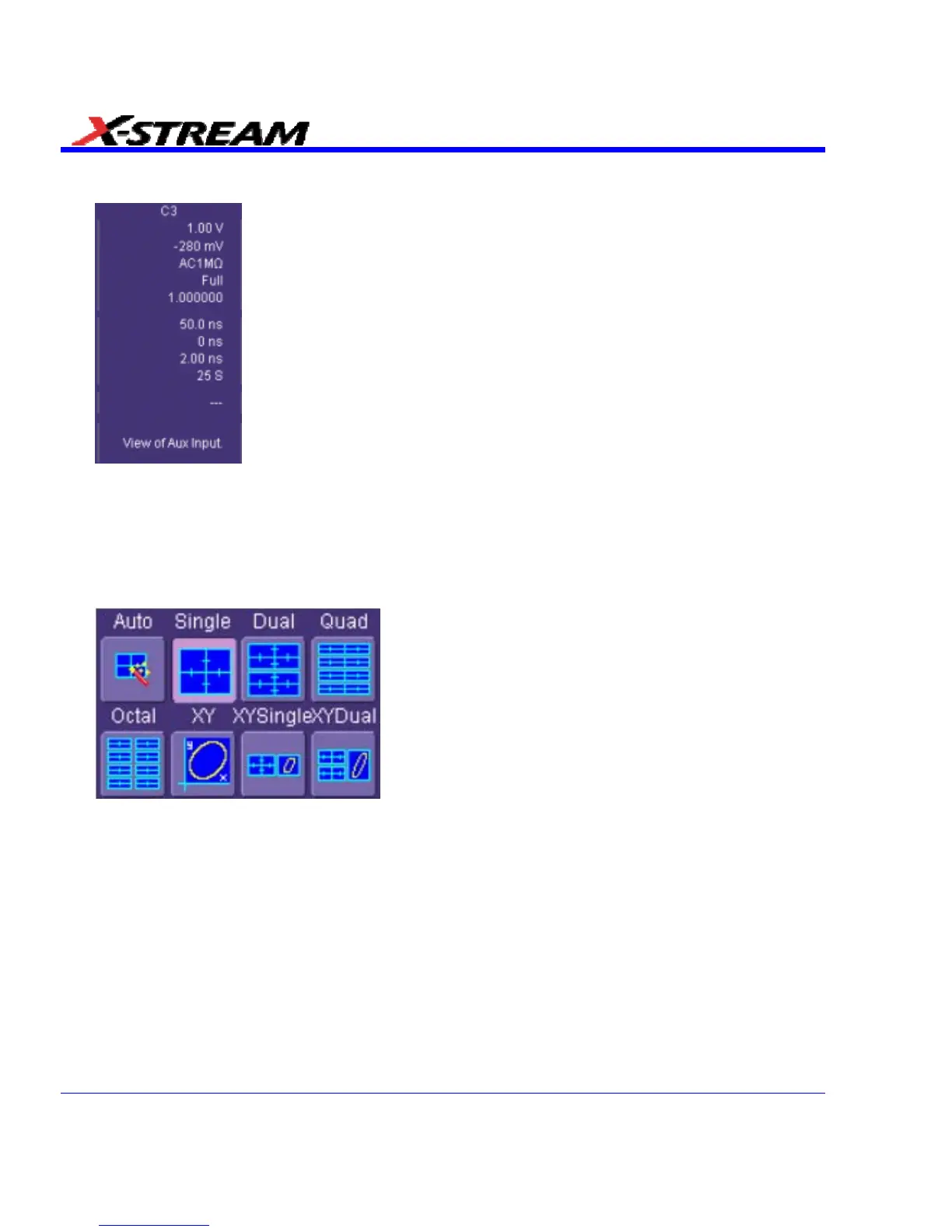

5. Touch Vertical in the menu bar, then Channels Status... in the drop-down menu to view a
summary of the Aux Input setup:
DISPLAY FORMATS
Display Setup
1. In the menu bar, touch Display; then touch Display Setup in the drop-down menu.
2. Touch one of the Grid combination buttons:
As selections are made, Autogrid automatically shows or removes grids from the scope
display.
3. Touch inside the grid Intensity data entry field and enter a value from 0 to 100 using the pop-
up keypad.
4. Touch the Grid on top checkbox if you want to superimpose the grid over the waveform.
Depending on the grid intensity, some of your waveform may be hidden from view when the
grid is placed on top. To undo, simply uncheck Grid on top.
5. Touch the Axis labels checkbox to permanently display the values of the top and bottom grid
lines (calculated from volts/div) and the extreme left and right grid lines (calculated from the
timebase).
96 SDA-OM-E Rev H
