SDA Operator’s Manual
SDA-OM-E Rev H 99

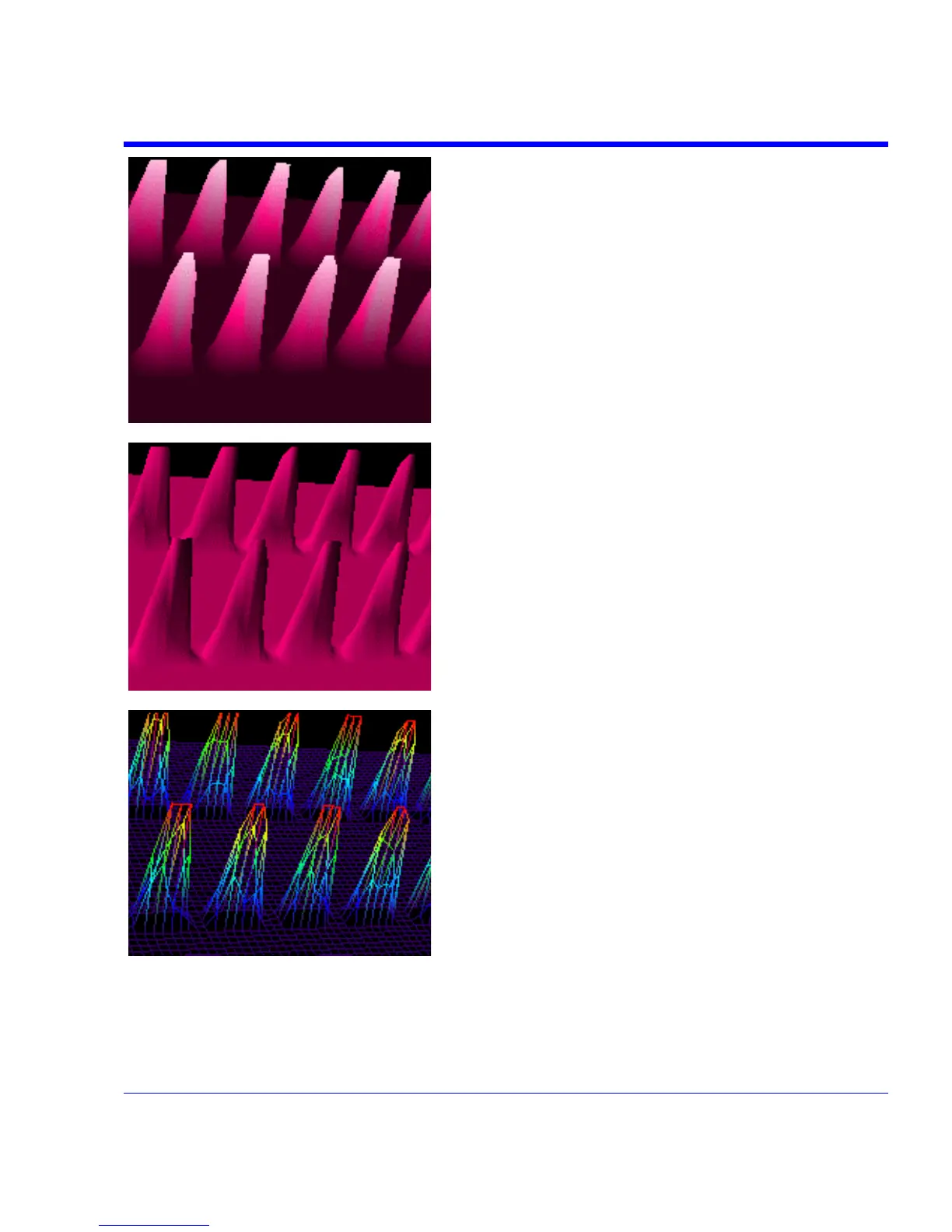

Here is a monochrome (analog) view of the same
waveform. The lightest areas indicate highest intensity,
corresponding to the red areas in the solid view.
Here is a shaded (projected light) view of the same
waveform. This view emphasizes the shape of the pulses.
Here is a wire frame view of the same waveform in which
lines of equal intensity are used to construct the
persistence map.
Show Last Trace
For most applications, you may not want to show the last trace because it will be superimposed
on top of your persistence display. In those cases turn off Show Last Trace by touching the
checkbox. However, if you are doing mask testing and want to see where the last trace is falling,
turn Show Last Trace on.
