1163 CustomDSO.ActionEnable1 = True
1164 CustomDSO.ActionScript1 = “c:\LeCroy\XStream\CustomDSO\B.lss”
1165 CustomDSO.ActionEnable1 = False
1166 CustomDSO.ActionScript1 = “c:\LeCroy\XStream\CustomDSO\C.lss”
1167 CustomDSO.ActionEnable1 = True
1168 CustomDSO.ActionScript1 = “c:\LeCroy\XStream\CustomDSO\A.lss”
1169 CustomDSO.ActionEnable1 = False
1160 Set CustomDSO = XStreamDSO.CustomDSO
1161 ‘ CustomDSO Setup C.lss
1162 CustomDSO.ActionScript1 = “c:\LeCroy\XStream\CustomDSO\A.lss”
1163 CustomDSO.ActionEnable1 = True
1164 CustomDSO.ActionScript1 = “c:\LeCroy\XStream\CustomDSO\B.lss”
1165 CustomDSO.ActionEnable1 = True
1166 CustomDSO.ActionScript1 = “c:\LeCroy\XStream\CustomDSO\C.lss”
1167 CustomDSO.ActionEnable1 = False
1168 CustomDSO.ActionScript1 = “c:\LeCroy\XStream\CustomDSO\A.lss”
1169 CustomDSO.ActionEnable1 = False
The text in green following a single quotation mark is a VBS comment and causes no action.
The text in red contains the path and name of the setup file associated with the numbered button.
This setup will be called when the button is pressed.
The boolean (in blue) decides whether the action button will invoke the setup or remain inactive.
For example, in setup B, A.lss and C.lss can be invoked, but not B, which is already in place.
As you see from the line numbers in the program fragments, the setup files are rather long
because they include all the information needed to set the DSO to the required state. But if you
want to make a very short file that changes only a few variables (for example, the action button
settings) you can make a file that includes only the relevant instructions. This usage assumes that
the remainder of the DSO is already in the required state. This is an example of the complete
compatibility of the instrument's software. The same commands can be used in setups, in scripts,
or in remote control commands in external programs, whether resident in the instrument or in an
external computer.
Creating a CustomDSO Setup File

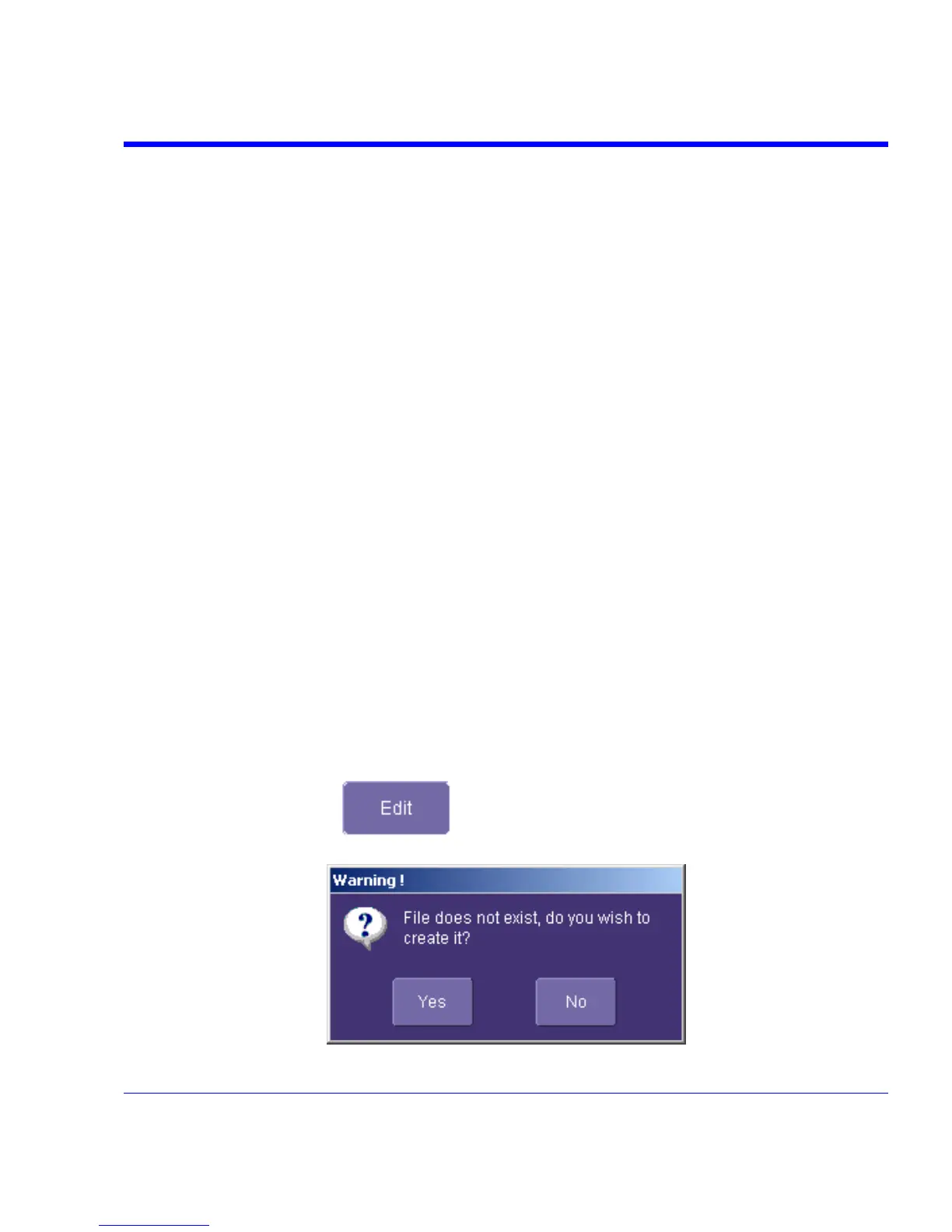

If you touch the Edit button when the Setup file to recall field contains the name
of a non-existent file, you will see a message like this:
If you then touch Yes, the DSO will display a file like this:
