SDA Operator’s Manual

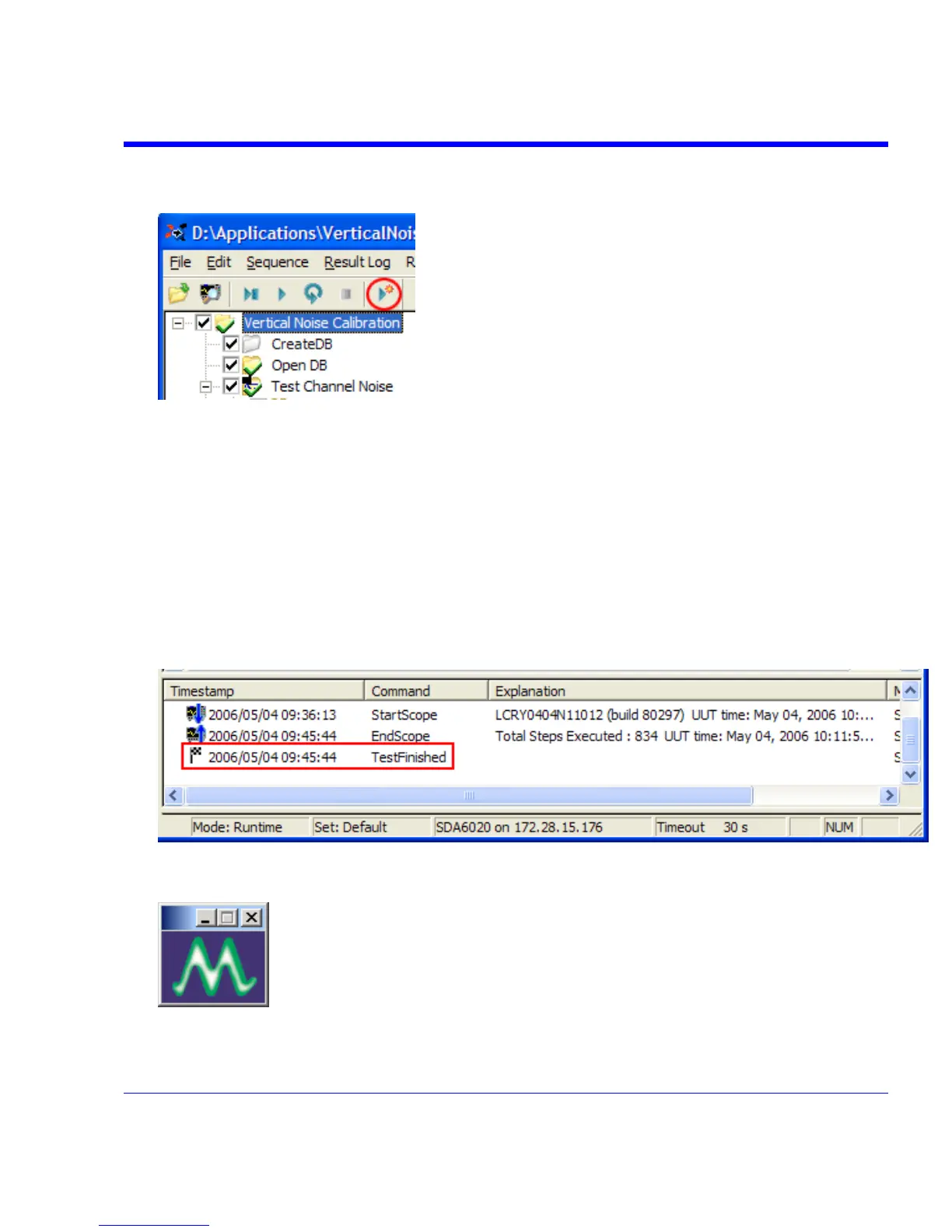

3. In the X-Replay toolbar, touch the Start a New Session button
4. Enter any pertinent information in the "Session Info" dialog box if desired, and touch OK.
5. A "Required connections" dialog box opens, which prompts you to detach any probes
connected to the scope. Touch OK when done, or you may Skip this test group.
6. If you opted to run the first part of the calibration in the previous step, each channel is tested
at two offset positions for each volts/div setting. Then a second dialog box opens, which
prompts you to attach any probes desired. Touch OK when done, or you may Skip this test
group.
7. When testing is finished, notification is given in the lower right-hand pane of the X-Replay
window:
Using Noise Compensation
1. Maximize the scope application window by touching the SDA task bar button or desktop icon:
2. Press the front panel S
ERIAL DATA button to open the "Serial Data" main dialog.
3. Touch the Jitter button, then the Adv. Control tab.
SDA-OM-E Rev H 331
