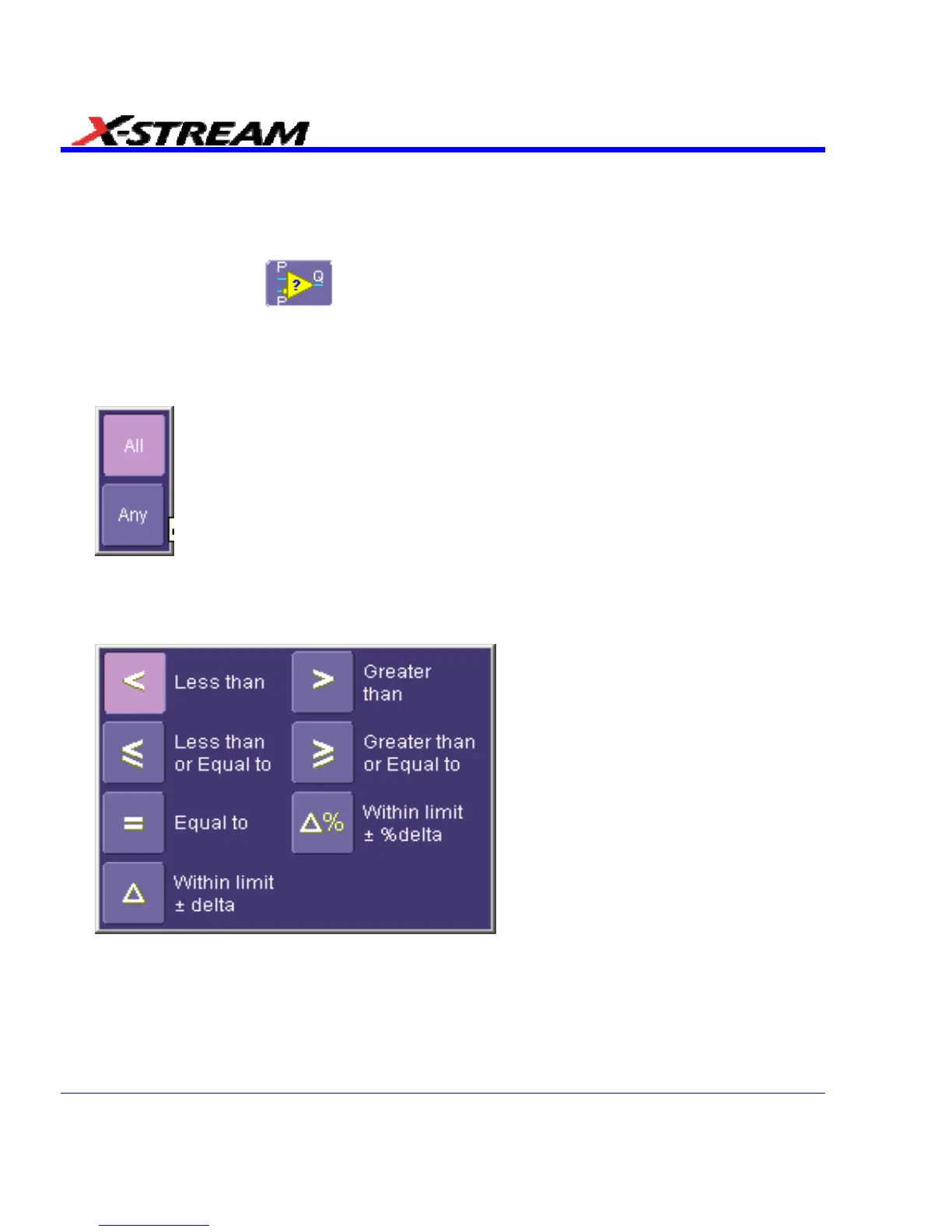

Comparing Dual Parameters
1. Touch Analysis in the menu bar, then Pass/Fail Setup... in the drop-down menu.
2. Touch a Qx tab; a setup dialog for that position will open.
3. Touch inside the Condition field in the main dialog and select
DualParamCompare
.
4. Touch inside the Source1 and Source2 fields and select a source from the pop-up menu.
5. Touch inside the "ParamCompare" mini-dialog field and select a source from the pop-up
menu.
6. Touch inside the Compare Values field and select All or Any from the pop-up menu:
.
By selecting All, the test will be true only if every waveform falls within the limit that you will
set. By selecting Any, the test will be true if just one waveform falls within the limit.
7. Touch inside the Condition field in the "ParamCompare" mini-dialog and select a math
operator from the pop-up menu:
.
8. Touch inside the Limit field and enter a value, using the pop-up numeric keypad. This value
takes the dimension of the parameter that you are testing. For example, if you are testing a
time parameter, the unit is seconds.
208 SDA-OM-E Rev H
