SDA Operator’s Manual
The technology that makes this system possible is the ability of two processes in a Windows
system to share a region of memory. This enables the transfer of data at high-speed between the
acquisition software and the custom processing function, which runs in a separate process from
the DSO application. A major benefit of FastWavePort is that your application may be
implemented and, more importantly, debugged independently of the main application.
It is important to note that the transfer of the results of your processing function back into the X-
Stream processing stream is optional. If performance is the primary goal, and display or further
processing of the results within the DSO software is not required, then this may be skipped.
Fast Wave Port Setup - Initial

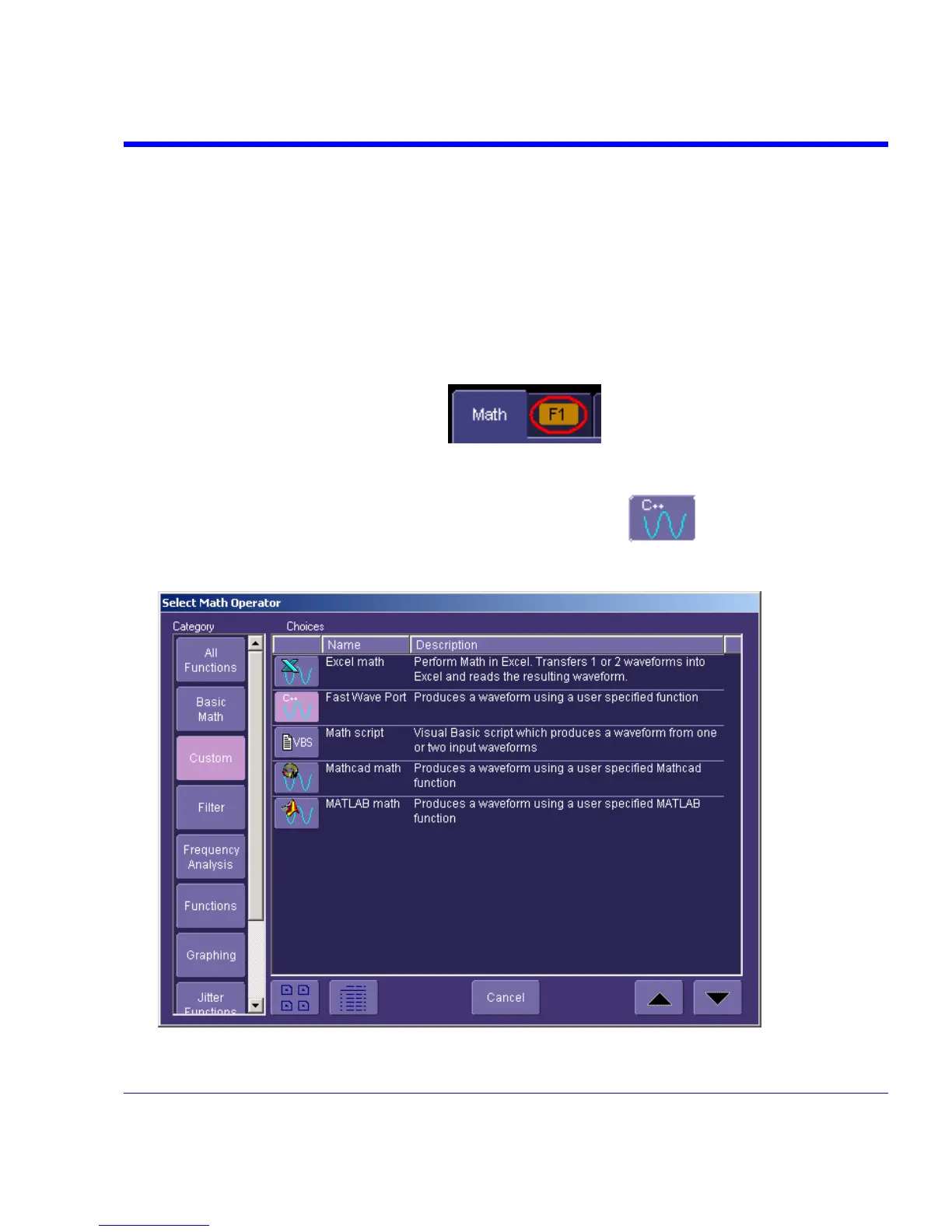

1. In the menu bar, touch Math, then Math Setup... in the drop-down menu.
2. Touch one of the Math function tabs,
for example.
3. Touch inside the "Source1" field, and select a signal source from the pop-up menu. The
source can be a channel waveform, math or memory trace, or a parameter.
4. Touch inside the "Operator"1 field and select FastWavePort
from the Custom
menu:
SDA-OM-E Rev H 189
