totp TotalPopulation

Definition:

Calculates the total population of a histogram between the parameter cursors.

Description:

The count for all populated bins between the parameter cursors is summed.

Example:

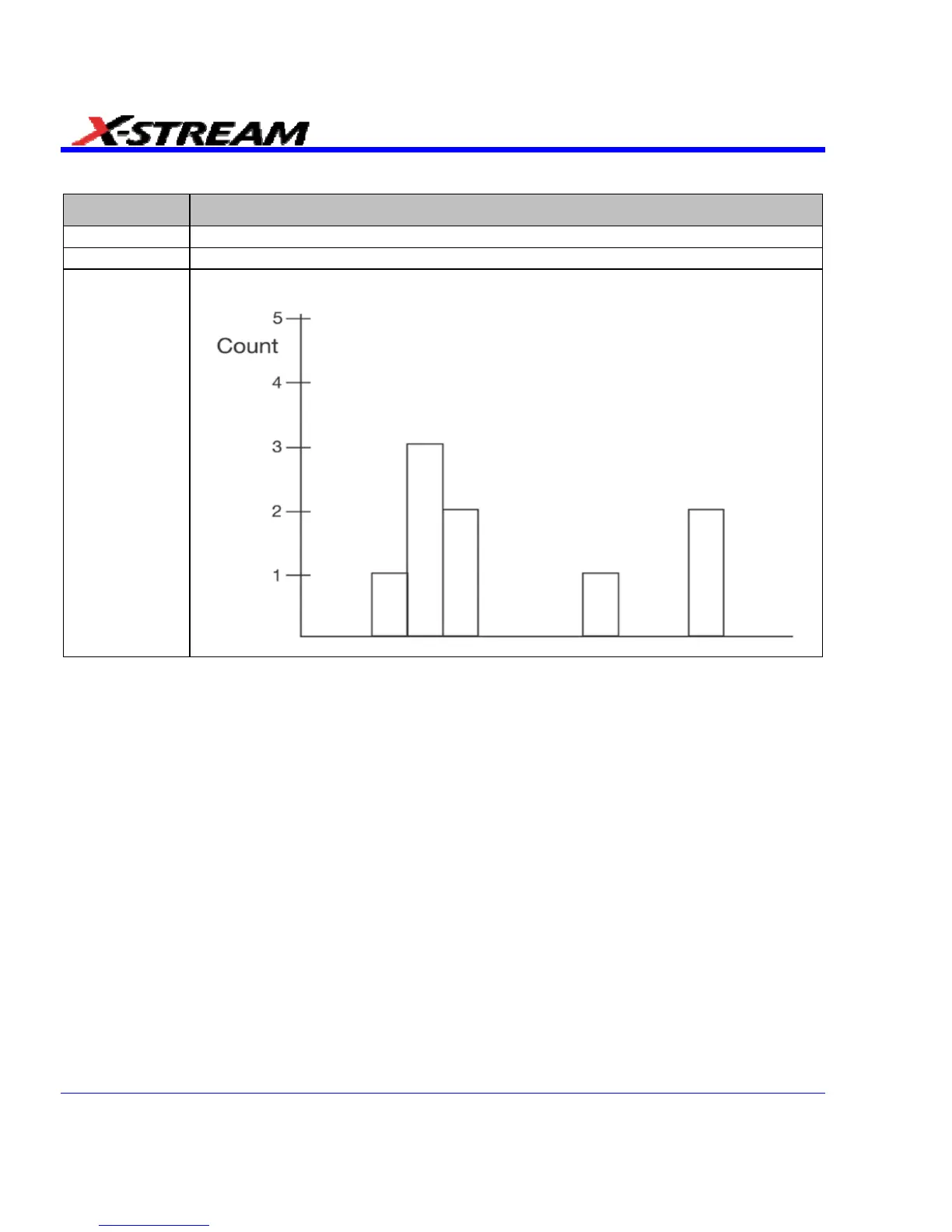

The total population of this histogram is 9.
